Wastewater/Activity/PacpInspection/1.0Jan 13, 2016, 09:08 AM
05 0722_05 0721_20160113_012956_.mp4
- Date
- 01/13/2016
- W/O
- 547108
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00521
- PipeID
- P05945
- Time
- 1:08 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3113
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
- City
- INGLEWOOD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_547108_TV05104_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 05 0722
- Downstream MH
- 05 0721
- Dir. of Survey
- Downstream
- Length Surveyed
- 305.3 ft.
- Total Length
- 305.3 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

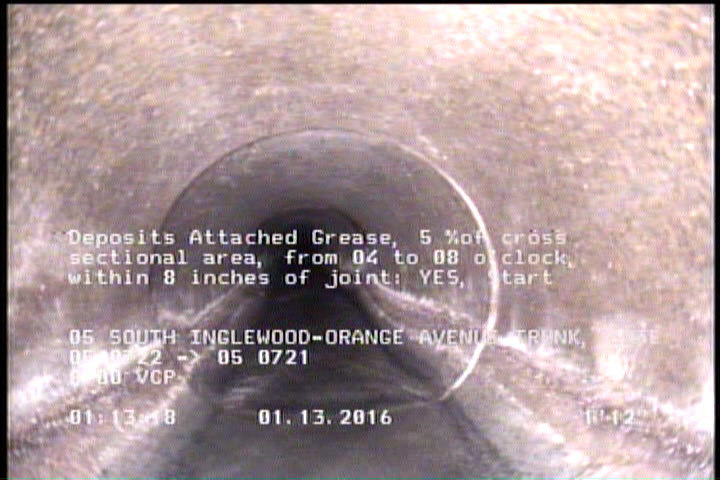

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

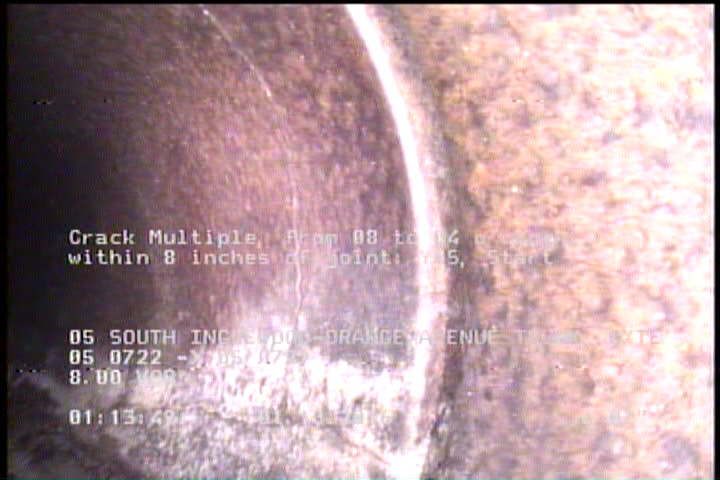

6.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

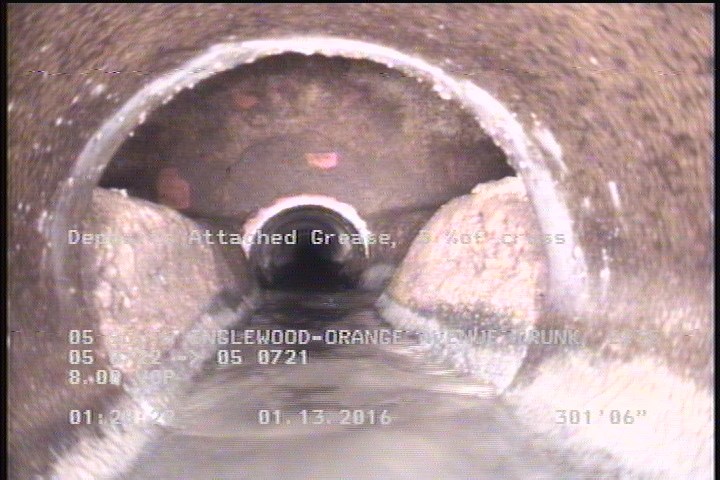

301.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 305.3 | AMH | 05 0721 |
| 301.5 | CM | — |
| 28.5 | TFA | — |
| 6.2 | CM | — |
| 130.3 | TFA | — |
| 0 | MWL | — |
| 283.3 | TFC | — |
| 301.5 | DAGS | — |
| 2 | DAGS | — |
| 181.4 | TFC | — |
| 79.1 | TFA | — |
| 232.1 | TFA | — |
| 0 | AMH | 05 0722 |
| 305.3 | MGO | CONNECTION AT MH 3 OCLOCK |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC224495
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-13T01:08:00-08:00
