Wastewater/Activity/PacpInspection/1.0Jan 13, 2016, 08:46 AM
05 0723_05 0722_20160113_010507_.mp4
- Date
- 01/13/2016
- W/O
- 547108
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00521
- PipeID
- P05946
- Time
- 12:46 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3113
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
- City
- INGLEWOOD, CA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_547108_TV05104_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 05 0723
- Downstream MH
- 05 0722
- Dir. of Survey
- Downstream
- Length Surveyed
- 309.6 ft.
- Total Length
- 309.6 ft.
- Structural Index
- 3
- Structural Quick
- 4132
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (5)

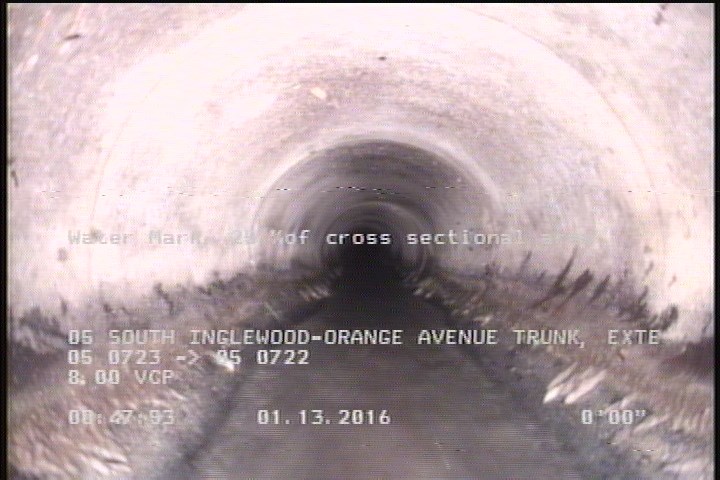

0 ft. - Water Mark, 25 %of cross sectional area

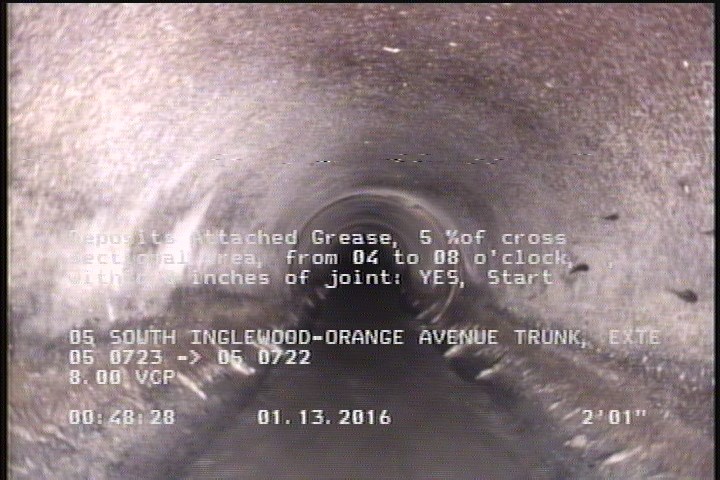

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

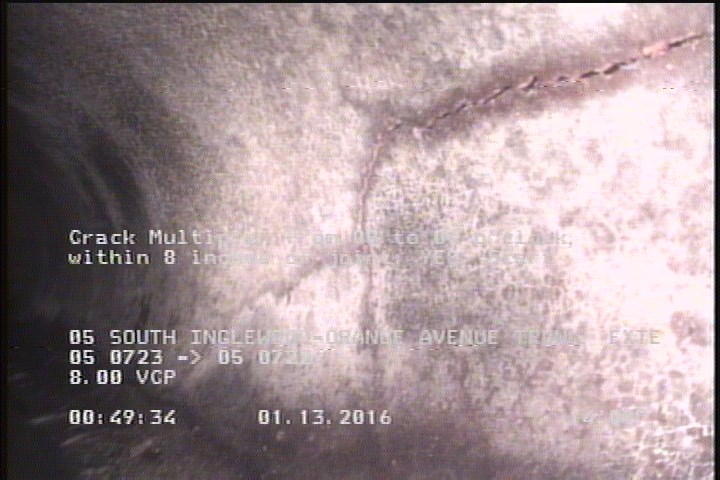

14.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

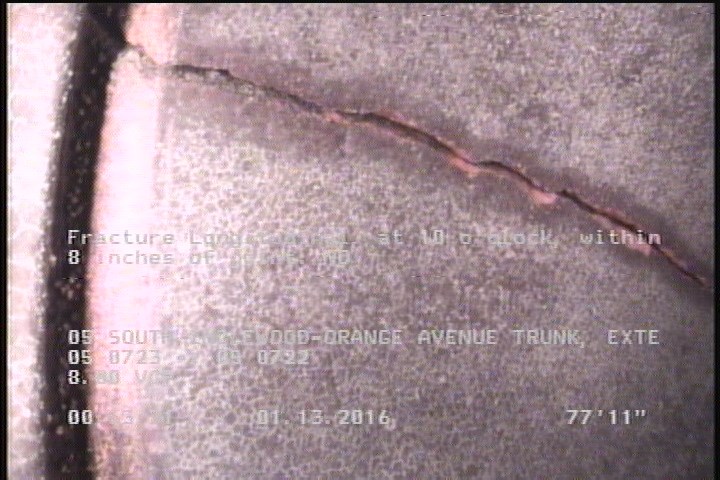

77.9 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: NO

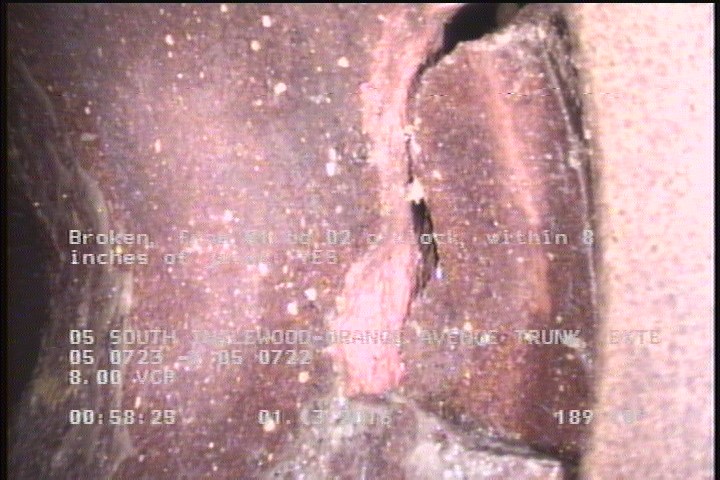

189.8 ft. - Broken, from 01 to 02 o'clock, within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 0723 |
| 2.1 | DAGS | — |
| 142.7 | TFA | — |
| 305.4 | CM | — |
| 245.7 | TFA | — |
| 77.9 | FL | — |
| 43.1 | TFA | — |
| 191 | TFA | — |
| 293.4 | TFA | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 189.8 | B | — |
| 305.4 | DAGS | — |
| 309.6 | AMH | 05 0722 |
| 14.8 | CM | — |
| 91.5 | TF | — |
Properties (4)
- additional_info
- SC224495
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-01-13T00:46:00-08:00
