Wastewater/Activity/PacpInspection/1.0Jan 13, 2016, 10:03 AM
05 0724_05 0723_20160113_022216_.mp4
- Date
- 01/13/2016
- W/O
- 547108
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00521
- PipeID
- P05947
- Time
- 2:03 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3113
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
- City
- INGLEWOOD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_547108_TV05104_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 05 0723
- Downstream MH
- 05 0724
- Dir. of Survey
- Upstream
- Length Surveyed
- 226.8 ft.
- Total Length
- 226.8 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

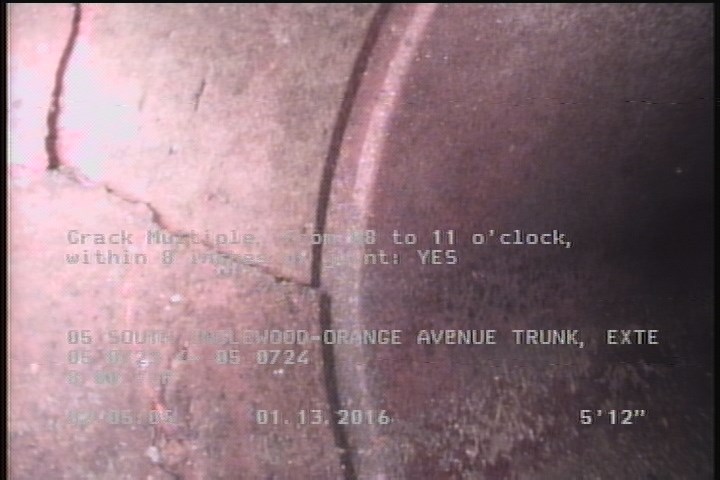

6 ft. - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

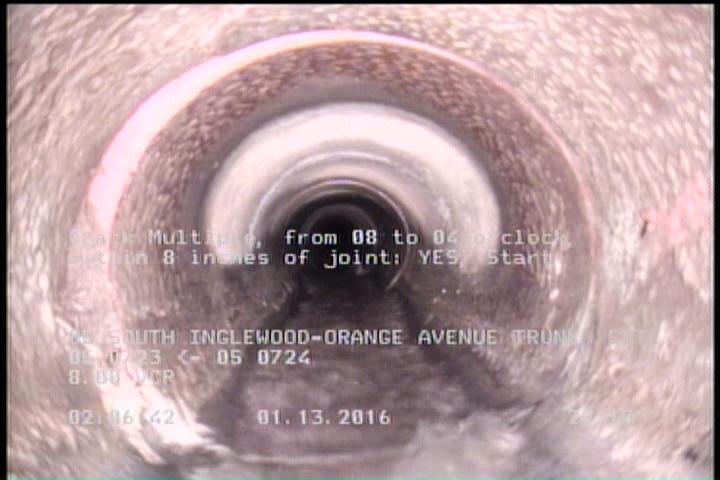

23.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

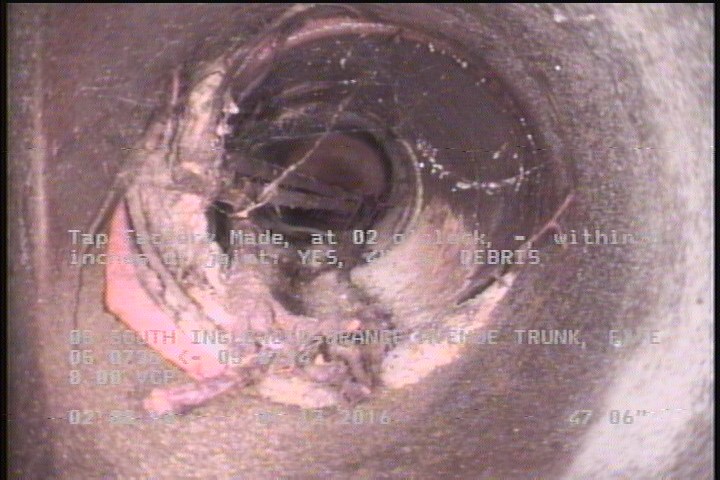

47.5 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - W/ DEBRIS

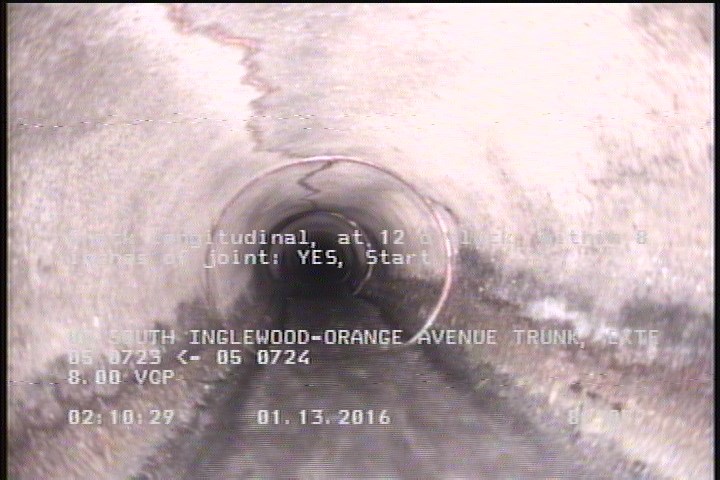

81.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 0723 |
| 11.3 | TFC | — |
| 226.8 | AMH | 05 0724 |
| 23.8 | CM | — |
| 47.5 | TF | W/ DEBRIS |
| 6 | CM | — |
| 131.3 | TFC | — |
| 224.2 | CL | — |
| 81.6 | CL | — |
| 224.2 | CM | — |
| 64.4 | TFC | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC224495
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-13T02:03:00-08:00
