Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 13, 2016, 07:29 AM

  • 05 0725_05 0724_20160112_235637_.mp4

Date
01/12/2016
W/O
547108
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00521
PipeID
P05948
Time
11:29 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3113
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
City
INGLEWOOD, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
07
Purpose
Routine Assessment
Project
WO_547108_TV05104_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 0725
Downstream MH
05 0724
Dir. of Survey
Downstream
Length Surveyed
355.5 ft.
Total Length
355.5 ft.
Structural Index
3
Structural Quick
4131
Structural Rating
9
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 05 0725 to 05 0724
MH: 05 0725MH: 05 0724downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 07250 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK3.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start12.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"59.9 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"66 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"106.3 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"114.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"168.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"196.2 ft. RMC - Roots Medium Connection, at 10 o'clock, 10 %, within 8 inches of joint: YES196.2 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4" - W/ FRACTURE206.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"209.1 ft. FM - Fracture Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES, Start224.4 ft. FM - Fracture Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES, Finish284 ft. MWLS - Water Level, Sag in pipe, 30 %of cross sectional area, Start284.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"298.5 ft. MWLS - Water Level, Sag in pipe, 30 %of cross sectional area, Finish352.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish353.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish355.5 ft. AMH - Downstream Manhole, Survey Ends - 05 0724

Observation photos (5)

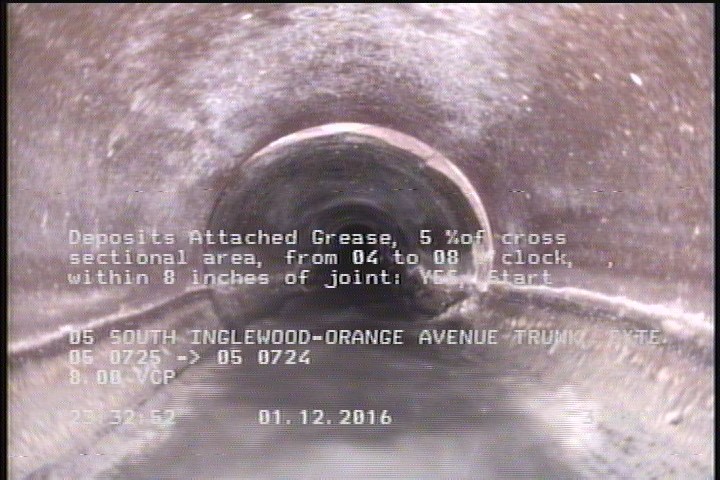

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

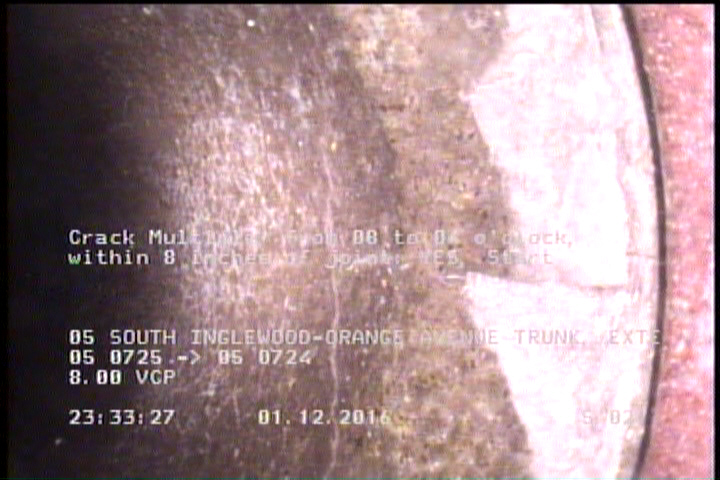

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

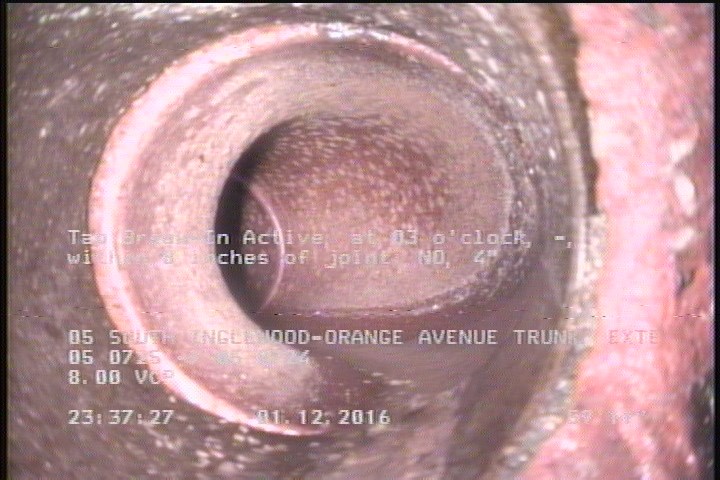

  • Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"

    59.9 ft. - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"

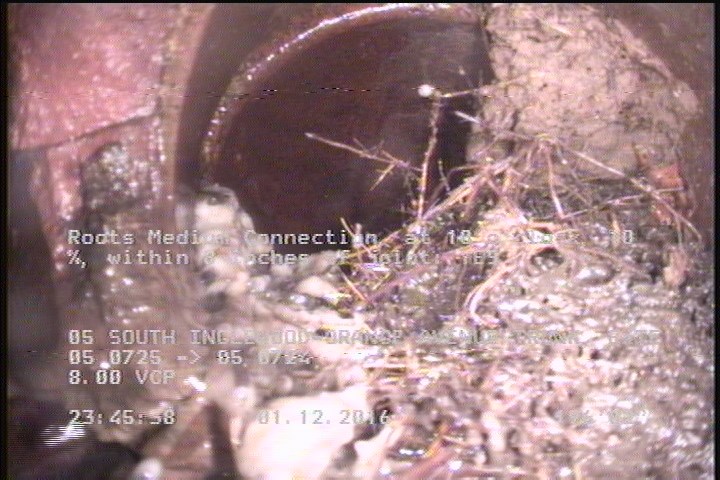

  • Roots Medium Connection, at 10 o'clock, 10 %, within 8 inches of joint: YES

    196.2 ft. - Roots Medium Connection, at 10 o'clock, 10 %, within 8 inches of joint: YES

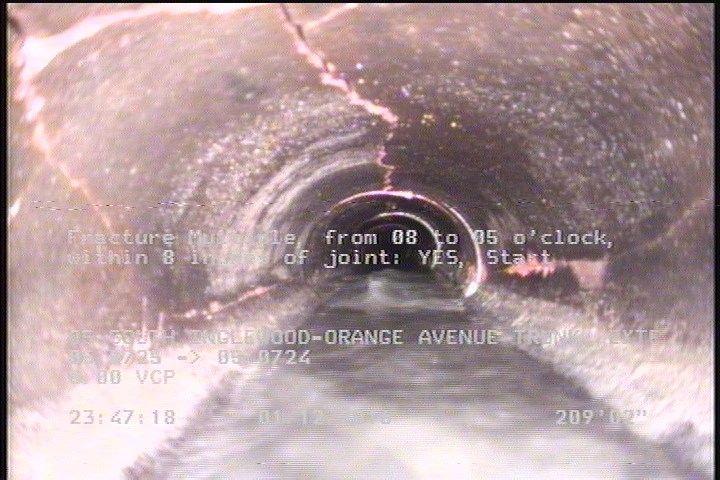

  • Fracture Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES, Start

    209.1 ft. - Fracture Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES, Start

All inspections of P05948Work order 547108

Observations (23)

DistanceCodeObservation
224.4FM—
0MWL—
209.1FM—
298.5MWLS—
196.2RMC—
114.1TFC—
0MWM—
355.5AMH05 0724
5.2CM—
206.9TFC—
352.1CM—
284.8TFA—
66TFC—
106.3TBA—
59.9TBA—
168.1TFC—
0AMH05 0725
3.7DAGS—
353.7DAGS—
12.1TFA—
0MGOCONNECTION AT MH 9 OCLOCK
196.2TBAW/ FRACTURE
284MWLS—

Properties (4)

additional_info
SC224495
custom_field_two
2
customer
LACSD
datetime
2016-01-12T23:29:00-08:00
