Wastewater/Activity/PacpInspection/1.0Jan 13, 2016, 06:48 AM
05 0727_05 0726_20160112_225910_.mp4
- Date
- 01/12/2016
- W/O
- 547108
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00521
- PipeID
- P05950
- Time
- 10:48 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3113
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
- City
- INGLEWOOD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_547108_TV05104_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 05 0727
- Downstream MH
- 05 0726
- Dir. of Survey
- Downstream
- Length Surveyed
- 84.7 ft.
- Total Length
- 84.7 ft.
- Structural Index
- 3
- Structural Quick
- 4131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

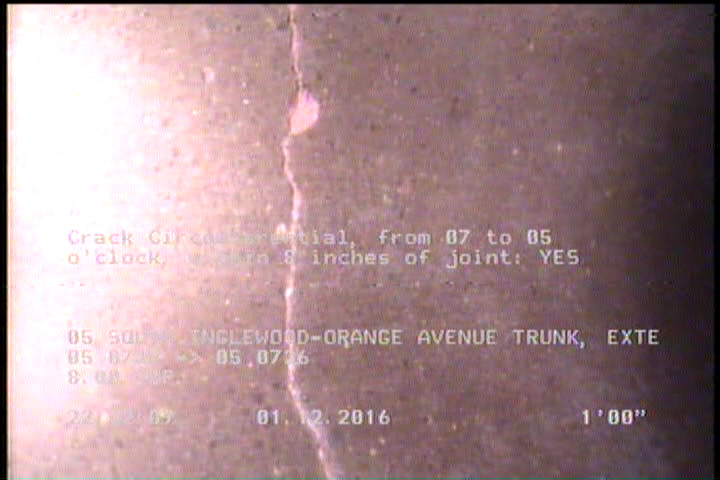

1 ft. - Crack Circumferential, from 07 to 05 o'clock, within 8 inches of joint: YES
7.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

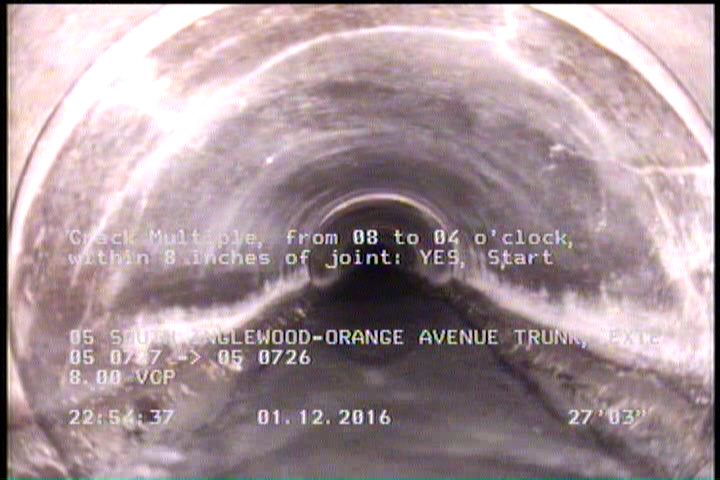

27.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT MH 9 OCLOCK |
| 0 | MWM | — |
| 84.7 | MGO | CONNECTION AT MH 3 OCLOCK |
| 82.1 | CM | — |
| 84.7 | AMH | 05 0726 |
| 0 | AMH | 05 0727 |
| 1 | CC | — |
| 7.1 | FM | — |
| 84.7 | MGO | CONNECTION AT MH 5 OCLOCK |
| 0 | MGO | CONNECTION AT MH 3 OCLOCK |
| 27.2 | CM | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC224495
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-12T22:48:05-08:00
