Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 14, 2016, 06:54 AM

  • 05 0729_05 0728_20160113_231251_.mp4

Date
01/13/2016
W/O
547108
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00521
PipeID
P05952
Time
10:54 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3114
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
City
INGLEWOOD, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
07
Purpose
Routine Assessment
Project
WO_547108_TV05104_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 0729
Downstream MH
05 0728
Dir. of Survey
Downstream
Length Surveyed
326.4 ft.
Total Length
326.4 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
1
O&M Quick
2112
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 05 0729 to 05 0728
MH: 05 0729MH: 05 0728downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 07290 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK3.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start36 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"37.8 ft. RFJ - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: NO60.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish189.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"268.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"295.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"314.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"320.4 ft. RFJ - Roots Fine Joint, from 04 to 08 o'clock, within 8 inches of joint: YES320.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES323.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish326.4 ft. AMH - Downstream Manhole, Survey Ends - 05 0728

Observation photos (3)

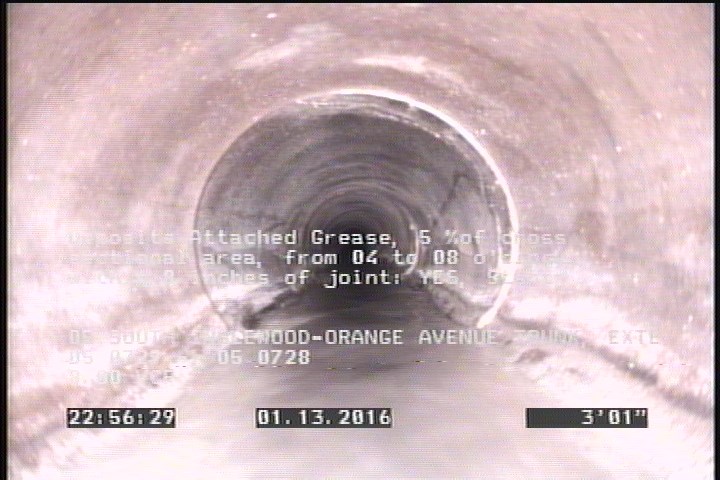

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

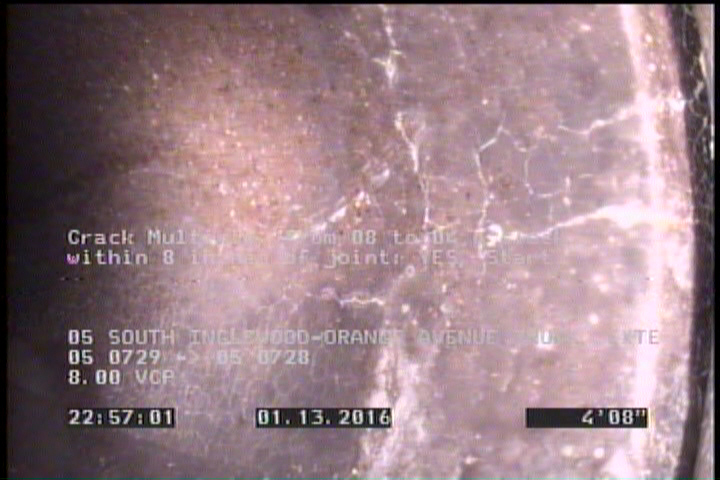

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

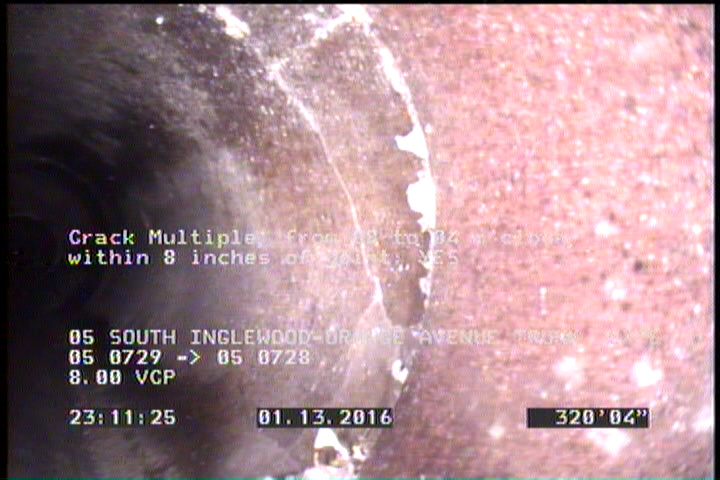

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    320.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P05952Work order 547108

Observations (18)

DistanceCodeObservation
3.1DAGS—
323.6DAGS—
314.4TFA—
0AMH05 0729
189.8TFA—
326.4AMH05 0728
268.9TFA—
295.6TFA—
320.4RFJ—
0MWM—
0MGOCONNECTION AT MH 9 OCLOCK
320.4CM—
60.7CM—
4.7CM—
37.8RFJ—
0MWL—
0MGOCONNECTION AT MH 3 OCLOCK
36TBA—

Properties (4)

additional_info
SC224496
custom_field_two
3
customer
LACSD
datetime
2016-01-13T22:54:00-08:00
