Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 14, 2016, 06:32 AM

  • 05 0730_05 0729_20160113_225025_.mp4

Date
01/13/2016
W/O
547108
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00521
PipeID
P05953
Time
10:32 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3114
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
City
INGLEWOOD, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
07
Purpose
Routine Assessment
Project
WO_547108_TV05104_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 0730
Downstream MH
05 0729
Dir. of Survey
Downstream
Length Surveyed
78.5 ft.
Total Length
78.5 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 05 0730 to 05 0729
MH: 05 0730MH: 05 0729downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 07300 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK0 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start73.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish75.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish78.5 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK78.5 ft. AMH - Downstream Manhole, Survey Ends - 05 072978.5 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK

Observation photos (2)

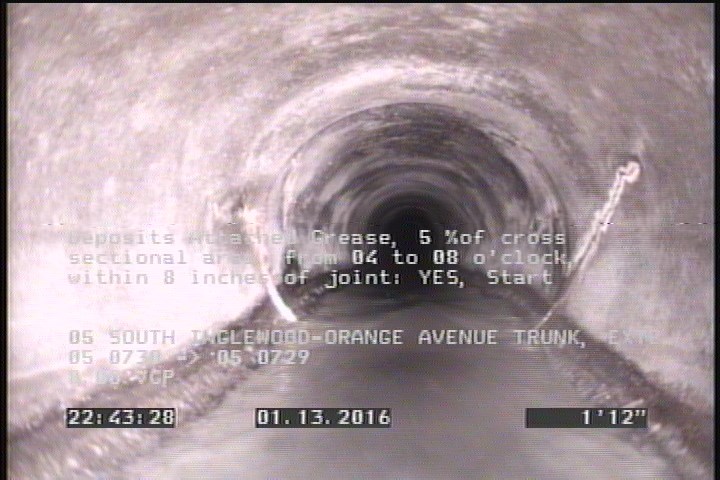

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

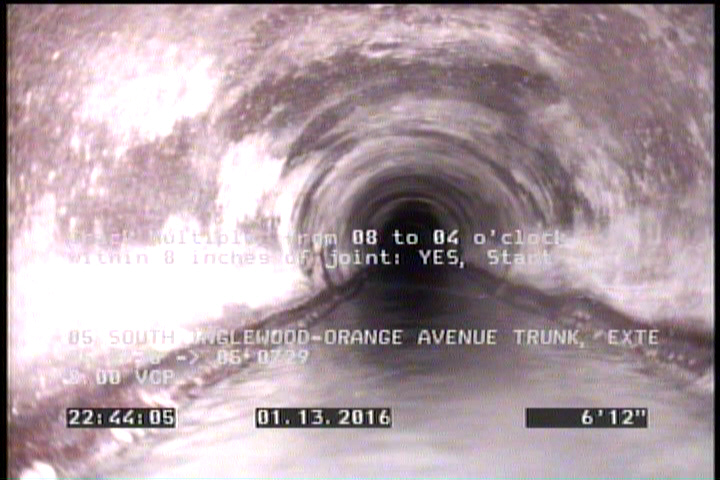

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P05953Work order 547108

Observations (12)

DistanceCodeObservation
78.5MGOCONNECTION AT MH 3 OCLOCK
0AMH05 0730
7CM—
73.3CM—
78.5AMH05 0729
75.1DAGS—
0MGOCONNECTION AT MH 3 OCLOCK
0MGOCONNECTION AT MH 9 OCLOCK
78.5MGOCONNECTION AT MH 9 OCLOCK
2DAGS—
0MWM—
0MWL—

Properties (4)

additional_info
SC224496
custom_field_two
3
customer
LACSD
datetime
2016-01-13T22:32:05-08:00
