Wastewater/Activity/PacpInspection/1.0Jan 14, 2016, 10:47 AM
05 0713_05 0752_20160114_025916_.mp4
- Date
- 01/14/2016
- W/O
- 547108
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00521
- PipeID
- P05978
- Time
- 2:47 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3114
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
- City
- INGLEWOOD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_547108_TV05104_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 05 0752
- Downstream MH
- 05 0713
- Dir. of Survey
- Upstream
- Length Surveyed
- 341.8 ft.
- Total Length
- 341.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

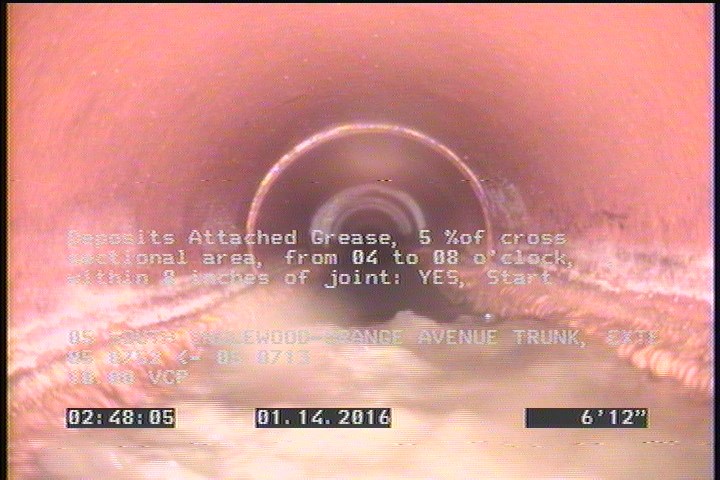

7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 341.8 | MGO | CONNECTION AT MH 9 OCLOCK |
| 0 | MWM | — |
| 341.8 | AMH | 05 0713 |
| 0 | AMH | 05 0752 |
| 0 | MWL | — |
| 340.1 | DAGS | — |
| 7 | DAGS | — |
| 341.8 | MGO | CONNECTION AT MH 9 OCLOCK |
Properties (4)
- additional_info
- SC224496
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-01-14T02:47:00-08:00
