Wastewater/Activity/PacpInspection/1.0Feb 3, 2016, 08:05 AM
32 1089_32 1088_03022016_000604.mp4
- Date
- 02/03/2016
- W/O
- 547105
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19538
- Time
- 12:05 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3091
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_547105_TV32026_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 32 1088
- Downstream MH
- 32 1089
- Dir. of Survey
- Upstream
- Length Surveyed
- 272.9 ft.
- Total Length
- 272.9 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 112
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 115
Observation photos (3)

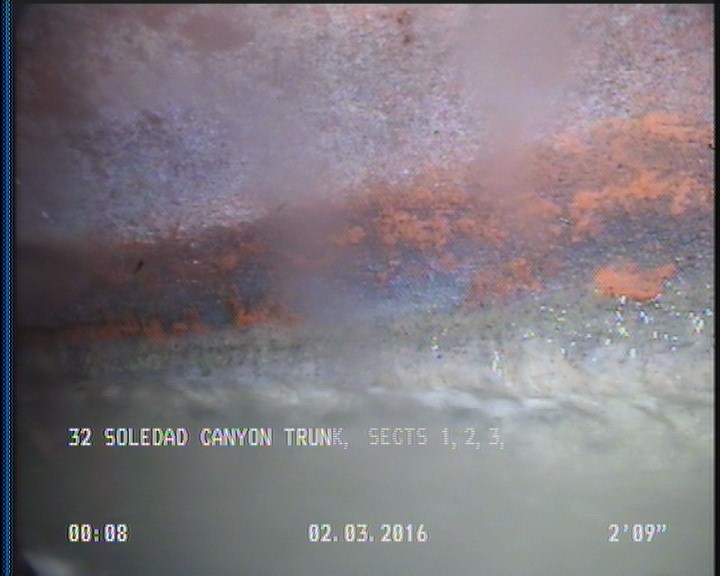

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

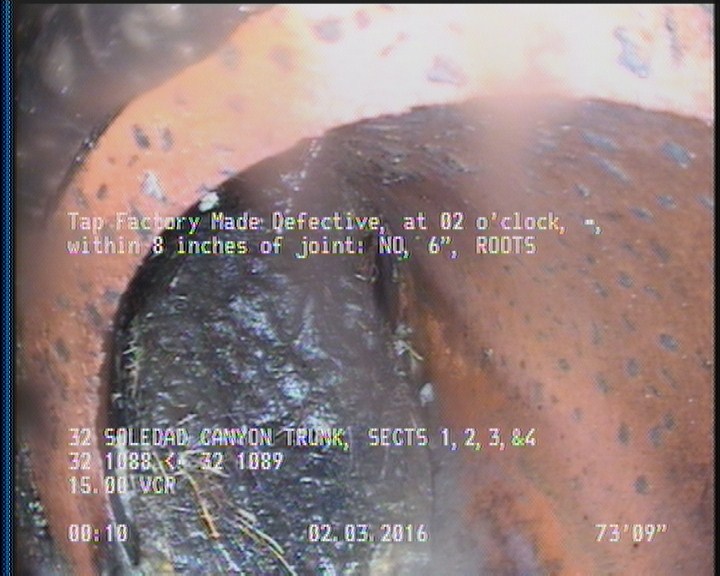

73.7 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS

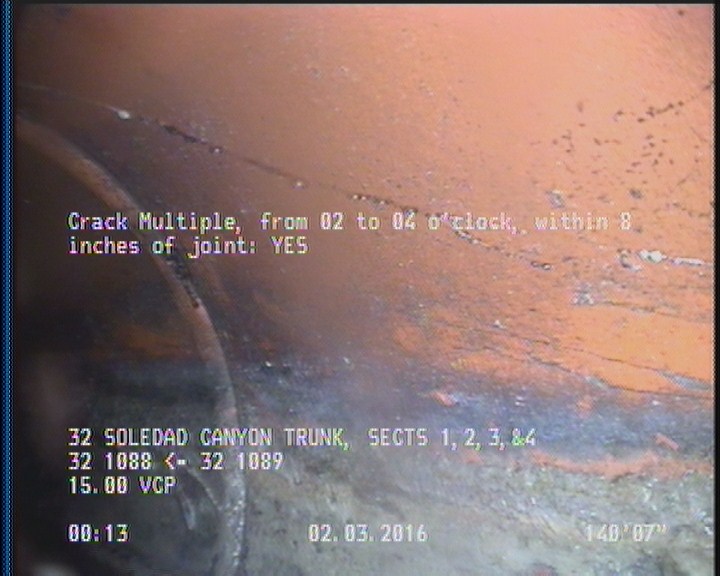

140.6 ft. - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 32 1088 |
| 219.3 | TFA | — |
| 243.4 | TFC | — |
| 140.6 | CM | — |
| 0 | MWM | — |
| 271.4 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
| 272.9 | AMH | 32 1089 |
| 128.2 | TFA | — |
| 73.7 | TFD | ROOTS |
| 0 | MWL | — |
| 272.5 | MGO | ACTIVE CONNECTION AT MH 12 O'CLOCK |
| 55.3 | TFC | — |
| 146.8 | TFD | ROOTS |
Properties (5)
- additional_info
- SC225469
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-03T00:05:47-08:00
- sewer_category
- GRAVITY
