Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 3, 2016, 09:06 AM

  • 32 1084_32 1083_03022016_010826.mp4

Date
02/03/2016
W/O
547105
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P19533
Time
1:06 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3091
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
06
Purpose
Routine Assessment
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
32 1083
Downstream MH
32 1084
Dir. of Survey
Upstream
Length Surveyed
195.6 ft.
Total Length
195.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2G00
O&M Rating
76
Overall Index
2
Overall Quick
—
Overall Rating
76
Pipe schematic from manhole 32 1083 to 32 1084
MH: 32 1083MH: 32 1084upstream0 ft. AMH - Upstream Manhole, Survey Ends - 32 10841.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish26.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"56.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"93.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"129.1 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"147.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"190.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"193.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start195.6 ft. AMH - Downstream Manhole, Survey Begins - 32 1083195.6 ft. MWM - Water Mark, 30 %of cross sectional area195.6 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (1)

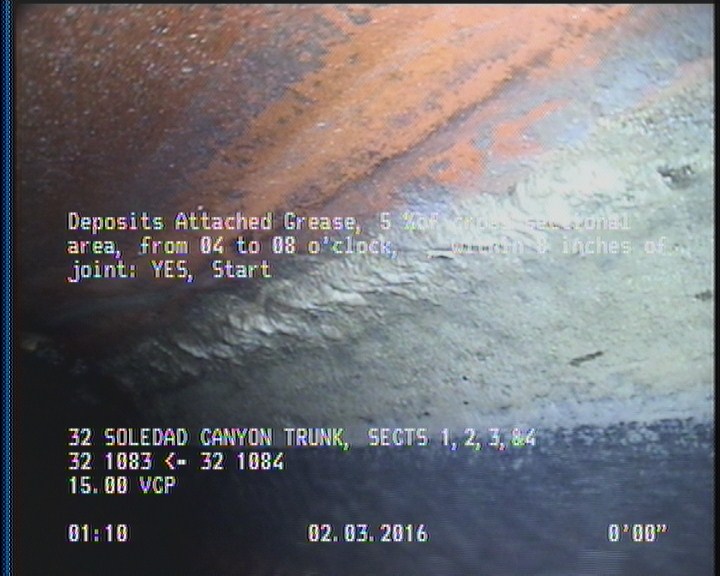

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P19533Work order 547105

Observations (12)

DistanceCodeObservation
139.1TFA—
194.1DAGS—
195.6AMH32 1084
2DAGS—
66.5TFA—
0AMH32 1083
0MWM—
0MWL—
169.3TFA—
5.3TFA—
47.9TFA—
102.5TFA—

Properties (5)

additional_info
SC225469
custom_field_two
4
customer
LACSD
datetime
2016-02-03T01:06:40-08:00
sewer_category
GRAVITY
