Wastewater/Activity/PacpInspection/1.0Feb 2, 2016, 07:35 AM
32 1096A_32 1096_01022016_233557.mp4
- Date
- 02/01/2016
- W/O
- 547105
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19546
- Time
- 11:35 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3090
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_547105_TV32026_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 32 1096A
- Downstream MH
- 32 1096
- Dir. of Survey
- Downstream
- Length Surveyed
- 105.9 ft.
- Total Length
- 105.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 42
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 42
Observation photos (1)

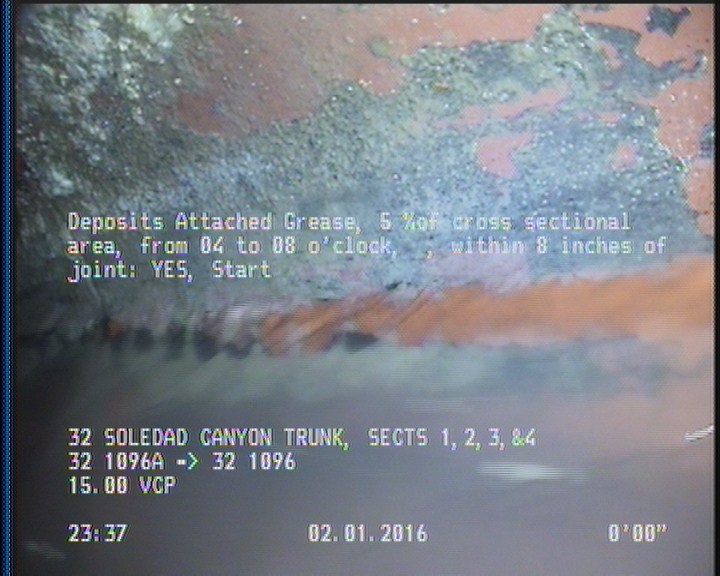

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 3.1 | TFC | — |
| 103.6 | DAGS | — |
| 105.9 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 64.1 | TFC | — |
| 0 | MWM | — |
| 0 | DAGS | — |
| 0 | AMH | 32 1096A, LATERAL |
| 75.8 | TFA | — |
| 105.9 | AMH | 32 1096 |
Properties (5)
- additional_info
- SC225468
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-01T23:35:19-08:00
- sewer_category
- GRAVITY
