Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 2, 2016, 07:16 AM

  • 32 1097_32 1096A_01022016_231647.mp4

Date
02/01/2016
W/O
547105
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P20835
Time
11:16 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3090
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
06
Purpose
Routine Assessment
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
32 1097
Downstream MH
32 1096A
Dir. of Survey
Downstream
Length Surveyed
225.3 ft.
Total Length
225.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2H00
O&M Rating
90
Overall Index
2
Overall Quick
—
Overall Rating
90
Pipe schematic from manhole 32 1097 to 32 1096A
MH: 32 1097MH: 32 1096Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 32 10970 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start22 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"26.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"62.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"93.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"160.8 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"166.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"201.2 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 6"224.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"225.3 ft. AMH - Downstream Manhole, Survey Ends - 32 1096A, LATERAL225.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (2)

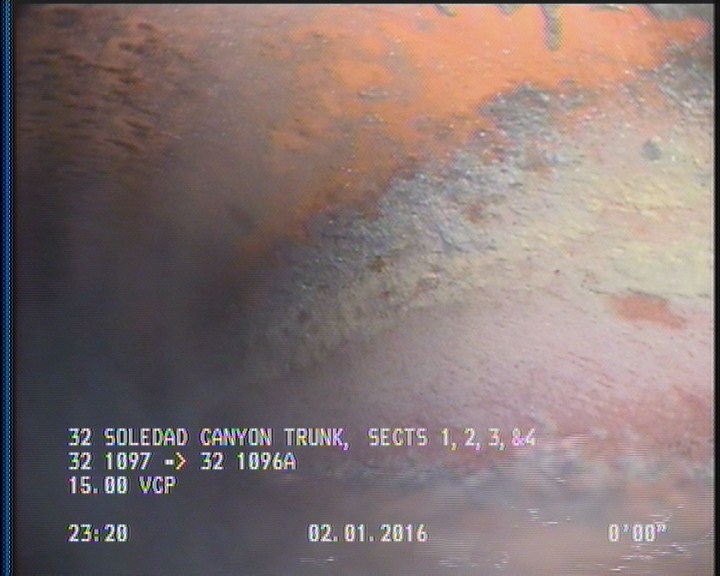

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

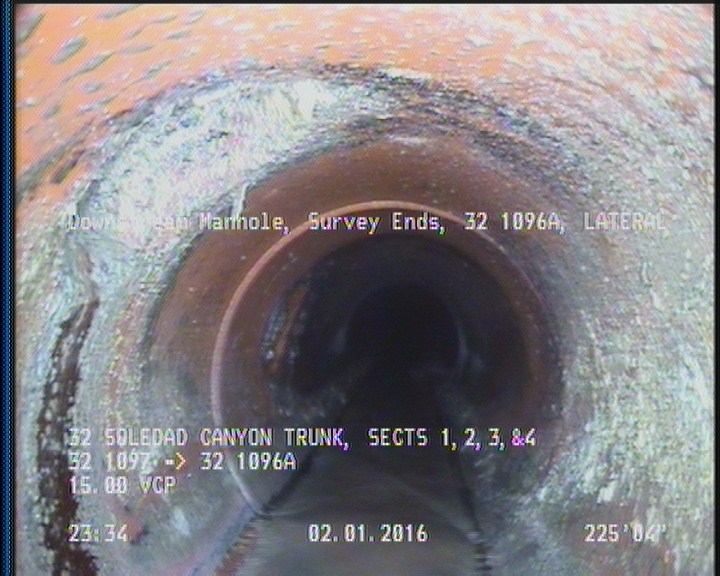

  • Downstream Manhole, Survey Ends - 32 1096A, LATERAL

    225.3 ft. - Downstream Manhole, Survey Ends - 32 1096A, LATERAL

All inspections of P20835Work order 547105

Observations (14)

DistanceCodeObservation
201.2TB—
0AMH32 1097
166.8TFC—
93.4TFC—
2DAGS—
0MWL—
225.3AMH32 1096A, LATERAL
160.8TFC—
0MWM—
22TBA—
224.7TFA—
62.8TFC—
26.2TFC—
225.3DAGS—

Properties (5)

additional_info
SC225468
custom_field_two
4
customer
LACSD
datetime
2016-02-01T23:16:20-08:00
sewer_category
GRAVITY
