Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 1, 2016, 12:30 PM

  • 32 1065_32 1064_01022016_043102.mp4

Date
02/01/2016
W/O
547105
Weather
Light Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P19513
Time
4:30 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3089
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
05
Purpose
Routine Assessment
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
32 1064
Downstream MH
32 1065
Dir. of Survey
Upstream
Length Surveyed
291.9 ft.
Total Length
291.9 ft.
Structural Index
2
Structural Quick
2400
Structural Rating
8
O&M Index
2
O&M Quick
2K00
O&M Rating
116
Overall Index
2
Overall Quick
—
Overall Rating
124
Pipe schematic from manhole 32 1064 to 32 1065
MH: 32 1064MH: 32 1065upstream0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 32 10650 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK19.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"27.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"60.1 ft. CS - Crack Spiral, from 12 to 05 o'clock, within 8 inches of joint: YES81.8 ft. CS - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: NO91.5 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"97.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"113.4 ft. CS - Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES165 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"172.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"183.9 ft. CS - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES246.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"249.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"289.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start291.9 ft. AMH - Downstream Manhole, Survey Begins - 32 1064291.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK291.9 ft. MWM - Water Mark, 30 %of cross sectional area291.9 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (5)

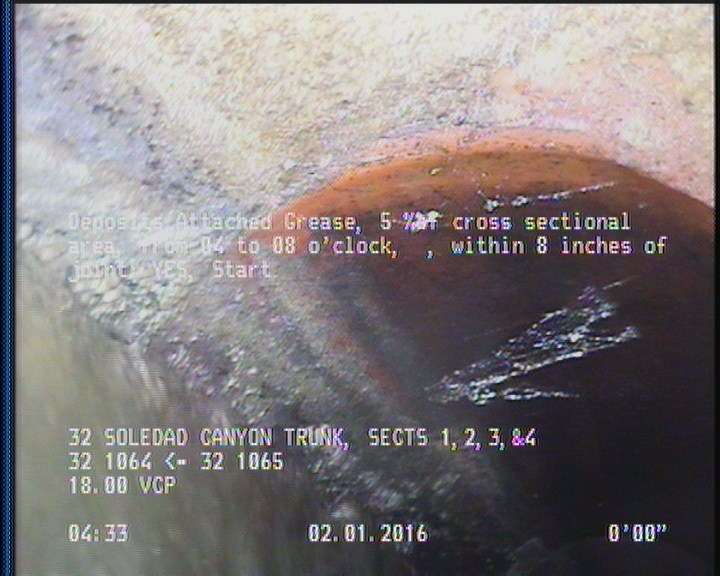

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

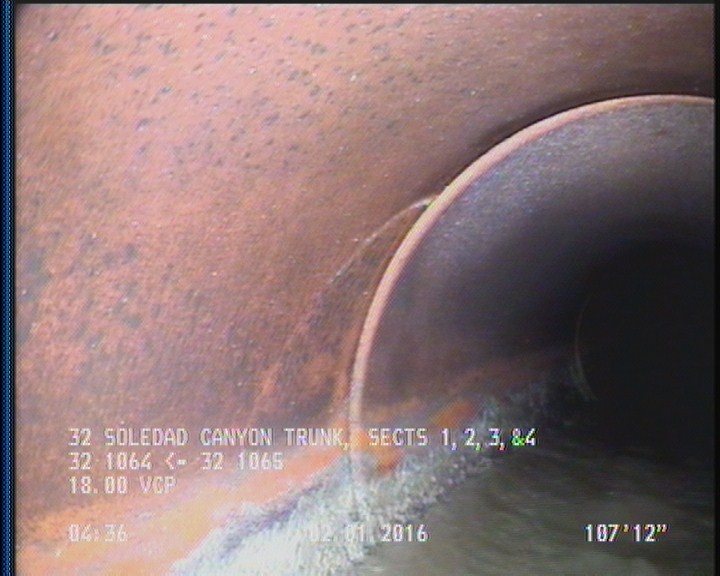

  • Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES

    108 ft. - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES

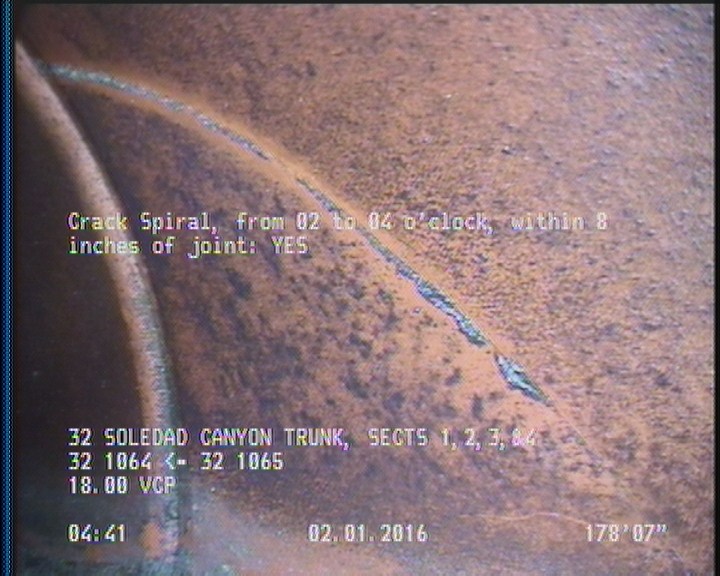

  • Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

    178.5 ft. - Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

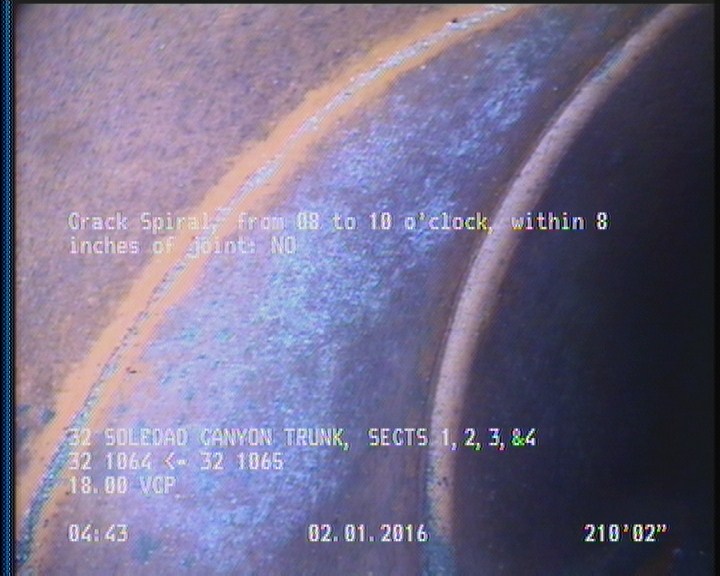

  • Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: NO

    210.1 ft. - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: NO

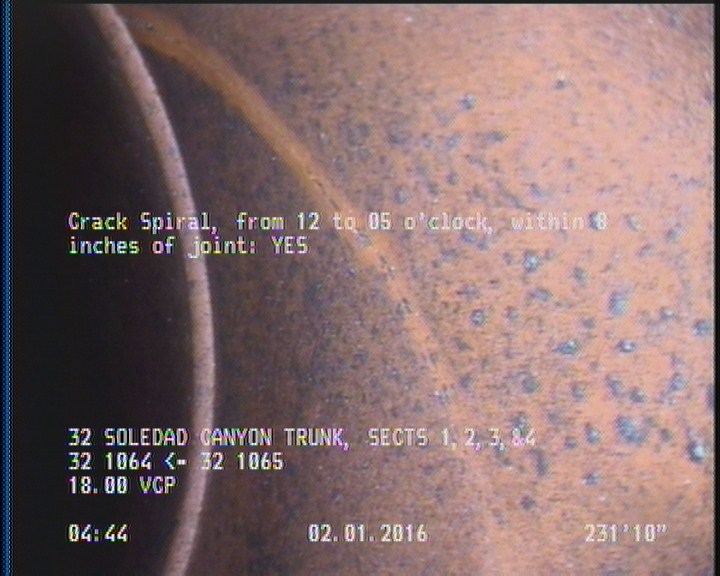

  • Crack Spiral, from 12 to 05 o'clock, within 8 inches of joint: YES

    231.8 ft. - Crack Spiral, from 12 to 05 o'clock, within 8 inches of joint: YES

All inspections of P19513Work order 547105

Observations (20)

DistanceCodeObservation
0AMH32 1064
200.4TFC—
2DAGS—
42.1TFC—
178.5CS—
194.1TFC—
291.9DAGS—
126.9TFC—
45.4TFC—
231.8CS—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
264.7TFC—
0MWM—
119.1TFC—
210.1CS—
291.9AMH32 1065
272.2TFC—
0MWL—
291.9MGOACTIVE CONNECTION AT MH 9 O'CLOCK
108CS—

Properties (5)

additional_info
SC225467
custom_field_two
3
customer
LACSD
datetime
2016-02-01T04:30:22-08:00
sewer_category
GRAVITY
