Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 3, 2016, 08:48 AM

  • 32 1082_32 1081_03022016_004900.mp4

Date
02/03/2016
W/O
547105
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P19531
Time
12:48 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3091
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
06
Purpose
Routine Assessment
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
32 1082
Downstream MH
32 1081
Dir. of Survey
Downstream
Length Surveyed
321.3 ft.
Total Length
321.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2L00
O&M Rating
128
Overall Index
2
Overall Quick
—
Overall Rating
128
Pipe schematic from manhole 32 1082 to 32 1081
MH: 32 1082MH: 32 1081downstream0 ft. AMH - Upstream Manhole, Survey Begins - 32 10820 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start3.8 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"72.1 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"273.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"280.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"320.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish321.3 ft. AMH - Downstream Manhole, Survey Ends - 32 1081321.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 1 O'CLOCK

Observation photos (1)

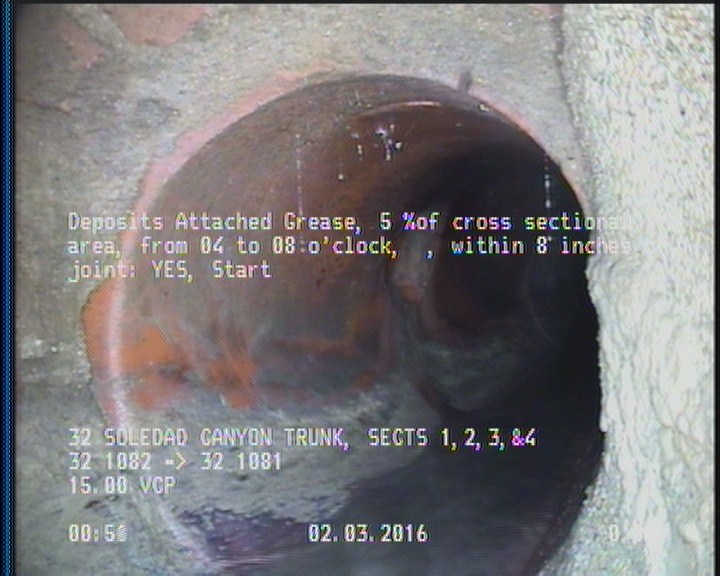

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P19531Work order 547105

Observations (11)

DistanceCodeObservation
280.2TFA—
0AMH32 1082
273.7TFC—
321.3AMH32 1081
72.1TBA—
2DAGS—
0MWM—
3.8TBA—
321.3MGOACTIVE CONNECTION AT MH 1 O'CLOCK
320.7DAGS—
0MWL—

Properties (5)

additional_info
SC225469
custom_field_two
4
customer
LACSD
datetime
2016-02-03T00:48:41-08:00
sewer_category
GRAVITY
