Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 3, 2016, 07:46 AM

  • 32 1088_32 1087_02022016_235027.mp4

Date
02/02/2016
W/O
547105
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P19537
Time
11:46 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3091
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
06
Purpose
Routine Assessment
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
32 1087
Downstream MH
32 1088
Dir. of Survey
Upstream
Length Surveyed
333.1 ft.
Total Length
333.1 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2L00
O&M Rating
134
Overall Index
2
Overall Quick
—
Overall Rating
137
Pipe schematic from manhole 32 1087 to 32 1088
MH: 32 1087MH: 32 1088upstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 32 10881.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish5.4 ft. CM - Crack Multiple, from 04 to 08 o'clock, within 8 inches of joint: YES28.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"77.7 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"114.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"150.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"156.8 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"199.3 ft. TFD - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS217.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"231.2 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"266.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"316.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"331.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start333.1 ft. MWM - Water Mark, 35 %of cross sectional area333.1 ft. MWL - Water Level, 20 %of cross sectional area333.1 ft. AMH - Downstream Manhole, Survey Begins - 32 1087

Observation photos (3)

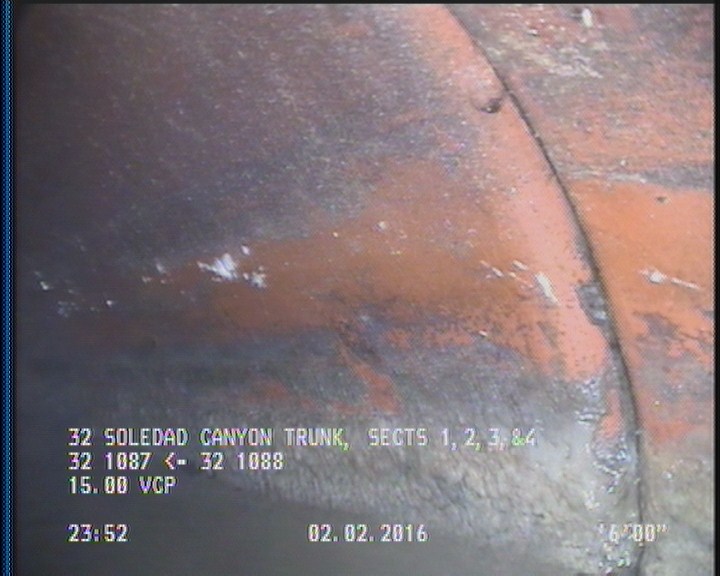

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

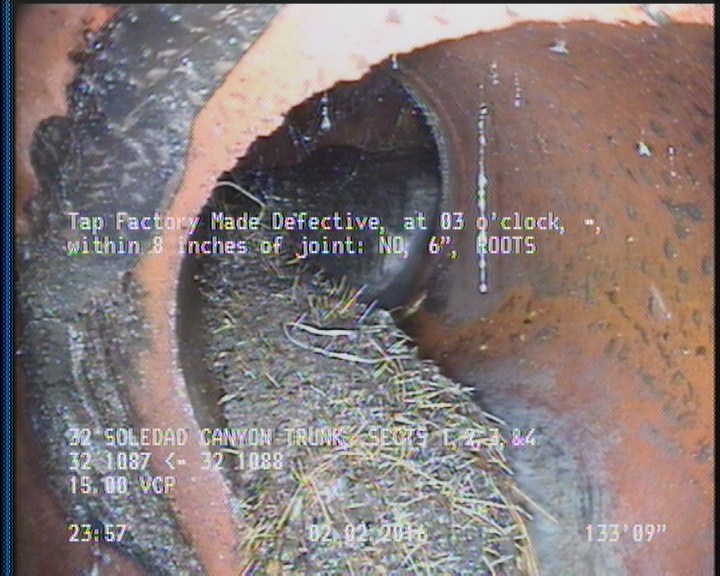

  • Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS

    133.8 ft. - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS

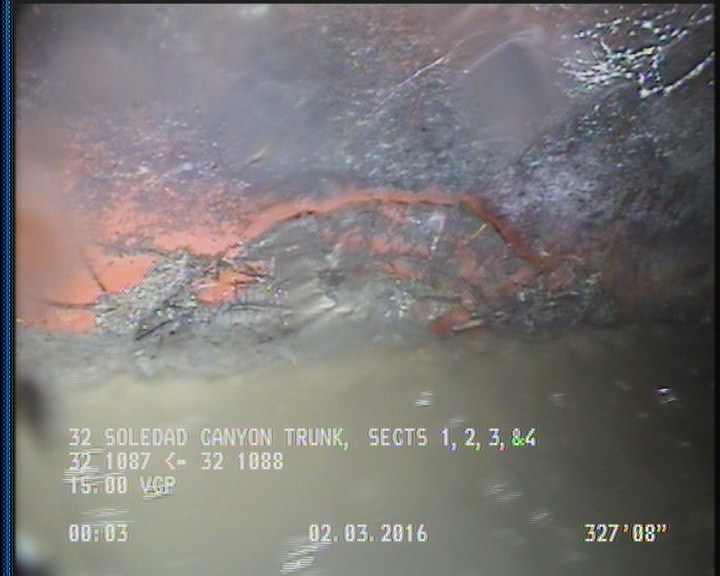

  • Crack Multiple, from 04 to 08 o'clock, within 8 inches of joint: YES

    327.7 ft. - Crack Multiple, from 04 to 08 o'clock, within 8 inches of joint: YES

All inspections of P19537Work order 547105

Observations (19)

DistanceCodeObservation
101.9TBA—
17TFA—
333.1MGOACTIVE CONNECTION AT MH 9 O'CLOCK
304.3TF—
66.4TFA—
115.7TFC—
327.7CM—
333.1MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MWM—
0MWL—
0AMH32 1087
133.8TFDROOTS
182.7TFA—
333.1AMH32 1088
331.6DAGS—
2DAGS—
218.9TFC—
176.3TBA—
255.4TFC—

Properties (5)

additional_info
SC225469
custom_field_two
4
customer
LACSD
datetime
2016-02-02T23:46:49-08:00
sewer_category
GRAVITY
