Wastewater/Activity/PacpInspection/1.0Feb 3, 2016, 11:02 AM
32 1078_32 1077_03022016_031359.mp4
- Date
- 02/03/2016
- W/O
- 547105
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19527
- Time
- 3:02 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3091
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_547105_TV32026_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 32 1078
- Downstream MH
- 32 1077
- Dir. of Survey
- Downstream
- Length Surveyed
- 51.8 ft.
- Total Length
- 51.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 20
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 23
Observation photos (2)

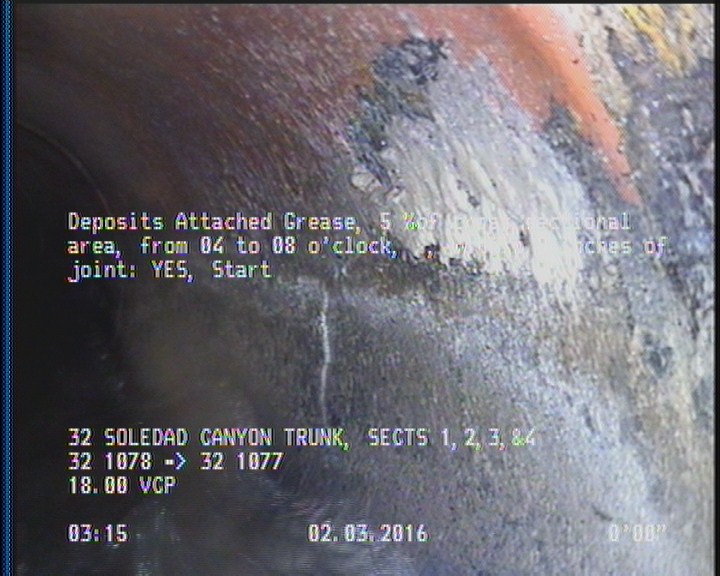

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

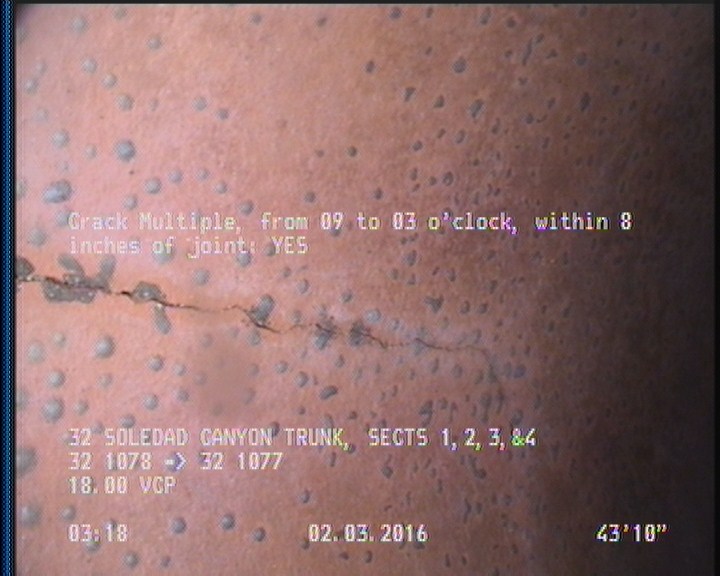

43.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 32 1078 |
| 27.8 | TFC | — |
| 0 | MWL | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 51.8 | AMH | 32 1077 |
| 51.8 | MGO | CAPPED CONNECTION AT MH 1 O'CLOCK |
| 50.2 | DAGS | — |
| 43.8 | CM | — |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC225469
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-03T03:02:01-08:00
- sewer_category
- GRAVITY
