Wastewater/Activity/PacpInspection/1.0Feb 2, 2016, 08:50 AM
32 1098_32 1097_02022016_005131.mp4
- Date
- 02/02/2016
- W/O
- 547105
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19547
- Time
- 12:50 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3090
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_547105_TV32026_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 32 1097
- Downstream MH
- 32 1098
- Dir. of Survey
- Upstream
- Length Surveyed
- 345.1 ft.
- Total Length
- 345.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 138
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 141
Observation photos (3)

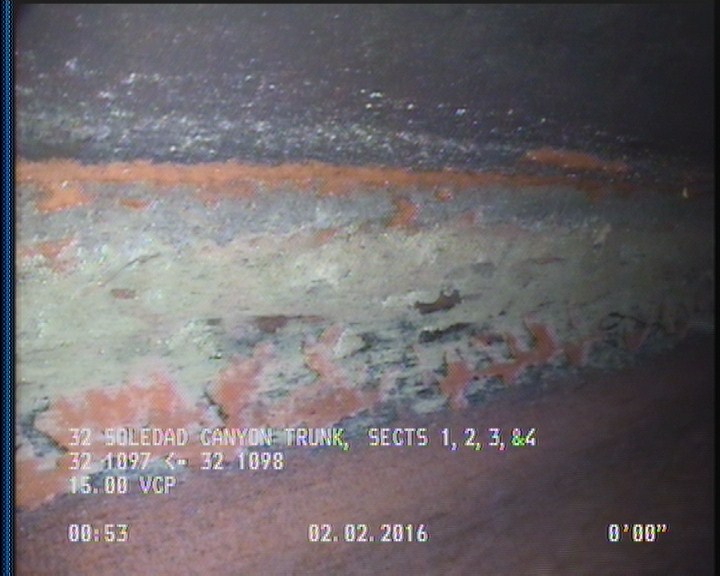

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

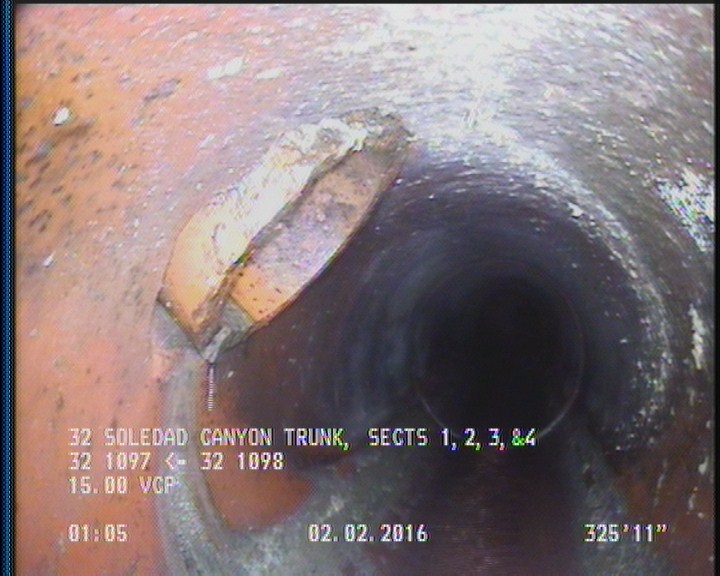

325.9 ft. - Tap Break-In Intruding, at 10 o'clock, -, #v, within 8 inches of joint: NO, 6", 1"

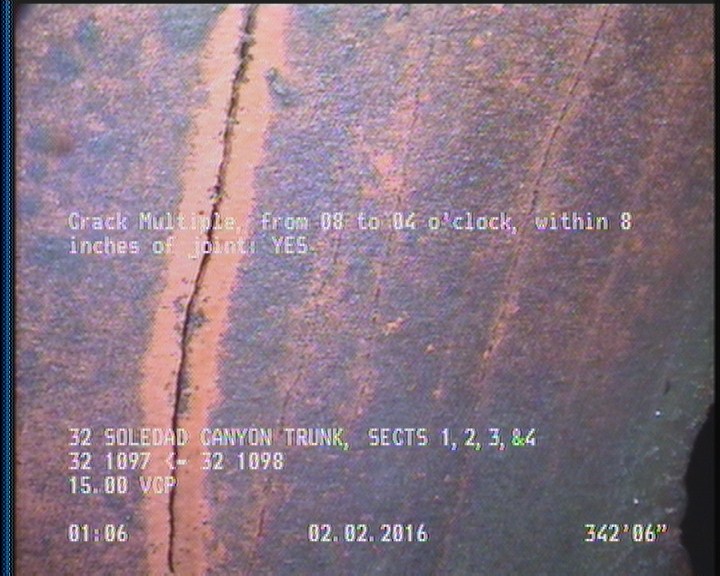

342.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 302.1 | TBA | — |
| 345.1 | AMH | 32 1098 |
| 0 | AMH | 32 1097 |
| 342.5 | CM | — |
| 286.1 | TBA | — |
| 186.4 | TBA | — |
| 176 | TFC | — |
| 325.9 | TBI | — |
| 2 | DAGS | — |
| 243.2 | TFC | — |
| 291.9 | TFC | — |
| 0 | MWM | — |
| 343.1 | DAGS | — |
Properties (5)
- additional_info
- SC225468
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-02T00:50:20-08:00
- sewer_category
- GRAVITY
