Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 29, 2016, 10:01 AM

  • 32 1072_32 1071_29012016_020312.mp4

Date
01/29/2016
W/O
547105
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P19520
Time
2:01 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3088
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
06
Purpose
Routine Assessment
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
32 1072
Downstream MH
32 1071
Dir. of Survey
Downstream
Length Surveyed
151.1 ft.
Total Length
151.1 ft.
Structural Index
3
Structural Quick
4121
Structural Rating
6
O&M Index
2
O&M Quick
312E
O&M Rating
64
Overall Index
2
Overall Quick
—
Overall Rating
70
Pipe schematic from manhole 32 1072 to 32 1071
MH: 32 1072MH: 32 1071downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 32 10722 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4.1 ft. FM - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES6.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"78.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"83.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"101.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES102.7 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"102.7 ft. RMC - Roots Medium Connection, from 11 to 01 o'clock, 10 %, within 8 inches of joint: YES106.1 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"106.1 ft. RFL - Roots Fine Lateral, from 01 to 02 o'clock151.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK151.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish151.1 ft. AMH - Downstream Manhole, Survey Ends - 32 1071

Observation photos (6)

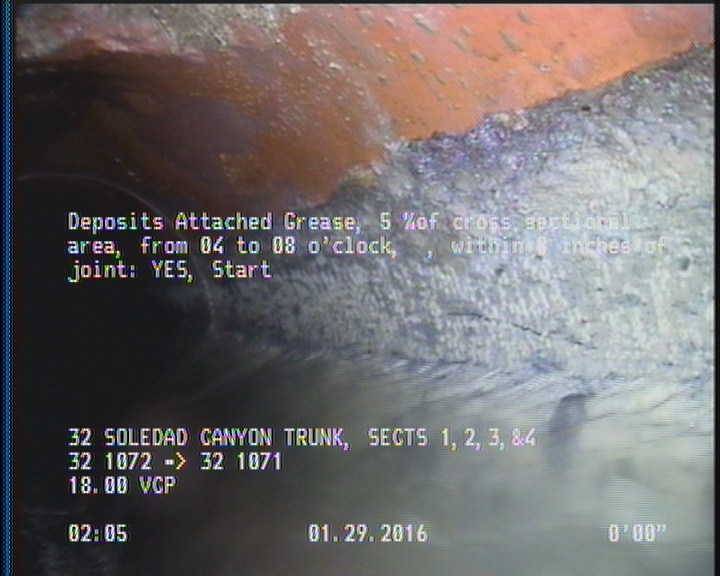

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

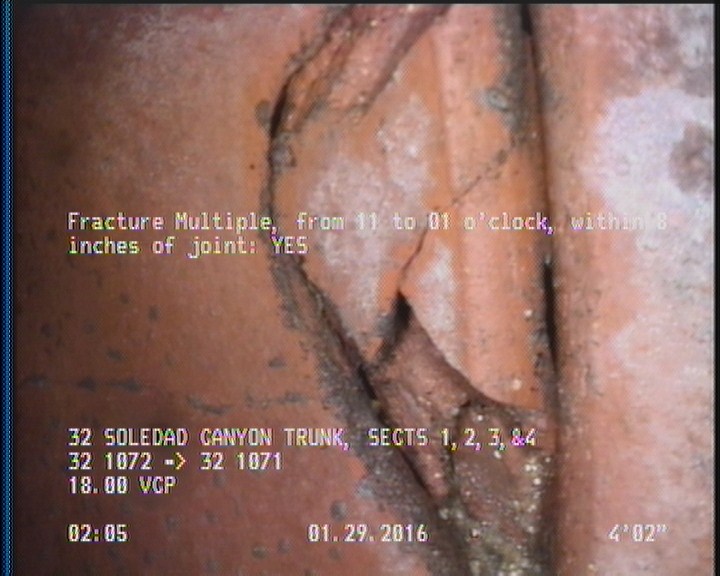

  • Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    4.1 ft. - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

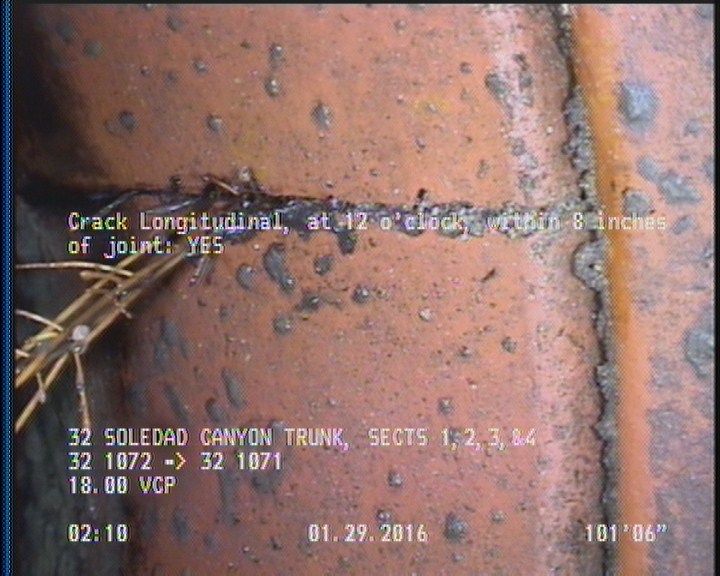

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    101.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

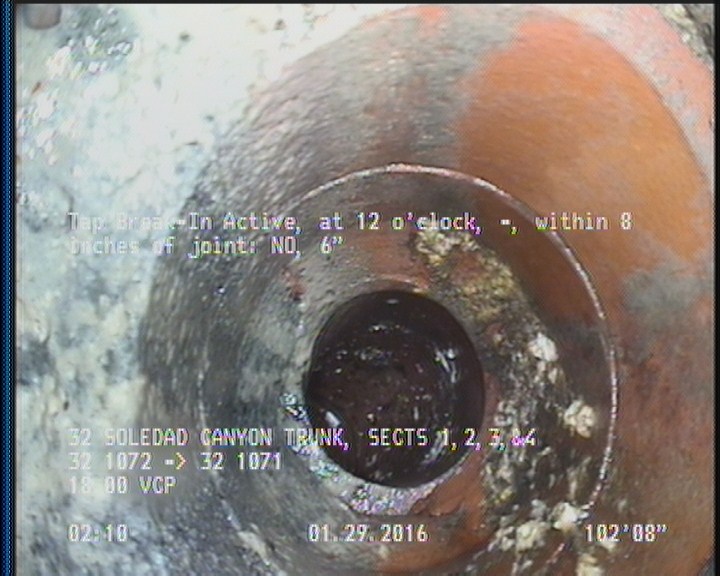

  • Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"

    102.7 ft. - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"

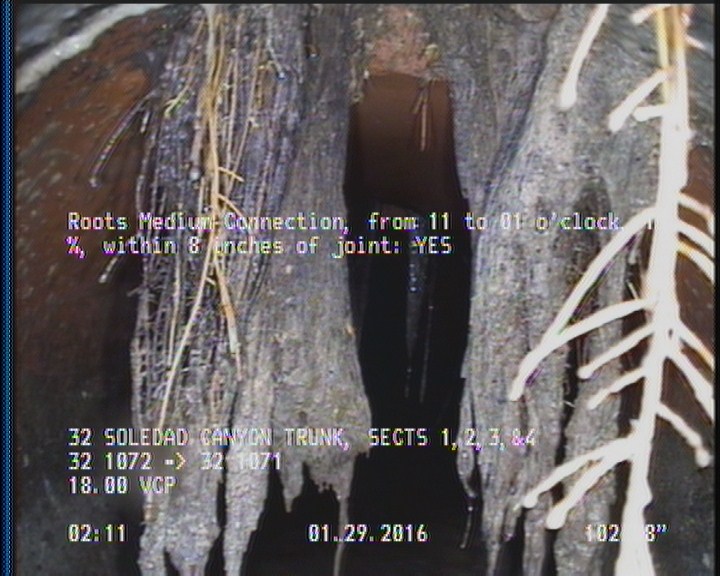

  • Roots Medium Connection, from 11 to 01 o'clock, 10 %, within 8 inches of joint: YES

    102.7 ft. - Roots Medium Connection, from 11 to 01 o'clock, 10 %, within 8 inches of joint: YES

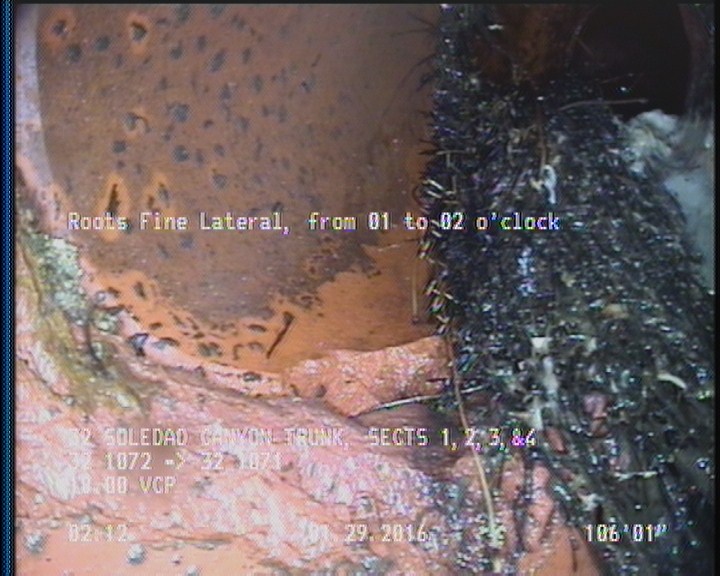

  • Roots Fine Lateral, from 01 to 02 o'clock

    106.1 ft. - Roots Fine Lateral, from 01 to 02 o'clock

All inspections of P19520Work order 547105

Observations (16)

DistanceCodeObservation
78.1TFC—
2DAGS—
83.2TFC—
102.7TBA—
0MWM—
106.1TBA—
0MWL—
6.1TFC—
0AMH32 1072
106.1RFL—
4.1FM—
151.1MGOACTIVE CONNECTION AT MH 9 O'CLOCK
101.5CL—
102.7RMC—
151.1DAGS—
151.1AMH32 1071

Properties (5)

additional_info
SC225466
custom_field_two
3
customer
LACSD
datetime
2016-01-29T02:01:23-08:00
sewer_category
GRAVITY
