Wastewater/Activity/PacpInspection/1.0Feb 2, 2016, 10:16 AM
32 1100_32 1099_02022016_021630.mp4
- Date
- 02/02/2016
- W/O
- 547105
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19549
- Time
- 2:16 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3090
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_547105_TV32026_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 32 1100
- Downstream MH
- 32 1099
- Dir. of Survey
- Downstream
- Length Surveyed
- 297.6 ft.
- Total Length
- 297.6 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 118
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 121
Observation photos (2)

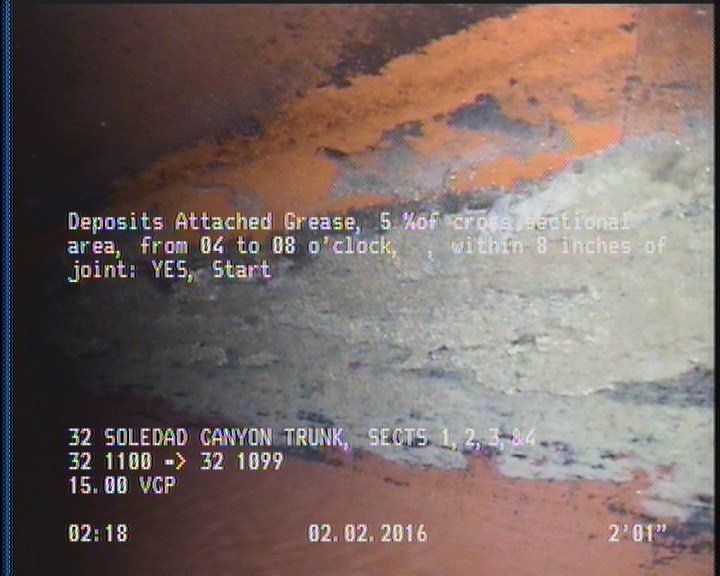

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

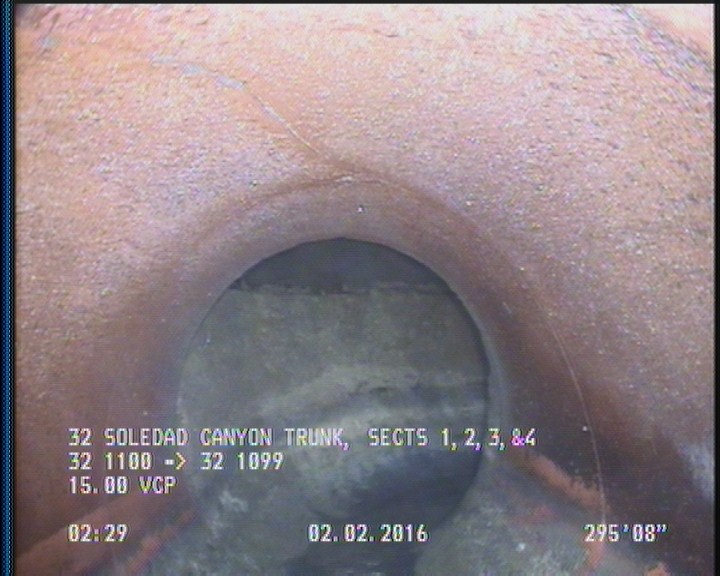

295.6 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 296.8 | DAGS | — |
| 186.2 | TFC | — |
| 0 | AMH | 32 1100 |
| 277.8 | TFC | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 22.4 | TFC | — |
| 295.6 | CM | — |
| 0 | MWL | — |
| 297.6 | AMH | 32 1099 |
| 101.3 | TFC | — |
Properties (5)
- additional_info
- SC225468
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-02T02:16:06-08:00
- sewer_category
- GRAVITY
