Wastewater/Activity/PacpInspection/1.0Feb 2, 2016, 09:43 AM
32 1102_32 1101_02022016_014331.mp4
- Date
- 02/02/2016
- W/O
- 547105
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19552
- Time
- 1:43 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3090
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_547105_TV32026_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 32 1102
- Downstream MH
- 32 1101
- Dir. of Survey
- Downstream
- Length Surveyed
- 194 ft.
- Total Length
- 194 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 2G00
- O&M Rating
- 76
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 77
Observation photos (2)

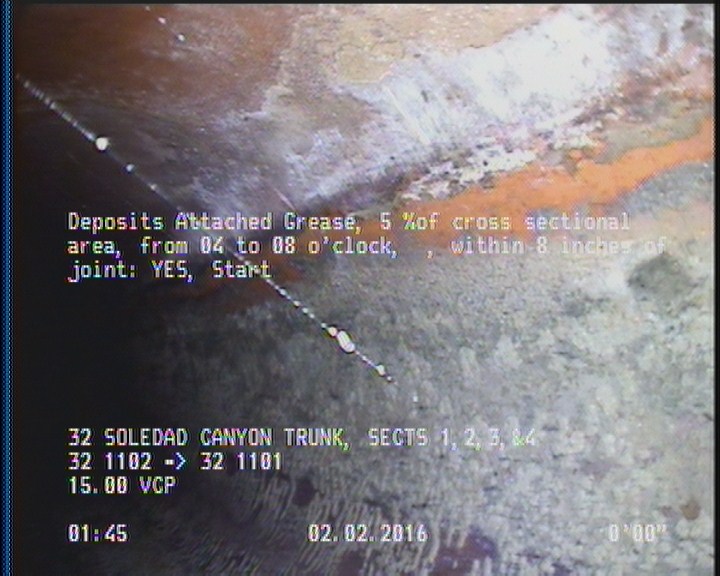

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

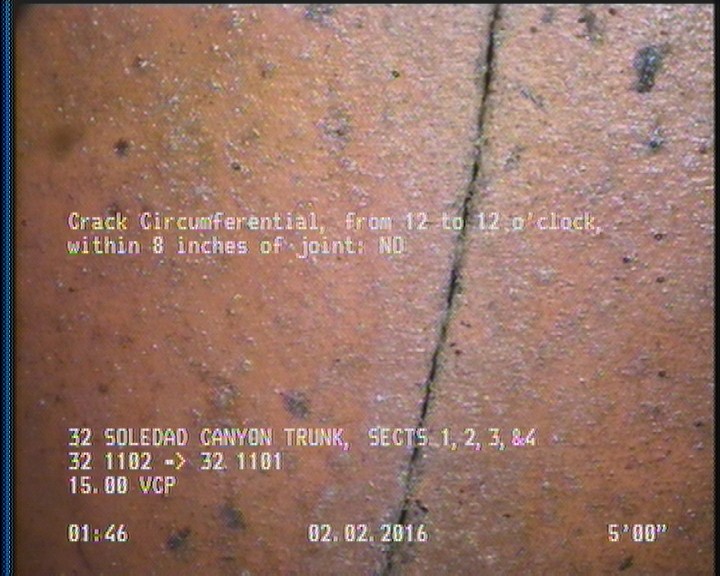

5 ft. - Crack Circumferential, from 12 to 12 o'clock, within 8 inches of joint: NO
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 5 | CC | — |
| 0 | AMH | 32 1102 |
| 70.3 | TFC | — |
| 0 | MWM | — |
| 137.2 | TFC | — |
| 194 | AMH | 32 1101 |
| 0 | MWL | — |
| 191.9 | DAGS | — |
Properties (5)
- additional_info
- SC225468
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-02T01:43:17-08:00
- sewer_category
- GRAVITY
