Wastewater/Activity/PacpInspection/1.0Feb 1, 2016, 12:10 PM
32 1064_32 1063_01022016_041118.mp4
- Date
- 02/01/2016
- W/O
- 547105
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19512
- Time
- 4:10 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3089
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_547105_TV32026_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 32 1063
- Downstream MH
- 32 1064
- Dir. of Survey
- Upstream
- Length Surveyed
- 222.8 ft.
- Total Length
- 222.8 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2H00
- O&M Rating
- 90
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 92
Observation photos (3)

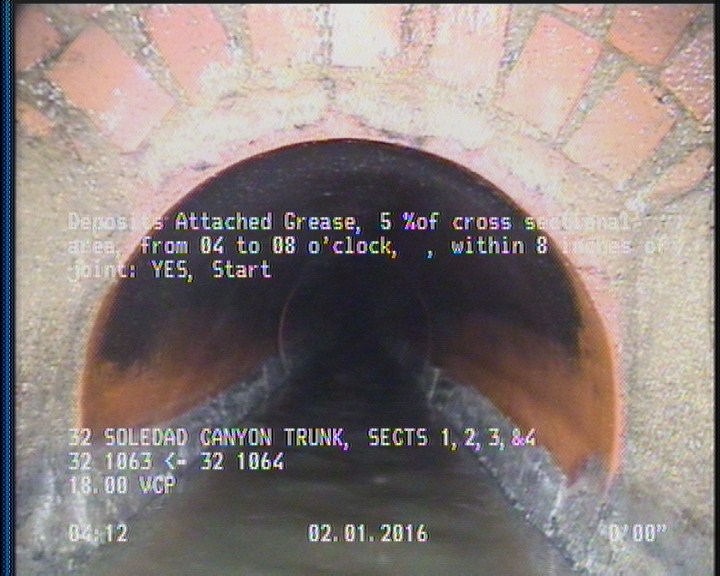

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

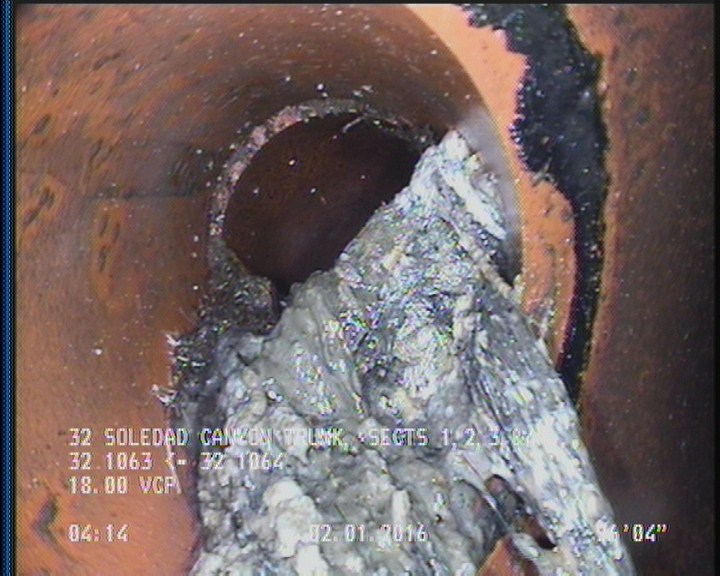

35.8 ft. - Tap Factory Made Defective, at 11 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS

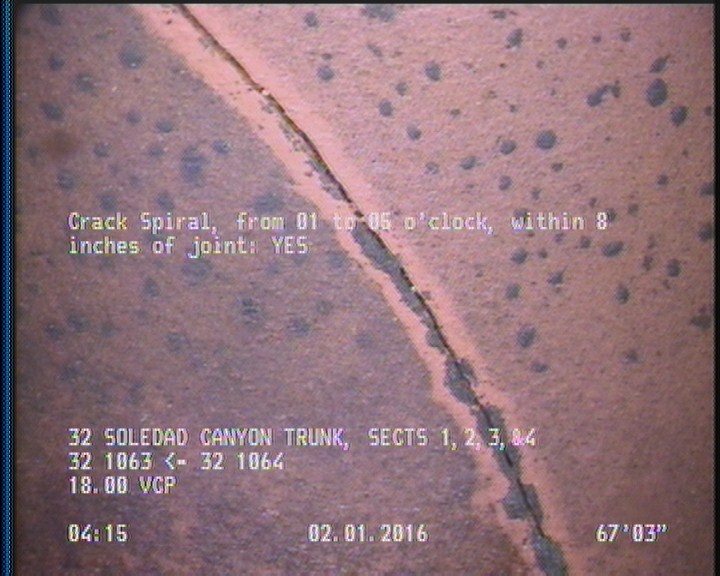

67.2 ft. - Crack Spiral, from 01 to 05 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 155 | TBA | — |
| 197.2 | TFC | — |
| 67.2 | CS | — |
| 222.6 | DAGS | — |
| 222.8 | AMH | 32 1064 |
| 119 | TFA | — |
| 41 | TFA | — |
| 190.6 | TFC | — |
| 0 | MWM | — |
| 0 | AMH | 32 1063 |
| 113.3 | TFC | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 35.8 | TFD | ROOTS |
Properties (5)
- additional_info
- SC225467
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-01T04:10:53-08:00
- sewer_category
- GRAVITY
