Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 2, 2016, 11:16 AM

  • 32 1110_32 1109_02022016_031716.mp4

Date
02/02/2016
W/O
547105
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P19560
Time
3:16 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3090
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
06
Purpose
Routine Assessment
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
32 1109
Downstream MH
32 1110
Dir. of Survey
Upstream
Length Surveyed
245.9 ft.
Total Length
245.9 ft.
Structural Index
3
Structural Quick
4131
Structural Rating
9
O&M Index
2
O&M Quick
412I
O&M Rating
100
Overall Index
2
Overall Quick
—
Overall Rating
109
Pipe schematic from manhole 32 1109 to 32 1110
MH: 32 1109MH: 32 1110upstream0 ft. AMH - Upstream Manhole, Survey Ends - 32 11103.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Finish5.1 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"7.2 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"37.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES44.8 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"51 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"55.9 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES99.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"105.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"142.4 ft. CS - Crack Spiral, from 08 to 02 o'clock, within 8 inches of joint: YES160.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"172.6 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"226.7 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"233.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"243.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start245.9 ft. MWM - Water Mark, 60 %of cross sectional area245.9 ft. MWL - Water Level, 30 %of cross sectional area245.9 ft. AMH - Downstream Manhole, Survey Begins - 32 1109

Observation photos (4)

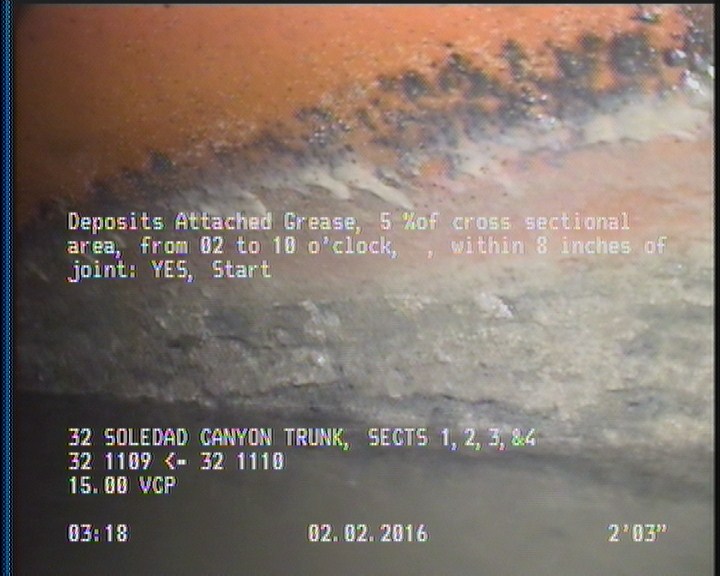

  • Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

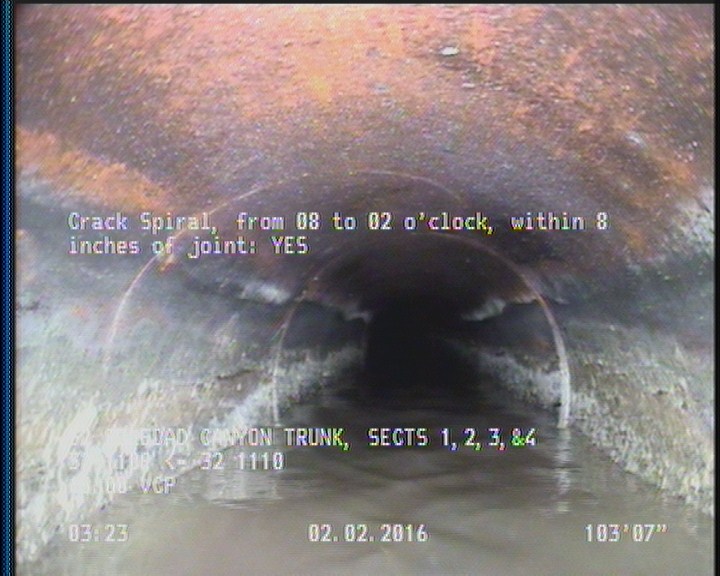

  • Crack Spiral, from 08 to 02 o'clock, within 8 inches of joint: YES

    103.5 ft. - Crack Spiral, from 08 to 02 o'clock, within 8 inches of joint: YES

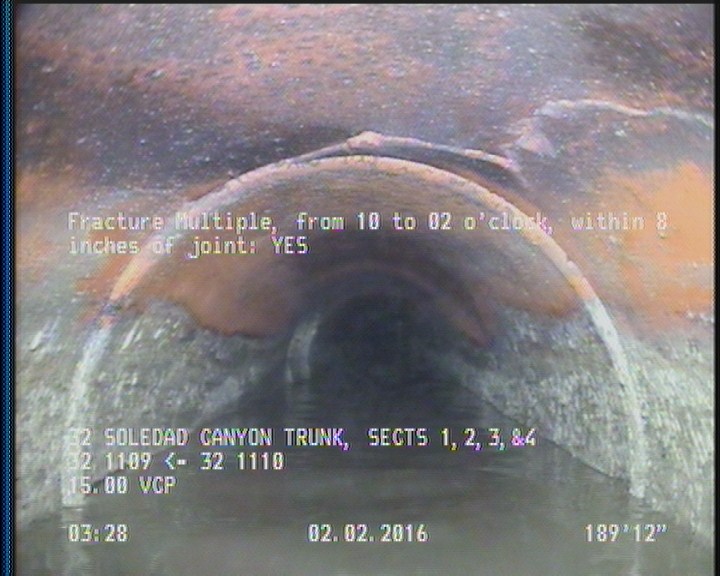

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    190 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

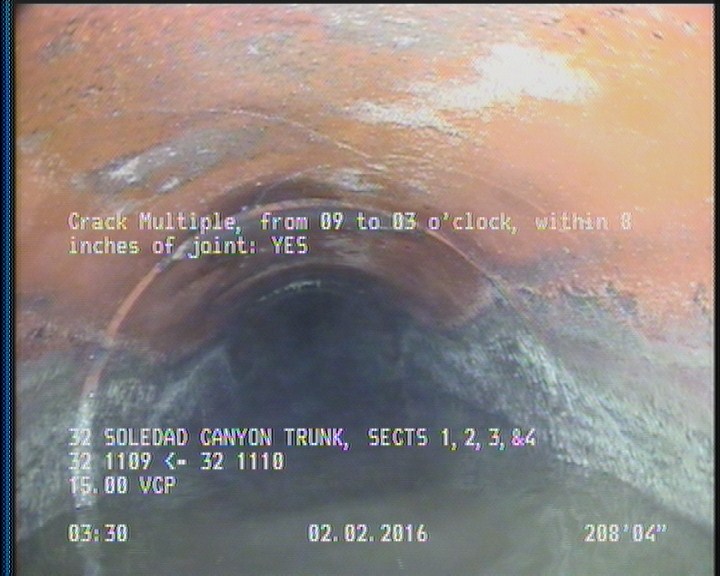

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    208.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P19560Work order 547105

Observations (19)

DistanceCodeObservation
2DAGS—
245.9AMH32 1110
208.4CM—
73.3TFC—
190FM—
201.1TFA—
242.8DAGS—
12.3TFC—
103.5CS—
140.6TFC—
238.7TBA—
194.9TFA—
0MWM—
0MWL—
146.3TFC—
19.2TFA—
0AMH32 1109
85TFC—
240.8TBA—

Properties (5)

additional_info
SC225468
custom_field_two
3
customer
LACSD
datetime
2016-02-02T03:16:46-08:00
sewer_category
GRAVITY
