Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 10, 2016, 08:46 AM

  • 32 1007_32 1255_10022016_004452.mp4

Date
02/10/2016
W/O
547105
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P19455
Time
12:46 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3098
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
05
Purpose
Routine Assessment
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
32 1007
Downstream MH
32 1255
Dir. of Survey
Downstream
Length Surveyed
115.2 ft.
Total Length
115.2 ft.
Structural Index
3
Structural Quick
413B
Structural Rating
51
O&M Index
2
O&M Quick
2H00
O&M Rating
92
Overall Index
2
Overall Quick
—
Overall Rating
143
Pipe schematic from manhole 32 1007 to 32 1255
MH: 32 1007MH: 32 1255downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 32 10070 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.4 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start12.1 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"12.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES28.2 ft. CS - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES38.2 ft. FM - Fracture Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES43.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start114.9 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish114.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish114.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish115.2 ft. AMH - Downstream Manhole, Survey Ends - 32 1255115.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 12 O'CLOCK115.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK115.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (6)

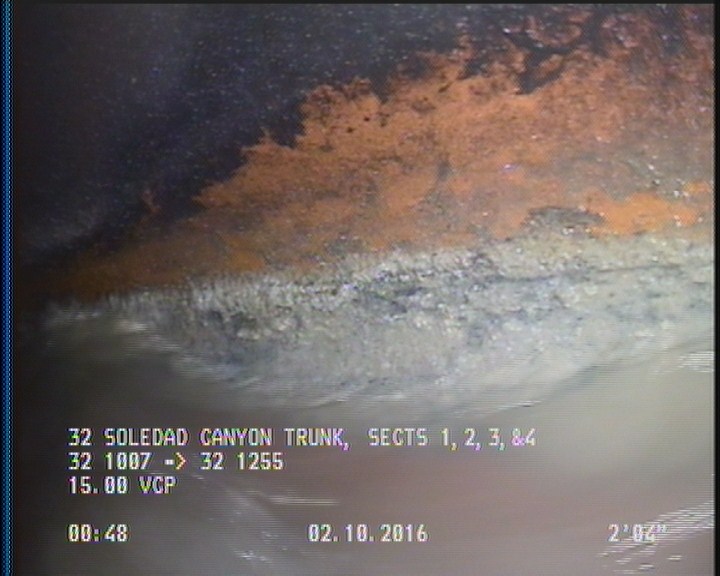

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

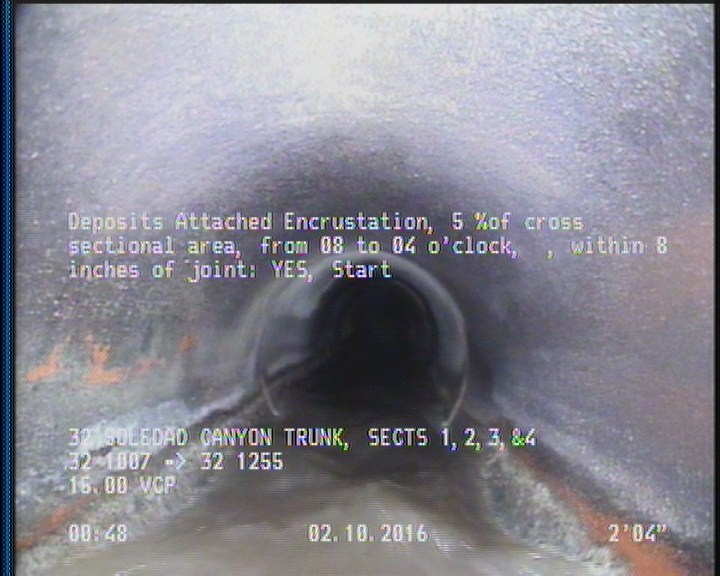

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2.4 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

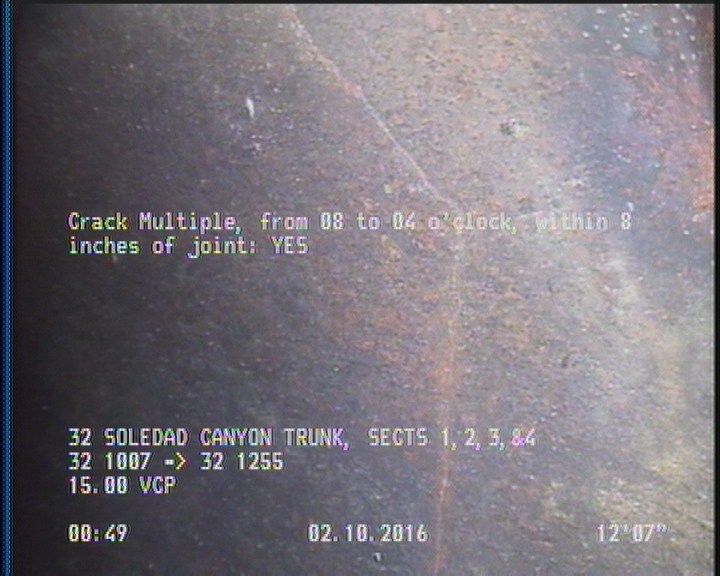

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    12.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

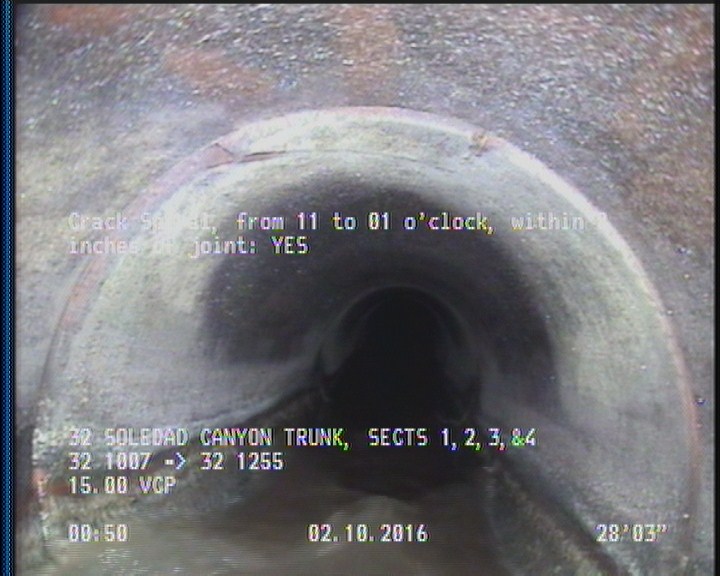

  • Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES

    28.2 ft. - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES

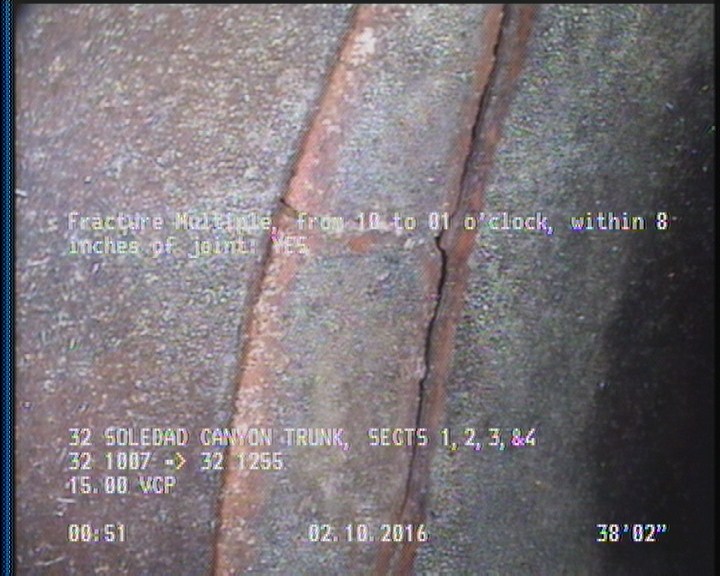

  • Fracture Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES

    38.2 ft. - Fracture Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES

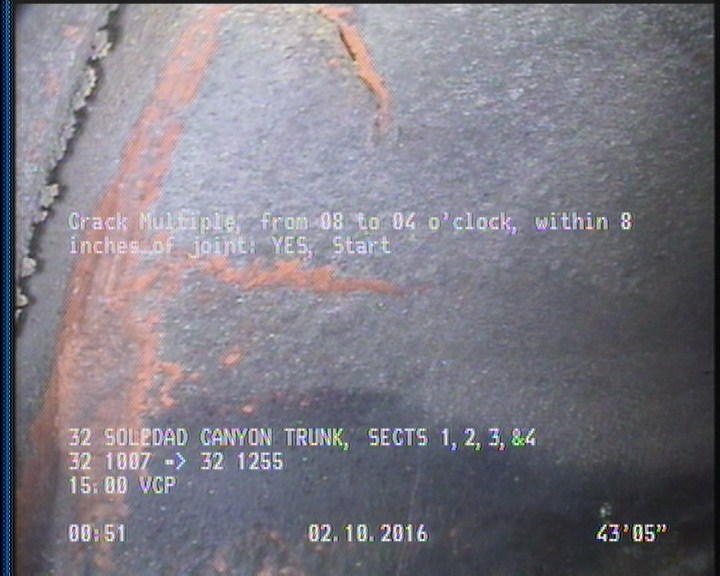

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    43.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P19455Work order 547105

Observations (18)

DistanceCodeObservation
43.4CM—
114.9DAE—
38.2FM—
115.2AMH32 1255
114.9CM—
114.9DAGS—
0MWM—
0MWL—
0AMH32 1007
115.2MGOACTIVE CONNECTION AT MH 12 O'CLOCK
12.1TBA—
28.2CS—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
2.4DAE—
115.2MGOACTIVE CONNECTION AT MH 9 O'CLOCK
12.6CM—
2DAGS—
115.2MGOACTIVE CONNECTION AT MH 3 O'CLOCK

Properties (5)

additional_info
SC225476
custom_field_two
3
customer
LACSD
datetime
2016-02-10T00:46:46-08:00
sewer_category
SIPHON
