Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 3, 2016, 10:05 AM

  • 32 1079_32 1078_03022016_024651.mp4

Date
02/03/2016
W/O
547105
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P19528
Time
2:05 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3091
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
06
Purpose
Routine Assessment
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
32 1079
Downstream MH
32 1078
Dir. of Survey
Downstream
Length Surveyed
270 ft.
Total Length
270 ft.
Structural Index
4
Structural Quick
4131
Structural Rating
7
O&M Index
2
O&M Quick
312J
O&M Rating
109
Overall Index
2
Overall Quick
—
Overall Rating
116
Pipe schematic from manhole 32 1079 to 32 1078
MH: 32 1079MH: 32 1078downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 32 10790 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start8.6 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"37.1 ft. FM - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES63.5 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"69.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"123.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"134 ft. CM - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES142.1 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"178.5 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"214.7 ft. TBI - Tap Break-In Intruding, at 02 o'clock, -, #v, within 8 inches of joint: NO, 6", 3"239.3 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"268 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish270 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK270 ft. AMH - Downstream Manhole, Survey Ends - 32 1078

Observation photos (4)

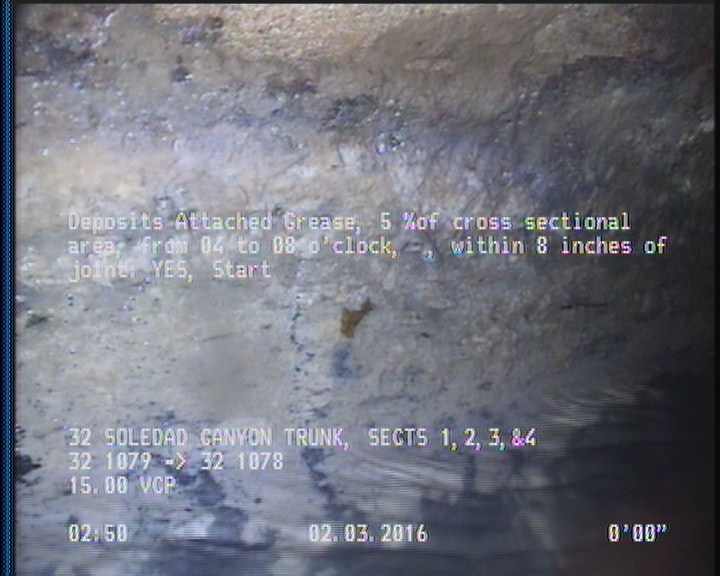

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

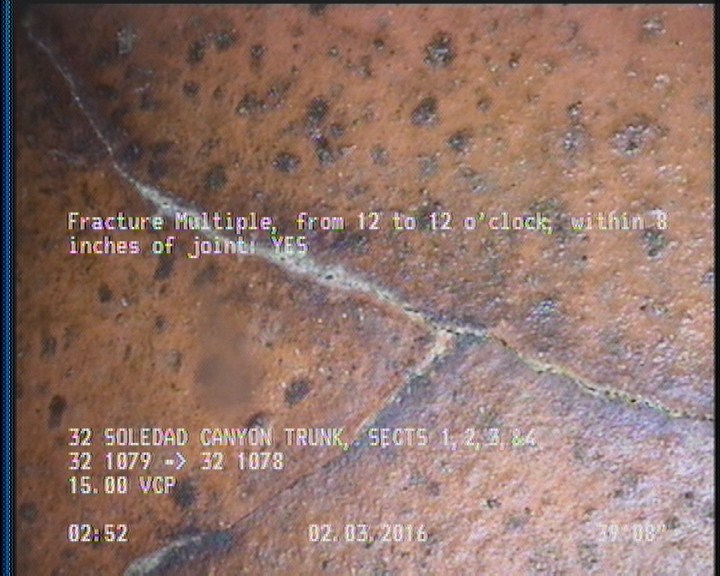

  • Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    37.1 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

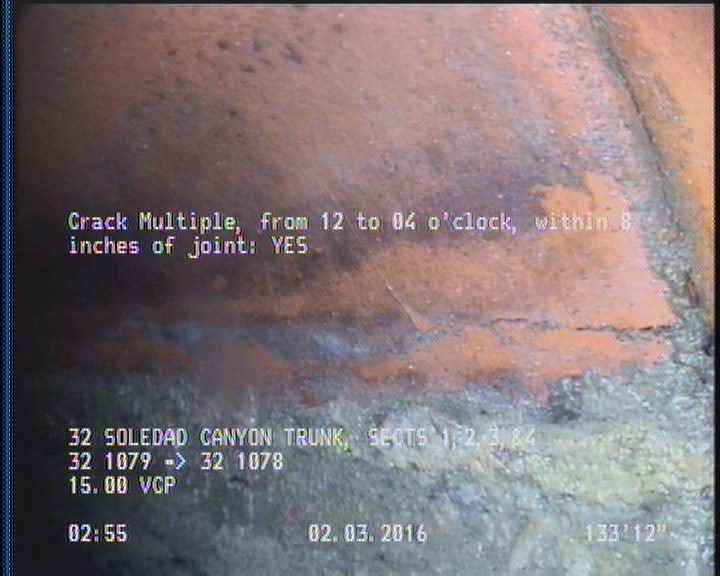

  • Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

    134 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

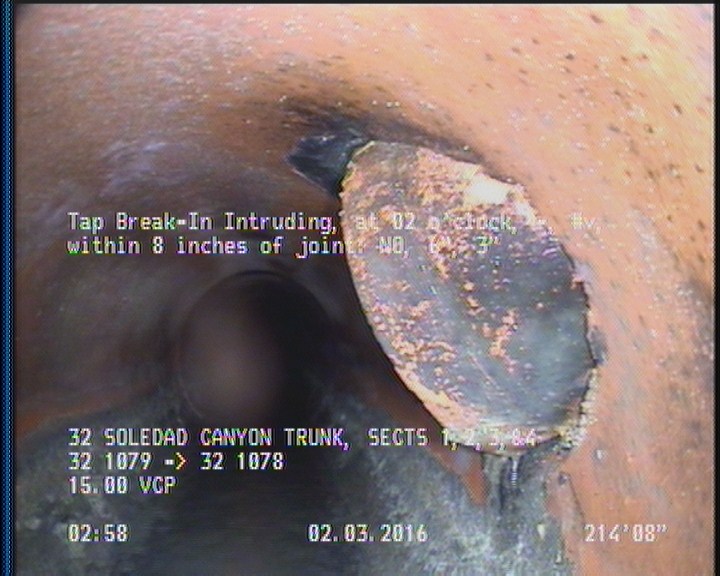

  • Tap Break-In Intruding, at 02 o'clock, -, #v, within 8 inches of joint: NO, 6", 3"

    214.7 ft. - Tap Break-In Intruding, at 02 o'clock, -, #v, within 8 inches of joint: NO, 6", 3"

All inspections of P19528Work order 547105

Observations (18)

DistanceCodeObservation
214.7TBI—
239.3TFA—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
270MGOACTIVE CONNECTION AT MH 3 O'CLOCK
69.5TFA—
123.9TFA—
178.5TFA—
0MWM—
2DAGS—
0AMH32 1079
268DAGS—
142.1TFA—
8.6TFC—
134CM—
270AMH32 1078
37.1FM—
63.5TFA—
0MWL—

Properties (5)

additional_info
SC225469
custom_field_two
3
customer
LACSD
datetime
2016-02-03T02:05:09-08:00
sewer_category
GRAVITY
