Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 4, 2016, 07:35 AM

  • 32 1057_32 1056_03022016_235609.mp4

Date
02/03/2016
W/O
547105
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P19505
Time
11:35 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3092
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
05
Purpose
V
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
32 1056
Downstream MH
32 1057
Dir. of Survey
Upstream
Length Surveyed
119.6 ft.
Total Length
119.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412G
O&M Rating
82
Overall Index
2
Overall Quick
—
Overall Rating
82
Pipe schematic from manhole 32 1056 to 32 1057
MH: 32 1056MH: 32 1057upstream0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish0 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"0 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish0 ft. MSA - Survey Abandoned - REVERSAL COMPLETE.48.4 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start75.2 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"79.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"79.9 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish107.4 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start117.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start119.6 ft. AMH - Downstream Manhole, Survey Begins - 32 1056119.6 ft. MWM - Water Mark, 50 %of cross sectional area119.6 ft. MWL - Water Level, 30 %of cross sectional area

Observation photos (1)

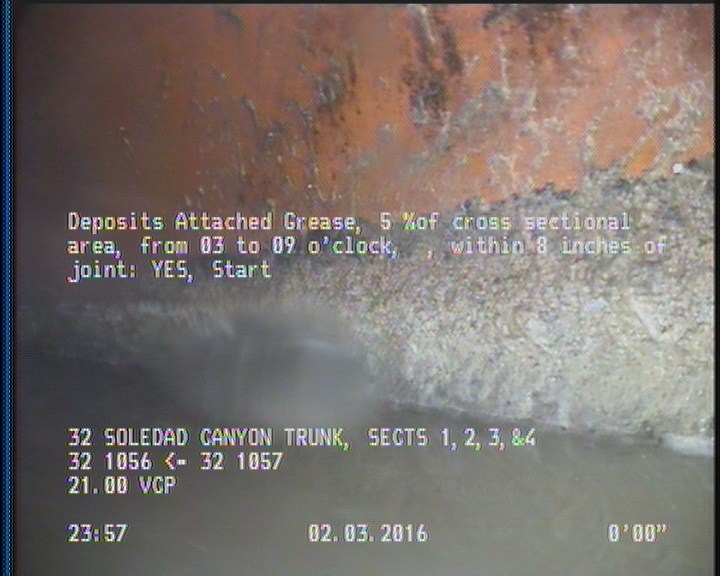

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P19505Work order 547105

Observations (13)

DistanceCodeObservation
71.2DSZ—
119.6DAGS—
0AMH32 1056
119.6TFC—
2DAGS—
119.6DSZ—
0MWM—
39.7TFC—
119.6MSAREVERSAL COMPLETE.
12.2DSZ—
44.4TFA—
39.7DSZ—
0MWL—

Properties (5)

additional_info
SC225470
custom_field_two
4
customer
LACSD
datetime
2016-02-03T23:35:04-08:00
sewer_category
GRAVITY
