Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 3, 2016, 12:21 PM

  • 32 1081_32 1080_03022016_042154.mp4

Date
02/03/2016
W/O
547105
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P19530
Time
4:21 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3091
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
06
Purpose
Routine Assessment
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
32 1080
Downstream MH
32 1081
Dir. of Survey
Upstream
Length Surveyed
273.8 ft.
Total Length
273.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2J00
O&M Rating
108
Overall Index
2
Overall Quick
—
Overall Rating
108
Pipe schematic from manhole 32 1080 to 32 1081
MH: 32 1080MH: 32 1081upstream0 ft. AMH - Upstream Manhole, Survey Ends - 32 10810 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 1 O'CLOCK0.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish18 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"36.2 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"66.7 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"84.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"140 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"146.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"201.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"213.6 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"216.9 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"255.8 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"271.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start273.8 ft. AMH - Downstream Manhole, Survey Begins - 32 1080273.8 ft. MWL - Water Level, 15 %of cross sectional area273.8 ft. MWM - Water Mark, 25 %of cross sectional area

Observation photos (1)

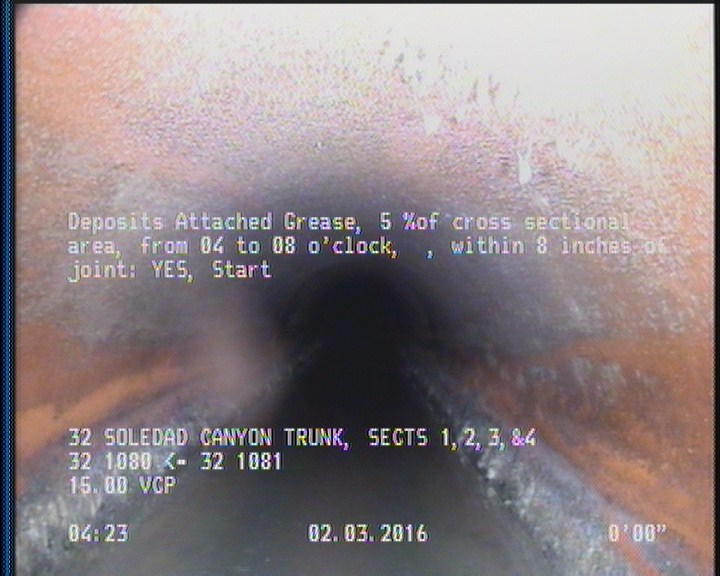

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P19530Work order 547105

Observations (17)

DistanceCodeObservation
188.9TFA—
207.1TFA—
2DAGS—
0AMH32 1080
72.7TFA—
133.8TFA—
255.8TFA—
0MWL—
237.6TFA—
18TFA—
273.8AMH32 1081
127.6TFA—
273DAGS—
273.8MGOACTIVE CONNECTION AT MH 1 O'CLOCK
0MWM—
60.2TFC—
56.9TBA—

Properties (5)

additional_info
SC225469
custom_field_two
4
customer
LACSD
datetime
2016-02-03T04:21:38-08:00
sewer_category
GRAVITY
