Wastewater/Activity/PacpInspection/1.0Feb 4, 2016, 08:22 AM
32 1230_32 1050_04022016_002334.mp4
- Date
- 02/04/2016
- W/O
- 547105
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19498
- Time
- 12:22 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3092
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_547105_TV32026_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 32 1230
- Downstream MH
- 32 1050
- Dir. of Survey
- Downstream
- Length Surveyed
- 240.2 ft.
- Total Length
- 240.2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2H00
- O&M Rating
- 94
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 96
Observation photos (2)

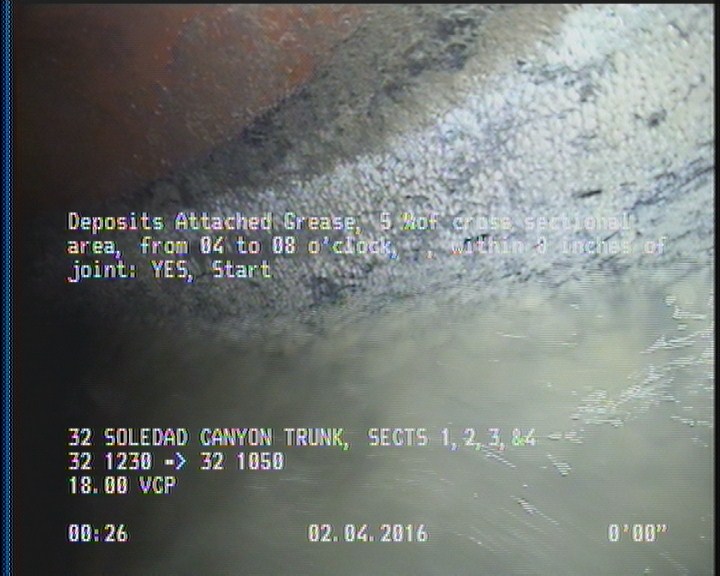

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

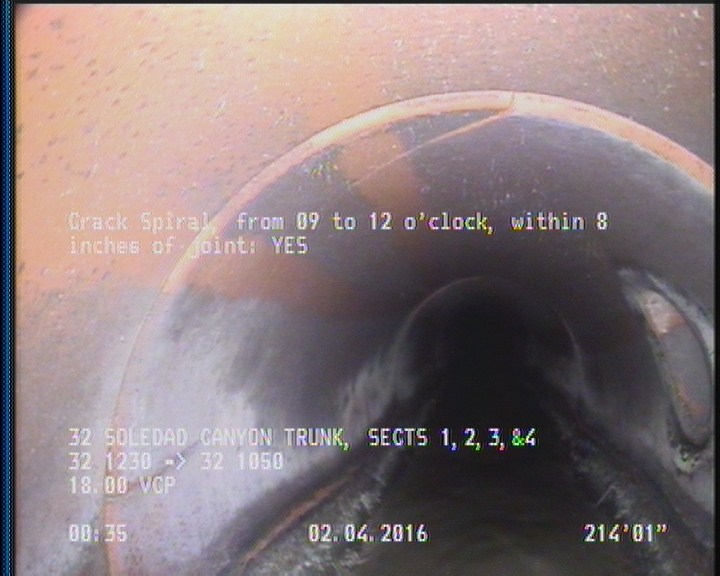

214.1 ft. - Crack Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 240.2 | AMH | 32 1050 |
| 0 | MWM | — |
| 0 | AMH | 32 1230 |
| 0 | MGO | CONNECTION AT MH 1 O'CLOCK |
| 15.7 | TFC | — |
| 0 | MWL | — |
| 113.7 | TFC | — |
| 216.7 | TFC | — |
| 238.1 | DAGS | — |
| 169.2 | TFC | — |
| 65.2 | TFA | — |
| 2 | DAGS | — |
| 214.1 | CS | — |
Properties (5)
- additional_info
- SC225470
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-04T00:22:51-08:00
- sewer_category
- GRAVITY
