Wastewater/Activity/PacpInspection/1.0Feb 1, 2016, 09:51 AM
32 1054_32 1053_01022016_015157.mp4
- Date
- 02/01/2016
- W/O
- 547105
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19502
- Time
- 1:51 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3089
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_547105_TV32026_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 32 1054
- Downstream MH
- 32 1053
- Dir. of Survey
- Downstream
- Length Surveyed
- 312.7 ft.
- Total Length
- 312.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412K
- O&M Rating
- 128
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 128
Observation photos (1)

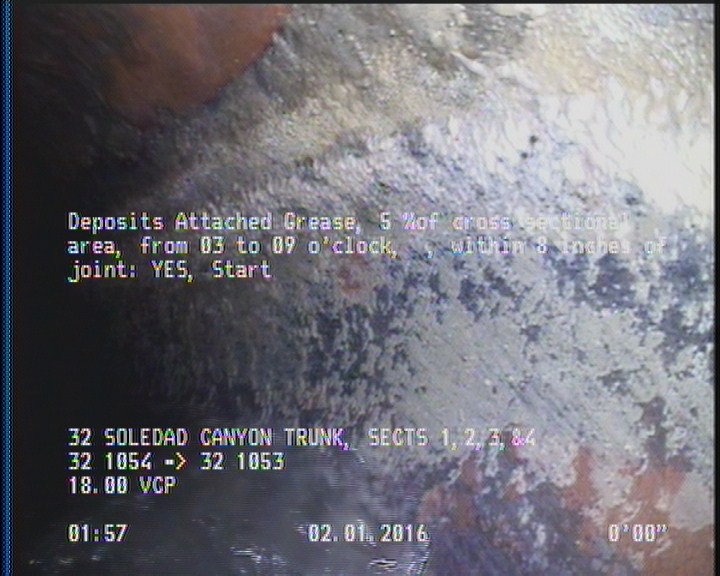

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH AT 3 O'CLOCK. |
| 72.6 | TFC | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 32 1054 |
| 310.6 | DAGS | — |
| 120.7 | TF | — |
| 271.7 | TFA | — |
| 223.7 | TFC | — |
| 2 | DAGS | — |
| 312.7 | AMH | 32 1053 |
| 175.4 | TF | — |
Properties (5)
- additional_info
- SC225467
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-01T01:51:32-08:00
- sewer_category
- GRAVITY
