Wastewater/Activity/PacpInspection/1.0Feb 1, 2016, 11:00 AM
32 1055_32 1054_01022016_030101.mp4
- Date
- 02/01/2016
- W/O
- 547105
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19503
- Time
- 3:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3089
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_547105_TV32026_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 32 1054
- Downstream MH
- 32 1055
- Dir. of Survey
- Upstream
- Length Surveyed
- 264.4 ft.
- Total Length
- 264.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412J
- O&M Rating
- 110
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 110
Observation photos (2)

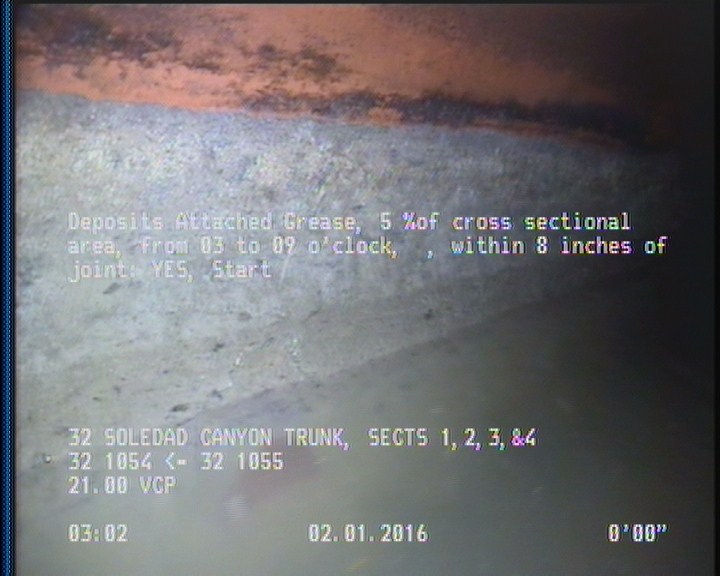

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

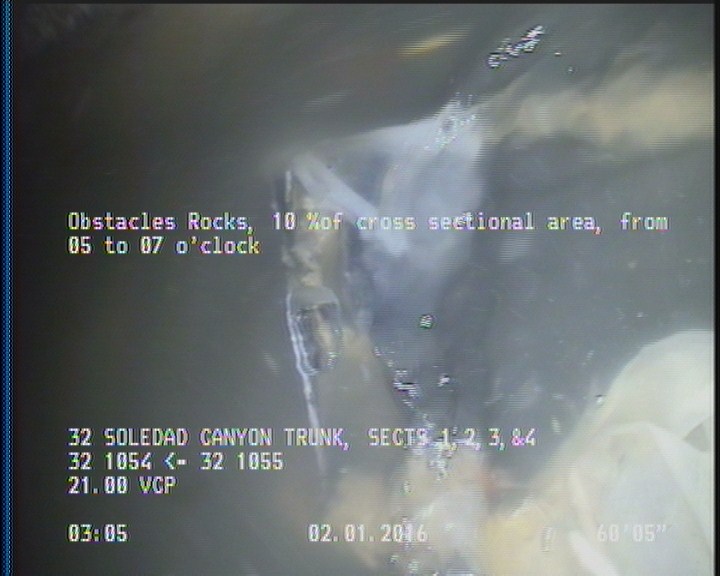

60.4 ft. - Obstacles Rocks, 10 %of cross sectional area, from 05 to 07 o'clock
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 56.3 | TFC | — |
| 209.5 | TFC | — |
| 203 | TFC | — |
| 60.4 | OBR | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 32 1054 |
| 0 | MWM | — |
| 264.4 | AMH | 32 1055 |
| 60.4 | TFC | — |
| 132.8 | TFC | — |
| 264.4 | DAGS | — |
| 126.3 | TF | — |
Properties (5)
- additional_info
- SC225467
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-01T03:00:58-08:00
- sewer_category
- GRAVITY
