Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 1, 2016, 11:36 AM

  • 32 1061_32 1060_01022016_033741.mp4

Date
02/01/2016
W/O
547105
Weather
Light Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P19509
Time
3:36 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3089
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
05
Purpose
Routine Assessment
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
32 1060
Downstream MH
32 1061
Dir. of Survey
Upstream
Length Surveyed
273 ft.
Total Length
273 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2J00
O&M Rating
108
Overall Index
2
Overall Quick
—
Overall Rating
110
Pipe schematic from manhole 32 1060 to 32 1061
MH: 32 1060MH: 32 1061upstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 32 10611.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish2.7 ft. CS - Crack Spiral, from 08 to 02 o'clock, within 8 inches of joint: YES16.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"21.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"99.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"104.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"171.7 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"176.6 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"243.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"249.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"271 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start273 ft. MWL - Water Level, 10 %of cross sectional area273 ft. AMH - Downstream Manhole, Survey Begins - 32 1060273 ft. MWM - Water Mark, 40 %of cross sectional area

Observation photos (2)

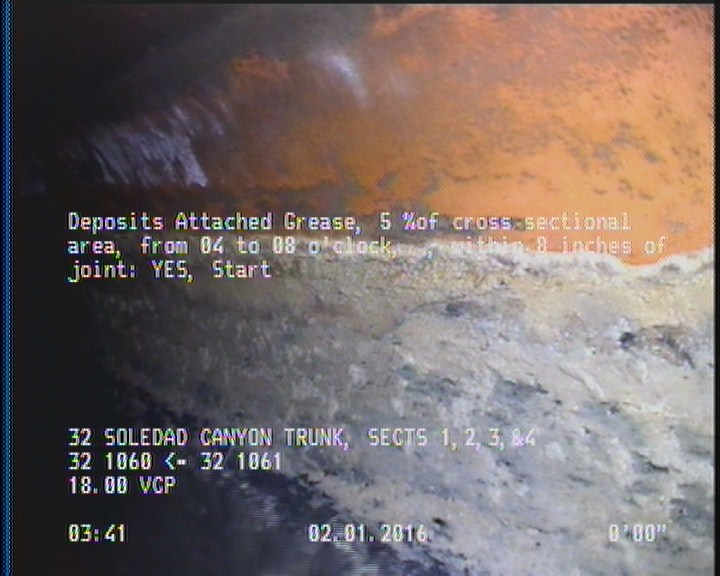

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

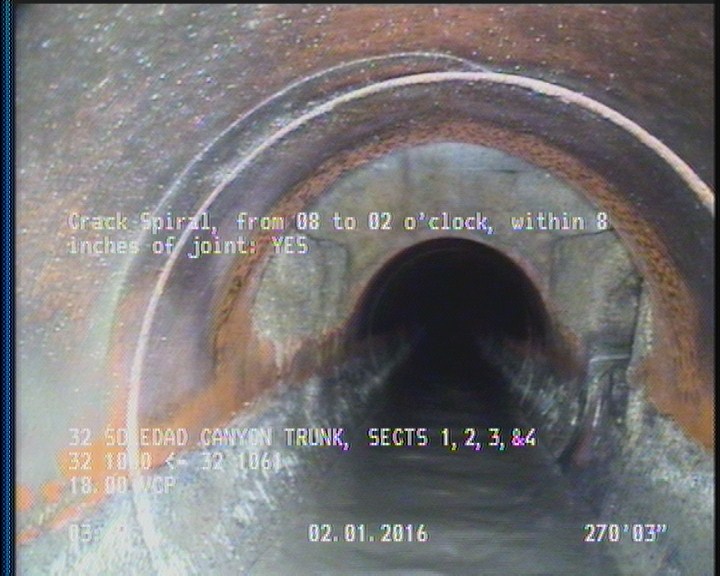

  • Crack Spiral, from 08 to 02 o'clock, within 8 inches of joint: YES

    270.3 ft. - Crack Spiral, from 08 to 02 o'clock, within 8 inches of joint: YES

All inspections of P19509Work order 547105

Observations (16)

DistanceCodeObservation
0MWL—
273MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0AMH32 1060
256.7TFC—
23.4TFC—
273AMH32 1061
168.4TFC—
29.9TFC—
101.3TFA—
96.4TFC—
251.6TF—
2DAGS—
270.3CS—
0MWM—
271.4DAGS—
173.2TFA—

Properties (5)

additional_info
SC225467
custom_field_two
4
customer
LACSD
datetime
2016-02-01T03:36:58-08:00
sewer_category
GRAVITY
