Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 1, 2016, 11:58 AM

  • 32 1063_32 1062_01022016_035924.mp4

Date
02/01/2016
W/O
547105
Weather
Light Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00841
PipeID
P19511
Time
3:58 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3089
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
05
Purpose
Routine Assessment
Project
WO_547105_TV32026_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
32 1062
Downstream MH
32 1063
Dir. of Survey
Upstream
Length Surveyed
172.2 ft.
Total Length
172.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2F00
O&M Rating
68
Overall Index
2
Overall Quick
—
Overall Rating
68
Pipe schematic from manhole 32 1062 to 32 1063
MH: 32 1062MH: 32 1063upstream0 ft. AMH - Upstream Manhole, Survey Ends - 32 10632.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish34.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"39.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"106.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"112.8 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"170.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start172.2 ft. MWM - Water Mark, 35 %of cross sectional area172.2 ft. MWL - Water Level, 15 %of cross sectional area172.2 ft. AMH - Downstream Manhole, Survey Begins - 32 1062

Observation photos (1)

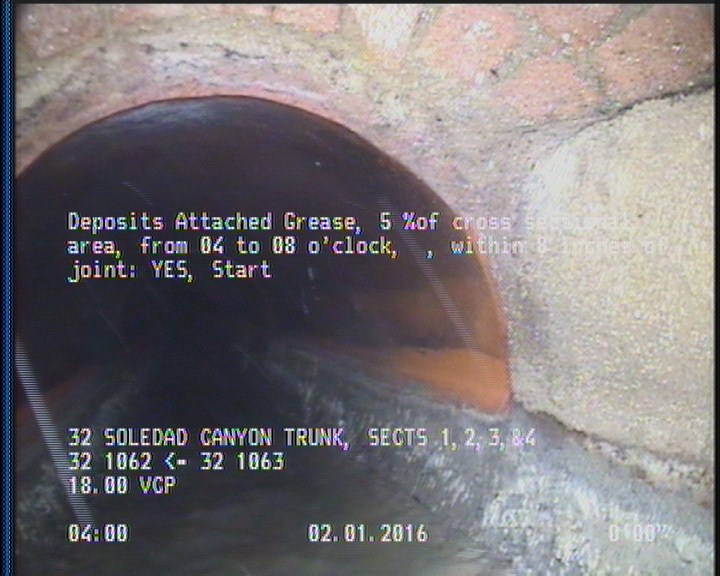

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P19511Work order 547105

Observations (10)

DistanceCodeObservation
59.4TFC—
65.3TFC—
138.1TFA—
0MWM—
132.3TFC—
0MWL—
0AMH32 1062
2DAGS—
170DAGS—
172.2AMH32 1063

Properties (5)

additional_info
SC225467
custom_field_two
4
customer
LACSD
datetime
2016-02-01T03:58:44-08:00
sewer_category
GRAVITY
