Wastewater/Activity/PacpInspection/1.0Jan 29, 2016, 11:40 AM
32 1068_32 1067_29012016_034054.mp4
- Date
- 01/29/2016
- W/O
- 547105
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19516
- Time
- 3:40 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3088
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_547105_TV32026_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 32 1068
- Downstream MH
- 32 1067
- Dir. of Survey
- Downstream
- Length Surveyed
- 297.2 ft.
- Total Length
- 297.2 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 118
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 125
Observation photos (4)

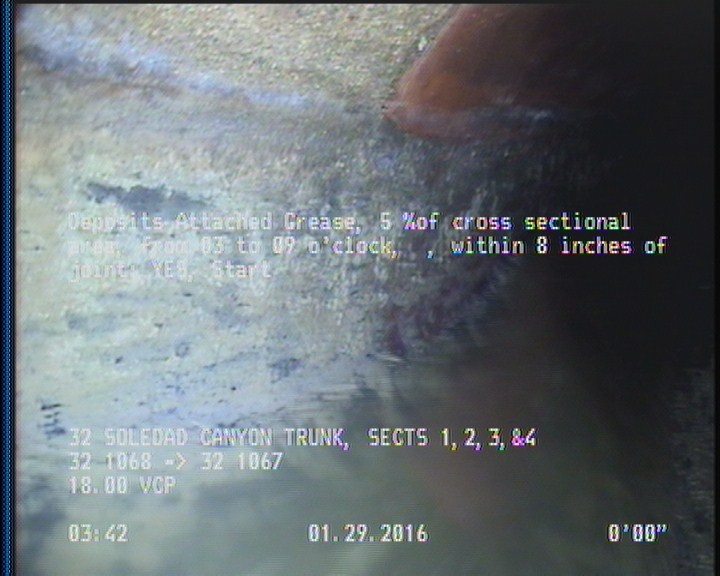

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

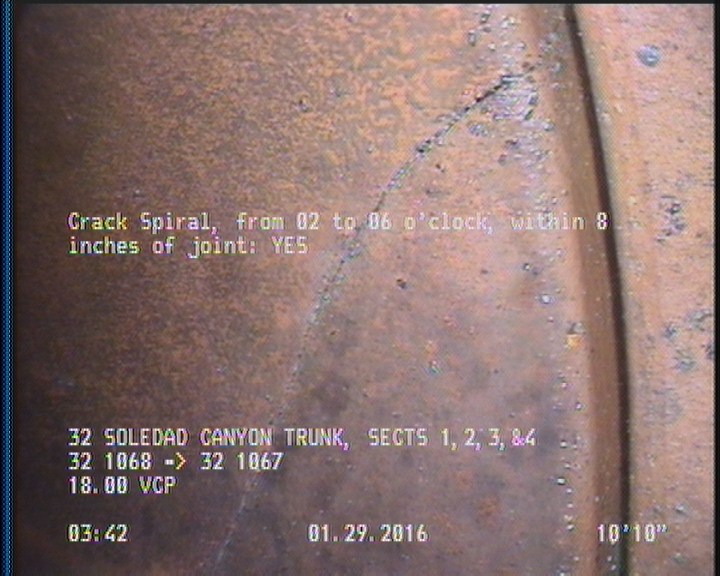

10.8 ft. - Crack Spiral, from 02 to 06 o'clock, within 8 inches of joint: YES

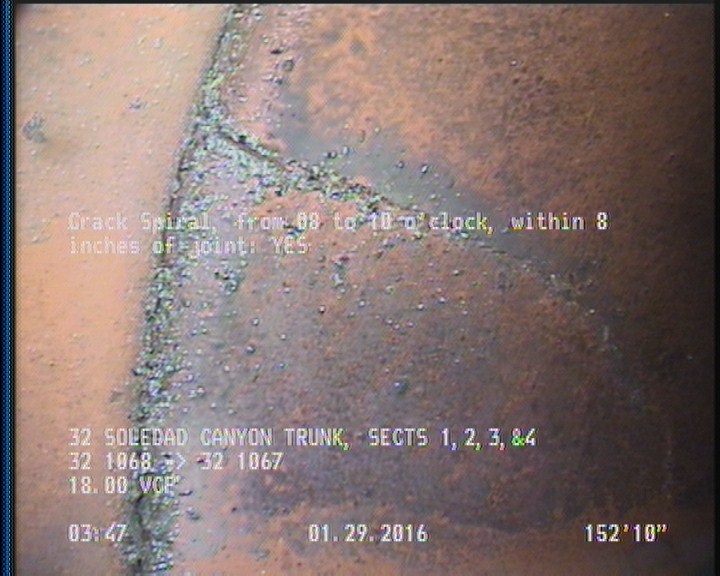

152.9 ft. - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES

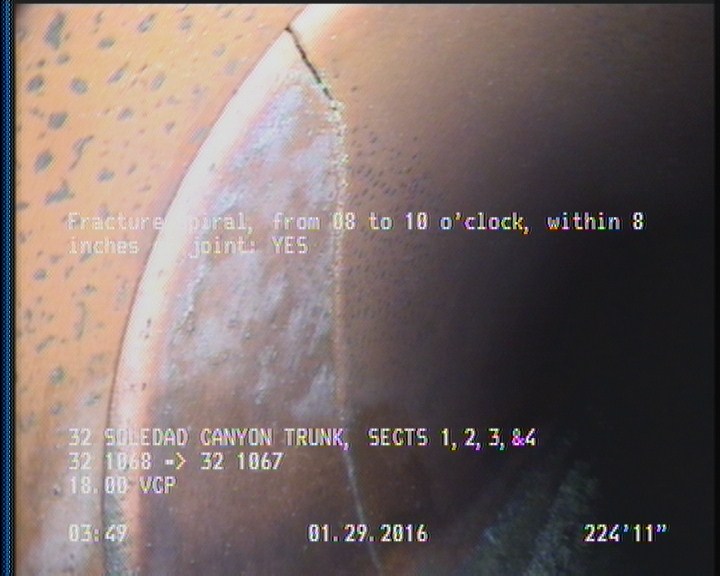

224.9 ft. - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 224.9 | FS | — |
| 152.9 | CS | — |
| 2 | DAGS | — |
| 184.7 | TFC | — |
| 10.8 | CS | — |
| 0 | MWL | — |
| 297.2 | AMH | 32 1067 |
| 0 | MWM | — |
| 73.3 | TBA | — |
| 179 | TFA | — |
| 29.8 | TFC | — |
| 25.3 | TFC | — |
| 256.7 | TFA | — |
| 102.5 | TFA | — |
| 0 | AMH | 32 1068 |
| 295.4 | DAGS | — |
| 297.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 107.6 | TFC | — |
| 261.7 | TFC | — |
Properties (5)
- additional_info
- SC225466
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-29T03:40:20-08:00
- sewer_category
- GRAVITY
