Wastewater/Activity/PacpInspection/1.0Jan 29, 2016, 10:48 AM
32 1077_32 1076_29012016_024831.mp4
- Date
- 01/29/2016
- W/O
- 547105
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19526
- Time
- 2:48 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3088
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_547105_TV32026_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 32 1076
- Downstream MH
- 32 1077
- Dir. of Survey
- Upstream
- Length Surveyed
- 136.2 ft.
- Total Length
- 136.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 4131
- O&M Rating
- 61
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 61
Observation photos (2)

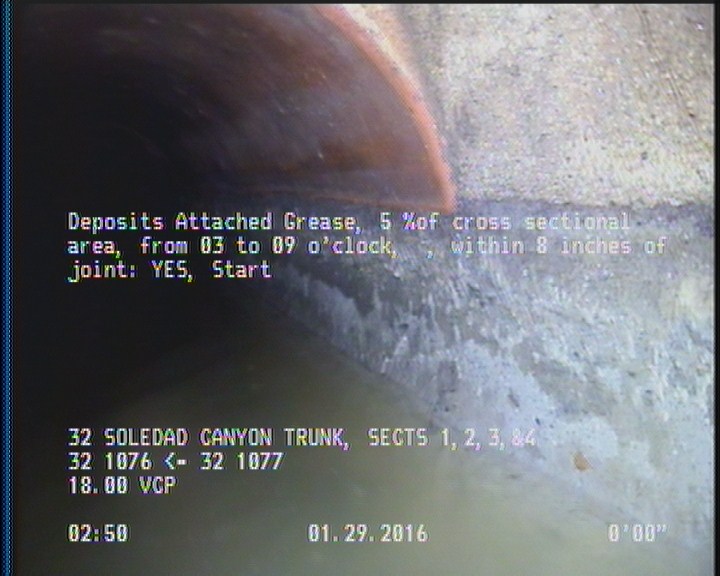

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

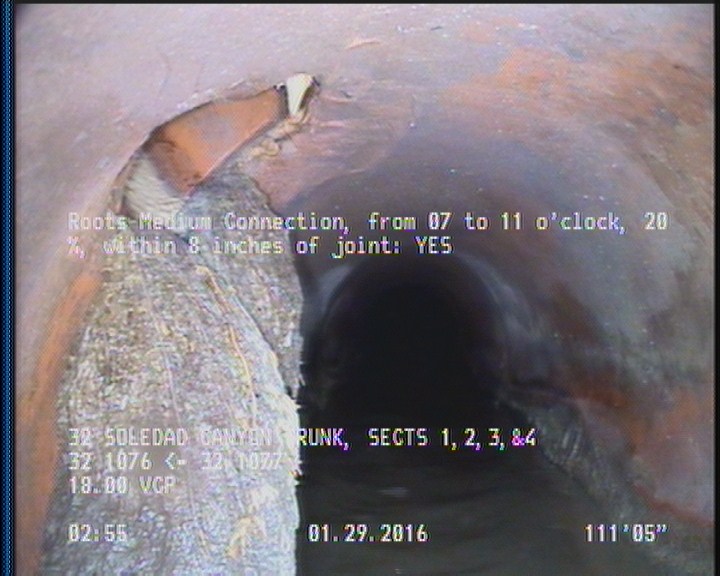

111.4 ft. - Roots Medium Connection, from 07 to 11 o'clock, 20 %, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 111.4 | RMC | — |
| 78.6 | TFC | — |
| 84.8 | TFC | — |
| 136.2 | AMH | 32 1077 |
| 0 | AMH | 32 1076 |
| 0 | MWM | — |
| 136.2 | MGO | CAPPED CONNECTION AT MH 9 O'CLOCK |
| 37.7 | TBA | — |
| 135.2 | DAGS | — |
| 2 | DAGS | — |
| 111.4 | TBA | — |
Properties (5)
- additional_info
- SC225466
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-01-29T02:48:11-08:00
- sewer_category
- GRAVITY
