Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 26, 2017, 10:09 AM

  • 01 1288_01 1227_5262017_031444.mp4

Date
05/26/2017
W/O
0635395
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00217
PipeID
P02052
Time
3:09 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0538
Sewer Name
01 SANTA FE AVENUE TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Routine Assessment
Project
20170526MDM_SANTA_FE_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 1288
Downstream MH
01 1227
Dir. of Survey
Downstream
Length Surveyed
209.9 ft.
Total Length
209.9 ft.
Structural Index
2
Structural Quick
322C
Structural Rating
48
O&M Index
2
O&M Quick
3125
O&M Rating
15
Overall Index
2
Overall Quick
—
Overall Rating
63
Pipe schematic from manhole 01 1288 to 01 1227
MH: 01 1288MH: 01 1227downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:15AM0 ft. MWM - Water Mark, 40 %of cross sectional area3.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT3.3 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL5.7 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL5.7 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE8.1 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL8.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL10.8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H10.8 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H13.3 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL13.3 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H15.8 ft. FC - Fracture Circumferential, from 09 to 02 o'clock, within 8 inches of joint: YES - SSL18.6 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H18.6 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H20.9 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL20.9 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SSL23.4 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H23.4 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H25.8 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H28 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H30.7 ft. MGO - General Observation - 15" VCP30.7 ft. FL - Fracture Longitudinal, at 09 TO 3 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS30.7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS START30.7 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS30.7 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS51.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: NO70.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open107 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES122.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open123.3 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES147.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES, Start163.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open172.2 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR - 2%181.7 ft. RMJ - Roots Medium Joint, from 09 to 04 o'clock, 10 %, within 8 inches of joint: YESR184.7 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start - 5%192.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES, Finish202.3 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open-100% ROOTS206.1 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Finish - 5%209.5 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - 20% AT JOINTS209.5 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - 20% AT JOINTS209.5 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - 50% AT JOINTS209.5 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - 50% AT JOINTS209.9 ft. AMH - Downstream Manhole, Survey Ends - 4:55AM

Observation photos (3)

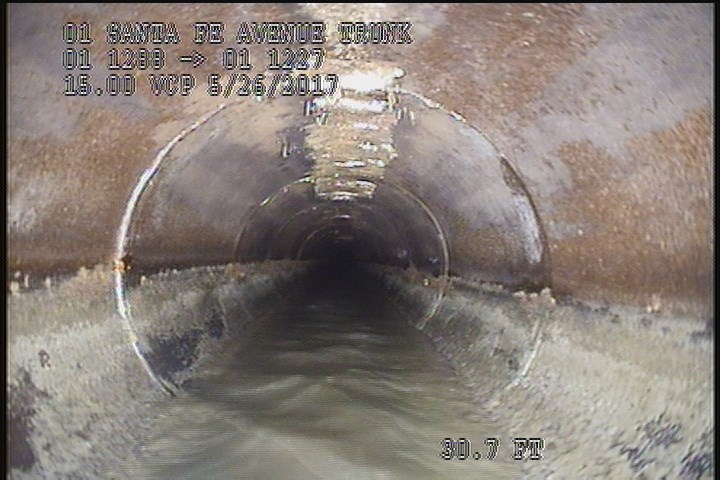

  • General Observation - 15" VCP

    30.7 ft. - General Observation - 15" VCP

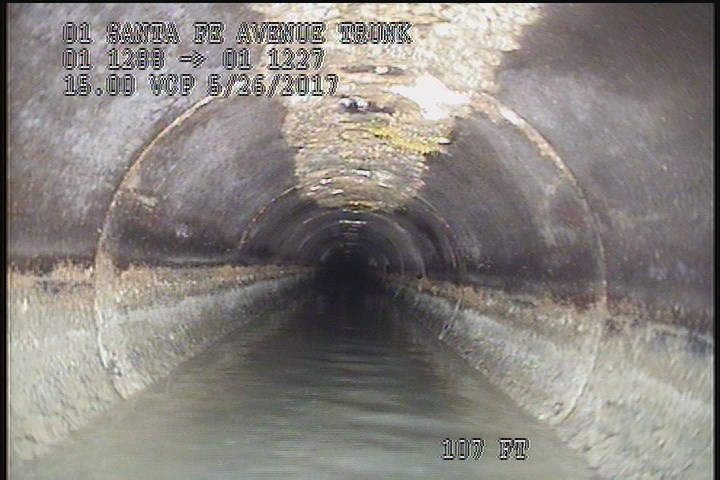

  • Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES

    107 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES

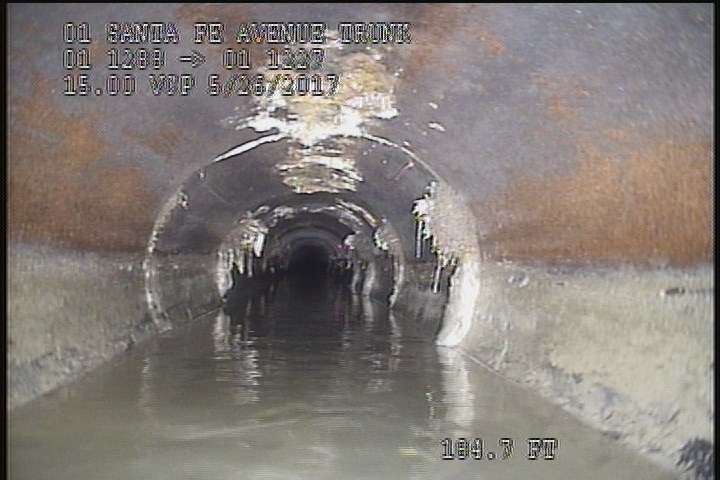

  • Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start - 5%

    184.7 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start - 5%

All inspections of P02052Work order 0635395

Observations (45)

DistanceCodeObservation
30.7MGO15" VCP
15.8FCSSL
25.8FCH
202.3TFDOpen-100% ROOTS
0MWL—
30.7FLHAIRLINE AT JOINTS
184.7RFJ5%
209.5FL20% AT JOINTS
8.1FCSL
18.6FCH
30.7FLSLIGHT AT JOINTS START
3.3FCSLIGHT
209.5FL20% AT JOINTS
172.2RFJ2%
163.8TFOpen
0AMH3:15AM
181.7RMJ—
20.9FCSL
5.7FCSL
10.8FCH
107DAGS—
23.4FCH
13.3FCSL
209.5FC50% AT JOINTS
30.7FCSLIGHT AT JOINTS
13.3FCH
5.7FCHAIRLINE
30.7FCHAIRLINE AT JOINTS
23.4FCH
20.9FCSSL
206.1RFJ5%
0MWM—
51.1DAGS—
3.3FCSL
18.6FCH
209.5FC50% AT JOINTS
10.8FCH
147.6DAGS—
192.7DAGS—
122.9TFOpen
209.9AMH4:55AM
70.1TFOpen
28FCH
8.1FCSL
123.3DSGV—

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2017-05-26T03:09:34-07:00
