Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 25, 2017, 04:00 PM

  • A 1075_C 0323_5252017_105326.mp4

Date
05/25/2017
W/O
0641967
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00958
PipeID
P21190
Time
9:00 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7415
Sewer Name
A JOA-1A LONG BEACH WRP INFLUENT SWR
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
11
Purpose
Routine Assessment
Project
20170525DF_JOA_1A_LONG_BEACH_WRP_INFLUENT_SWR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
A 1075
Downstream MH
C 0323
Dir. of Survey
Downstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole A 1075 to C 0323
MH: A 1075MH: C 0323downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:50 AM0.1 ft. MWM - Water Mark, 35 %of cross sectional area0.1 ft. MGP - General Photograph0.1 ft. MGP - General Photograph0.1 ft. MGP - General Photograph0.1 ft. MWL - Water Level, 30 %of cross sectional area0.1 ft. MGP - General Photograph2 ft. MSA - Survey Abandoned - 11:09 AM

Observation photos (4)

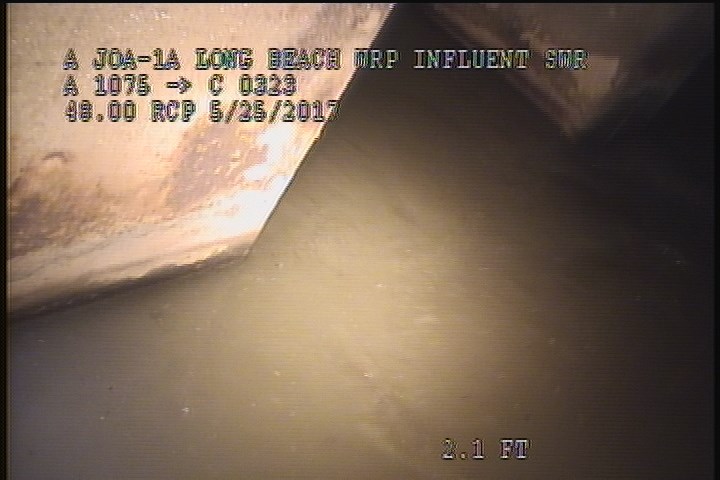

  • General Photograph

    0.1 ft. - General Photograph

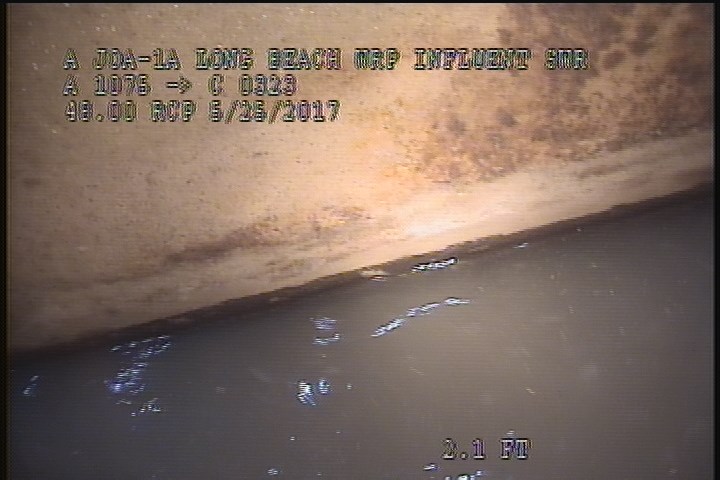

  • General Photograph

    0.1 ft. - General Photograph

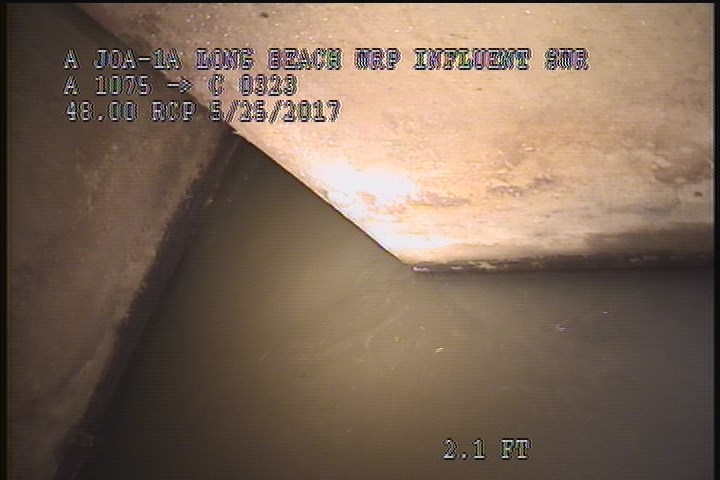

  • General Photograph

    0.1 ft. - General Photograph

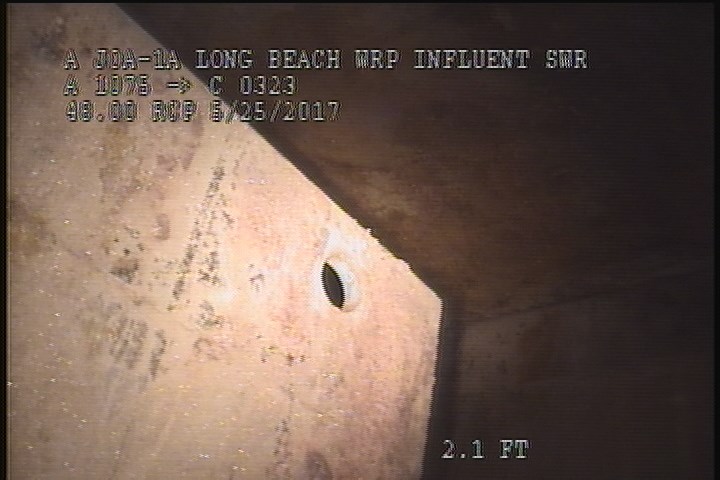

  • General Photograph

    0.1 ft. - General Photograph

All inspections of P21190Work order 0641967

Observations (8)

DistanceCodeObservation
0.1MWM—
0.1MGP—
0AMH10:50 AM
0.1MGP—
2MSA11:09 AM
0.1MGP—
0.1MWL—
0.1MGP—

Properties (3)

custom_field_two
5
customer
LACSD
datetime
2017-05-25T09:00:10-07:00
