Wastewater/Activity/PacpInspection/1.0Feb 8, 2016, 10:59 AM
32 1030_32 1029_20160208_041011.mp4
- Date
- 02/08/2016
- W/O
- 547104
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19478
- Time
- 2:59 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3095
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_547104_TV32025_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 32 1029
- Downstream MH
- 32 1030
- Dir. of Survey
- Upstream
- Length Surveyed
- 352.7 ft.
- Total Length
- 352.7 ft.
- Structural Index
- 3
- Structural Quick
- 413M
- Structural Rating
- 211
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 140
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 351
Observation photos (3)

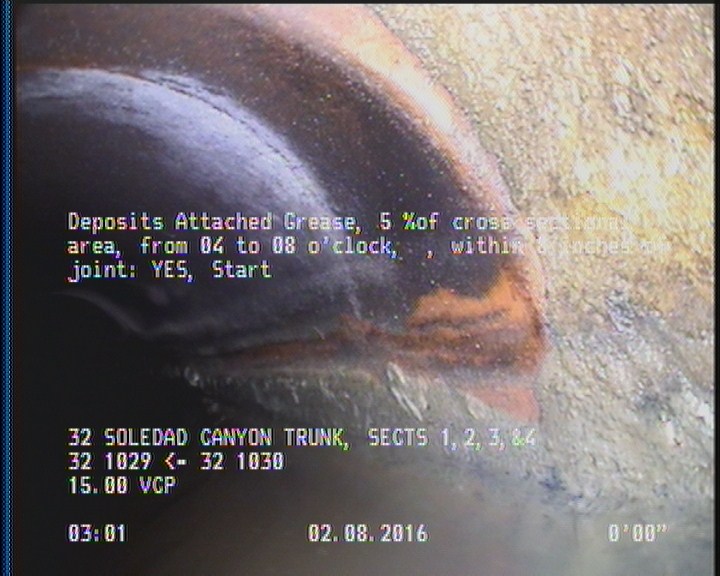

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

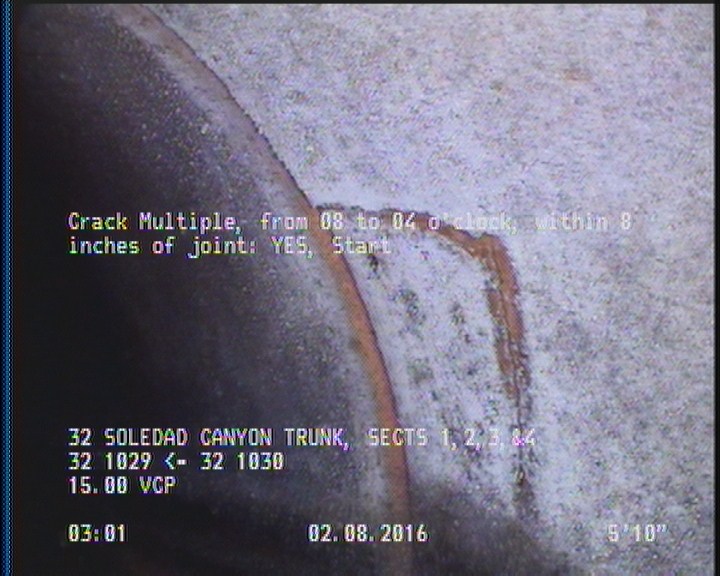

5.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SPORADICALLY

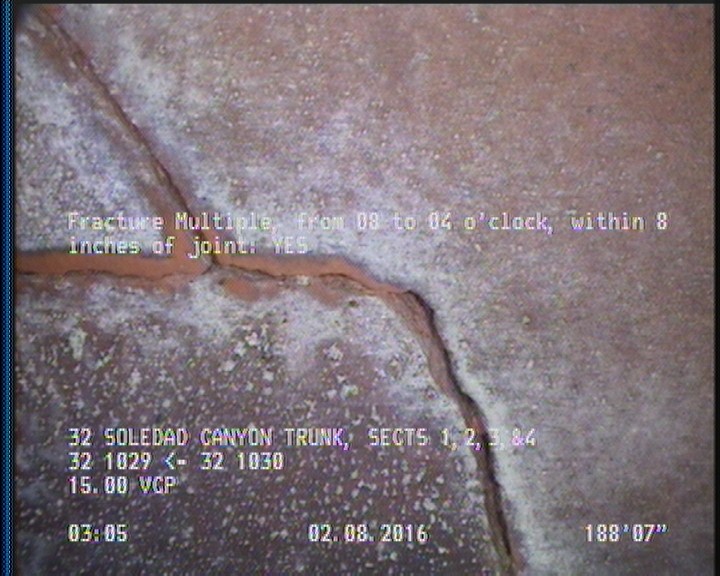

188.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 350.4 | CM | — |
| 0 | MWM | — |
| 352.7 | AMH | 32 1030 |
| 188.6 | FM | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 5.8 | CM | SPORADICALLY |
| 0 | AMH | 32 1029 |
| 350.4 | DAGS | — |
Properties (5)
- additional_info
- SC225473
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-08T02:59:01-08:00
- sewer_category
- GRAVITY
