Wastewater/Activity/PacpInspection/1.0Feb 11, 2016, 10:32 AM
32 1005_32 1190_20160211_034638.mp4
- Date
- 02/11/2016
- W/O
- 547104
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19452
- Time
- 2:32 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3099
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_547104_TV32025_JAN2016
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 32 1005
- Downstream MH
- 32 1190
- Dir. of Survey
- Downstream
- Length Surveyed
- 88.7 ft.
- Total Length
- 88.7 ft.
- Structural Index
- 3
- Structural Quick
- 3B29
- Structural Rating
- 69
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 73
Observation photos (3)

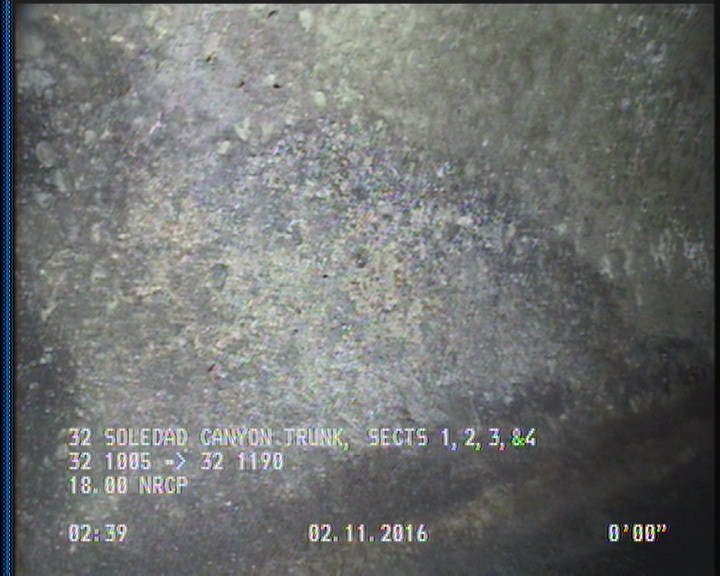

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

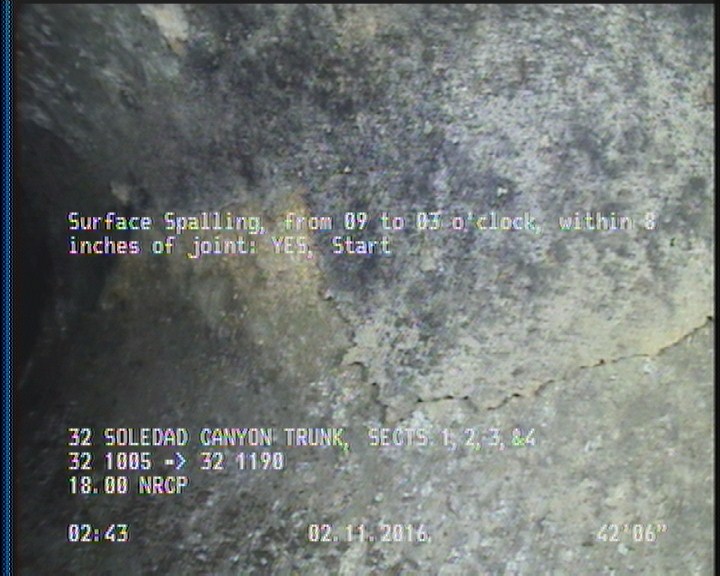

42.5 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

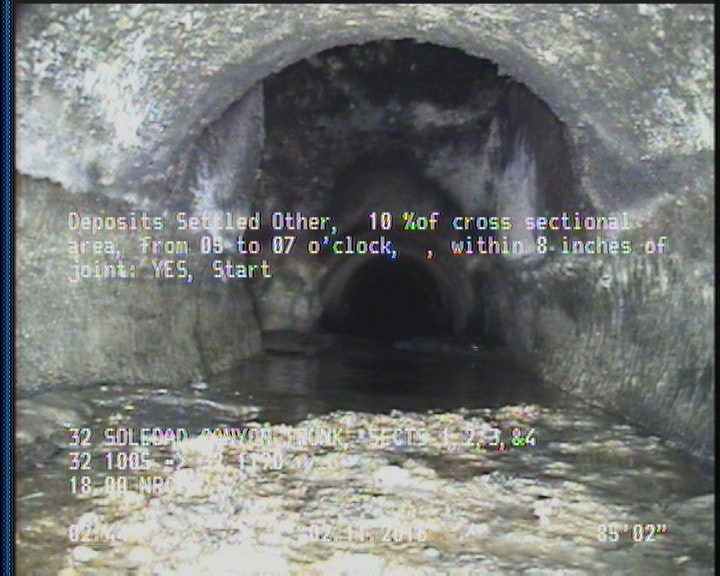

85.1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | SAV | — |
| 0 | AMH | 32 1005 |
| 88.7 | DSZ | — |
| 42.5 | SSS | — |
| 88.7 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK. |
| 0 | MWM | — |
| 88.7 | SSS | — |
| 88.7 | AMH | 32 1190 |
| 88.7 | SAV | — |
| 85.1 | DSZ | — |
Properties (5)
- additional_info
- SC225477
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-11T02:32:45-08:00
- sewer_category
- GRAVITY
