Wastewater/Activity/PacpInspection/1.0Feb 9, 2016, 09:35 AM
32 1020_32 1019_20160209_024747.mp4
- Date
- 02/09/2016
- W/O
- 547104
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19468
- Time
- 1:35 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3096
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_547104_TV32025_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 32 1020
- Downstream MH
- 32 1019
- Dir. of Survey
- Downstream
- Length Surveyed
- 392.1 ft.
- Total Length
- 392.1 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2^11
- O&M Rating
- 311
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 317
Observation photos (5)

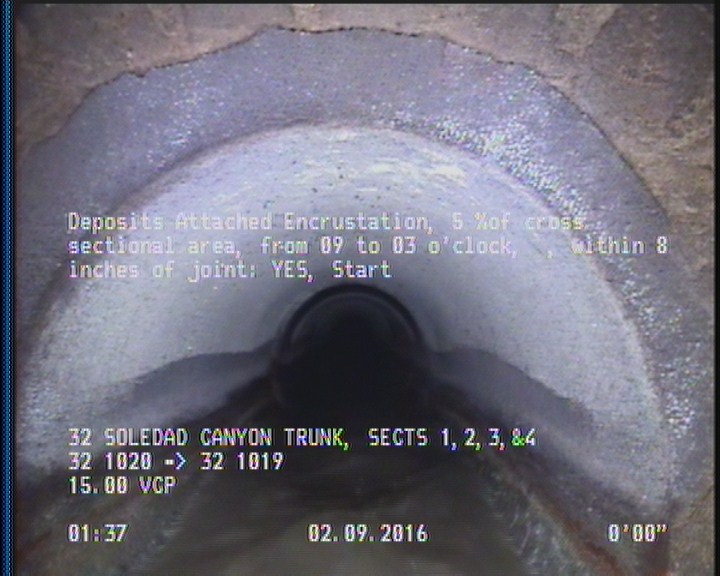

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
6.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
162 ft. - Crack Multiple, from 12 to 05 o'clock, within 8 inches of joint: YES
301.4 ft. - Roots Fine Joint, from 03 to 04 o'clock, within 8 inches of joint: YESR
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 301.4 | RFJ | — |
| 2 | DAE | — |
| 0 | AMH | 32 1020 |
| 387.5 | DAE | — |
| 162 | CM | — |
| 390.2 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 6.6 | CM | — |
| 102.7 | TFA | — |
| 0 | MWM | — |
| 392.1 | AMH | 32 1019 |
Properties (5)
- additional_info
- SC225474
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-09T01:35:28-08:00
- sewer_category
- GRAVITY
