Wastewater/Activity/PacpInspection/1.0Jan 15, 2016, 11:40 AM
20 0029_20 0028_15012016_034052.mp4
- Date
- 01/15/2016
- W/O
- 547094
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00734
- PipeID
- P18951
- Time
- 3:40 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3074
- Sewer Name
- 20 AVENUE "P-8" TRUNK
- City
- PALMDALE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_547094_TV20017_JAN2016
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 20 0029
- Downstream MH
- 20 0028
- Dir. of Survey
- Downstream
- Length Surveyed
- 323.7 ft.
- Total Length
- 323.7 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 192
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 128
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 320
Observation photos (2)

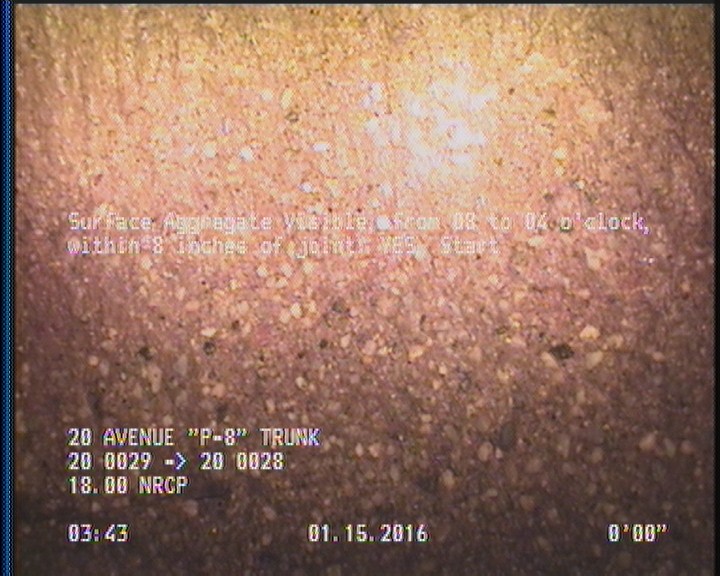

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

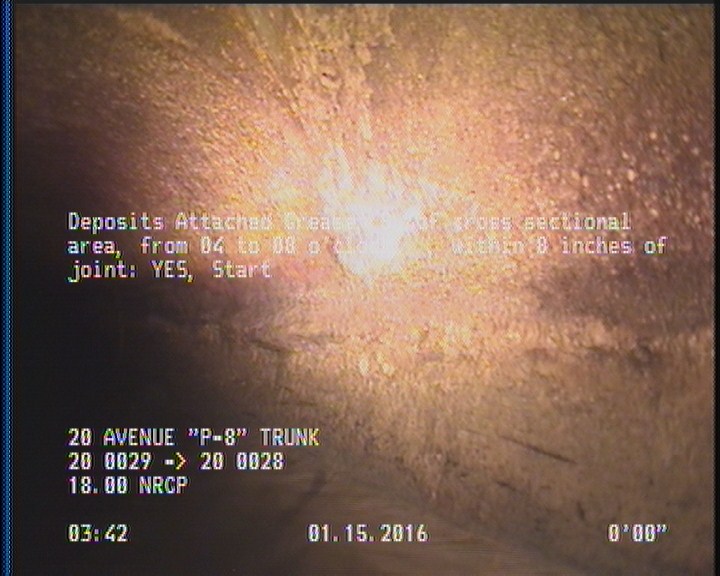

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 250.4 | TFC | — |
| 0 | MWM | — |
| 100.3 | TFC | — |
| 0 | MWL | — |
| 321.5 | DAGS | — |
| 321.5 | SAV | — |
| 124.5 | TFC | — |
| 2 | SAV | — |
| 323.7 | AMH | 20 0028 |
| 225.7 | TFC | — |
| 323.7 | MGO | CAPPED CONNECTION AT MH 9 O'CLOCK |
| 48.2 | TFC | — |
| 149.1 | TFC | — |
| 71.9 | TFC | — |
| 23.3 | TFC | — |
| 0 | AMH | 20 0029 |
| 2 | DAGS | — |
| 173.3 | TFC | — |
| 202.2 | TFC | — |
Properties (5)
- additional_info
- SC225451
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-15T03:40:36-08:00
- sewer_category
- GRAVITY
