Wastewater/Activity/PacpInspection/1.0Jan 19, 2016, 12:01 PM
20 0016_20 0015_19012016_040157.mp4
- Date
- 01/19/2016
- W/O
- 547093
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00734
- PipeID
- P18938
- Time
- 4:01 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3076
- Sewer Name
- 20 AVENUE "P-8" TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_547093_TV20018_JAN2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 20 0016
- Downstream MH
- 20 0015
- Dir. of Survey
- Downstream
- Length Surveyed
- 446 ft.
- Total Length
- 446 ft.
- Structural Index
- 3
- Structural Quick
- 3]00
- Structural Rating
- 447
- O&M Index
- 2
- O&M Quick
- 412Q
- O&M Rating
- 180
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 627
Observation photos (3)

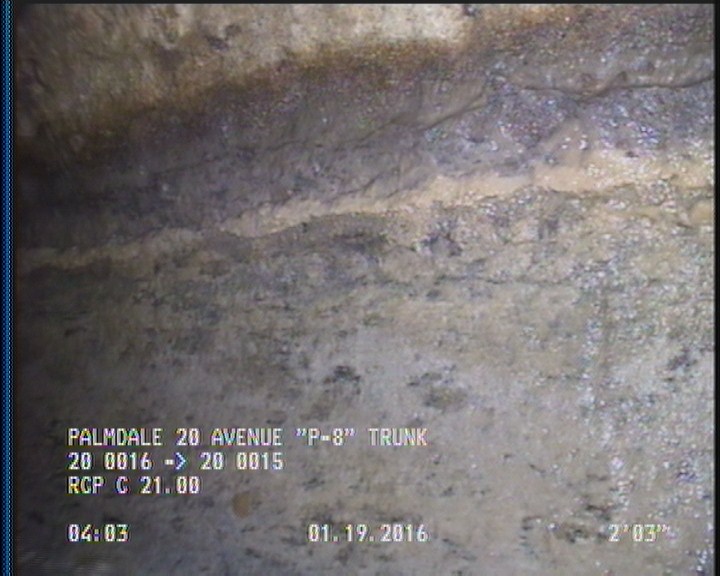

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

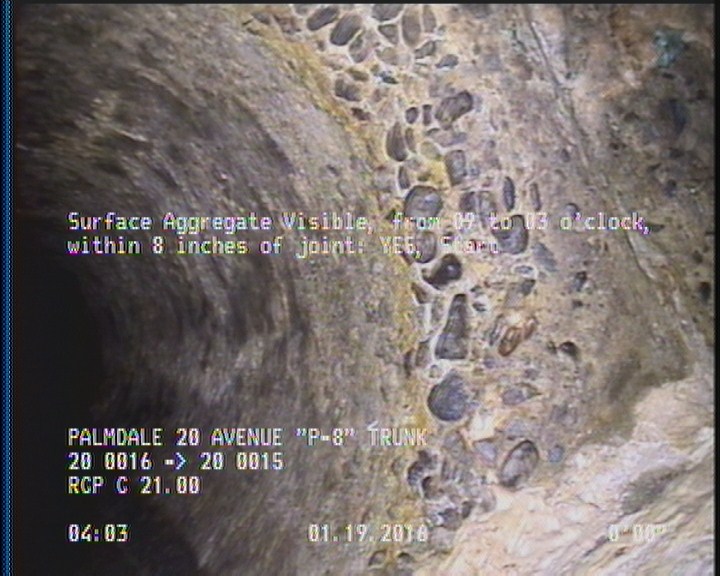

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

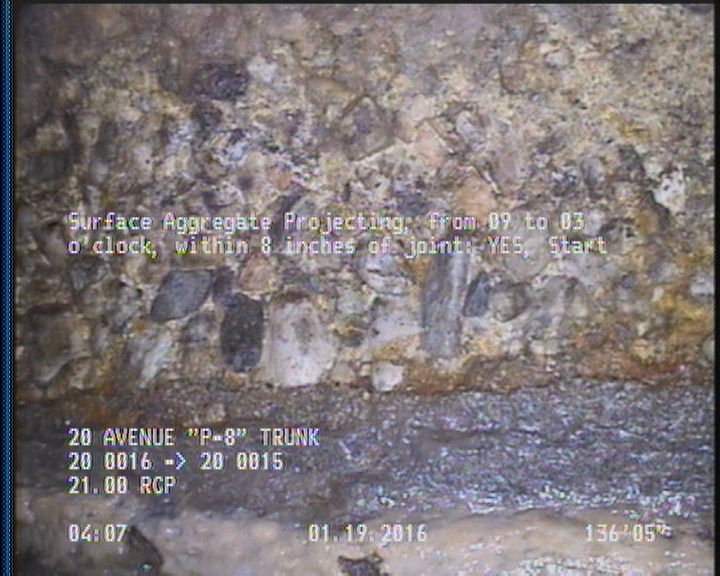

136.4 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 446 | AMH | 20 0015 |
| 443.6 | SAP | — |
| 2.3 | MGO | MAG COATING 25% |
| 0 | MWM | — |
| 0 | MWL | — |
| 446 | MGO | connection at mh 9 o'clock |
| 136.4 | SAP | — |
| 443.6 | SAV | — |
| 2 | DAGS | — |
| 2 | SAV | — |
| 134.4 | TB | — |
| 0 | AMH | 20 0016 |
| 443.6 | DAGS | — |
Properties (5)
- additional_info
- SC225453
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-19T04:01:04-08:00
- sewer_category
- GRAVITY
