Wastewater/Activity/PacpInspection/1.0Jan 20, 2016, 07:01 AM
20 0019_20 0018_19012016_230123.mp4
- Date
- 01/19/2016
- W/O
- 547093
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00734
- PipeID
- P18941
- Time
- 11:01 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3077
- Sewer Name
- 20 AVENUE "P-8" TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_547093_TV20018_JAN2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 20 0019
- Downstream MH
- 20 0018
- Dir. of Survey
- Downstream
- Length Surveyed
- 448.1 ft.
- Total Length
- 448.1 ft.
- Structural Index
- 3
- Structural Quick
- 3P00
- Structural Rating
- 261
- O&M Index
- 2
- O&M Quick
- 412Q
- O&M Rating
- 182
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 443
Observation photos (2)

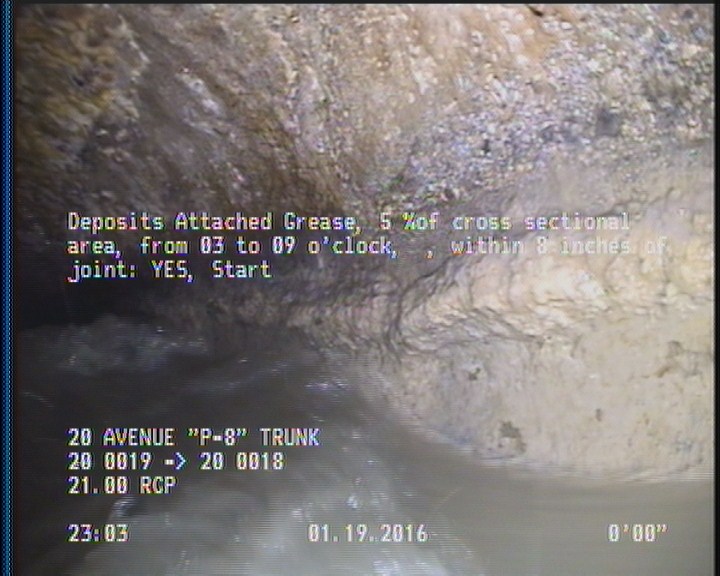

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

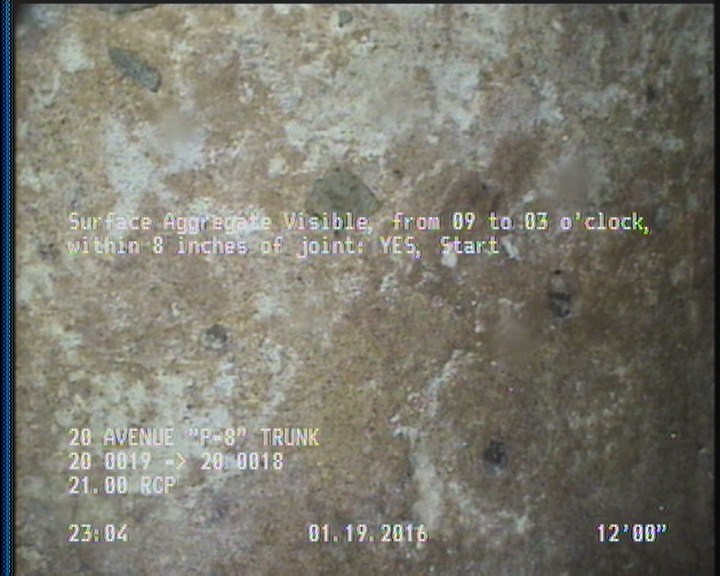

12 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 20 0019 |
| 0 | MWM | — |
| 448.1 | AMH | 20 0018 |
| 0 | MWL | — |
| 446.6 | SAV | — |
| 446.6 | DAGS | — |
| 12 | SAV | — |
| 2 | MGO | MAG COATING 50% |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC225454
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-19T23:01:08-08:00
- sewer_category
- GRAVITY
