22 0306_22 0305_20160130_093854.mp4
- Date
- 01/06/2016
- W/O
- 547068
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00794
- PipeID
- P16593
- Time
- 1:34 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- 3027
- Sewer Name
- 22 CAMERON TRUNK, SECTION 4
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_547068_TV22013_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 22 0306
- Downstream MH
- 22 0305
- Dir. of Survey
- Downstream
- Length Surveyed
- 299.3 ft.
- Total Length
- 299.3 ft.
- Structural Index
- 2
- Structural Quick
- 3325
- Structural Rating
- 23
- O&M Index
- 1
- O&M Quick
- 2114
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 29
Observation photos (13)

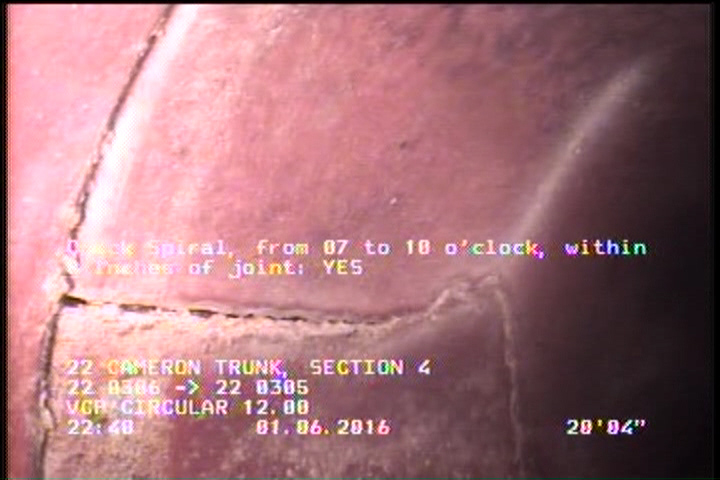

20.3 ft. - Crack Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES

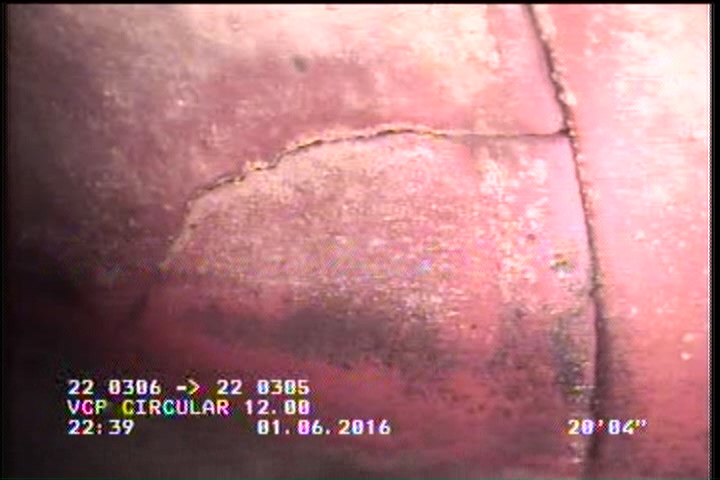

20.3 ft. - Crack Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES

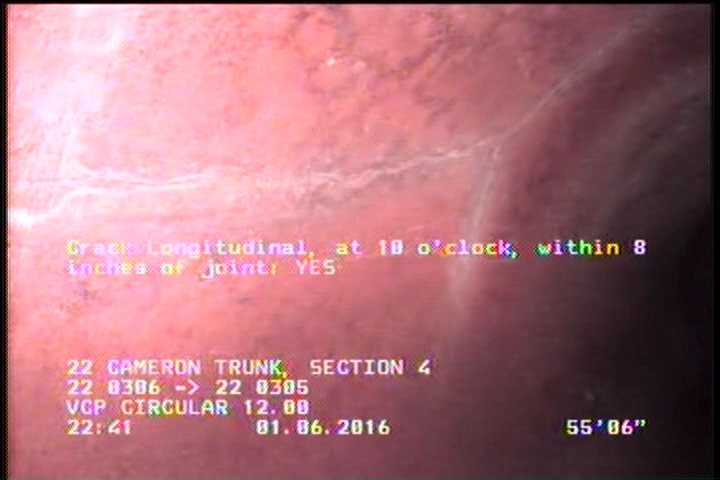

55.5 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

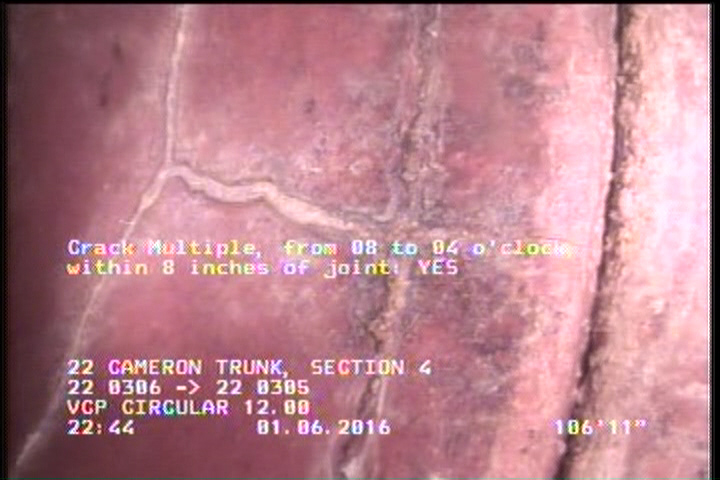

106.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

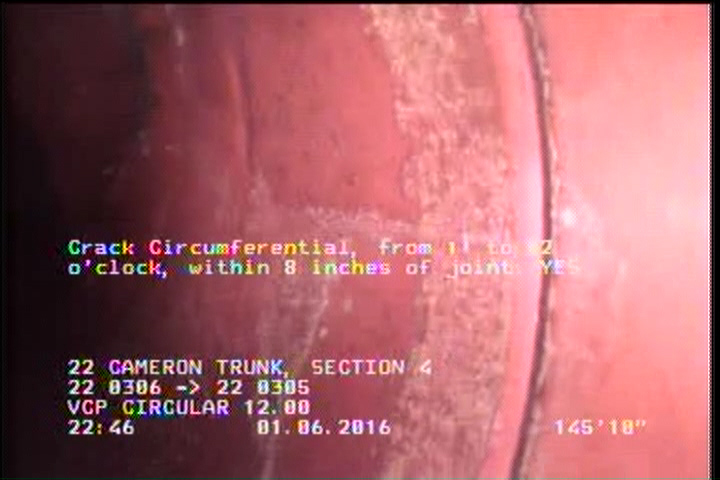

145.8 ft. - Crack Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES

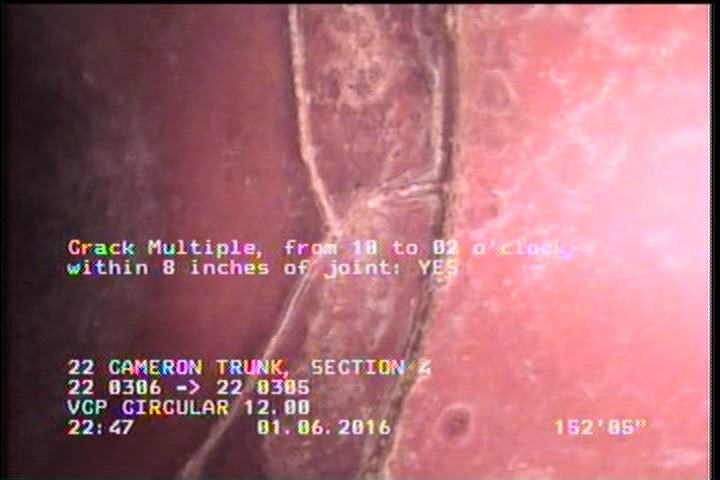

152.4 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

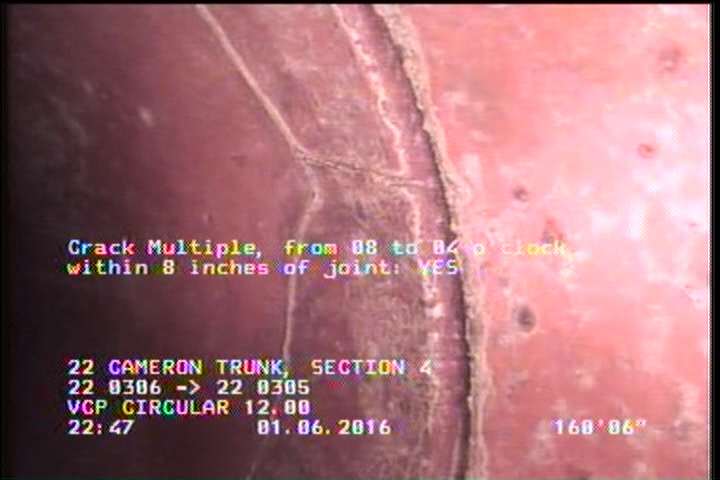

160.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

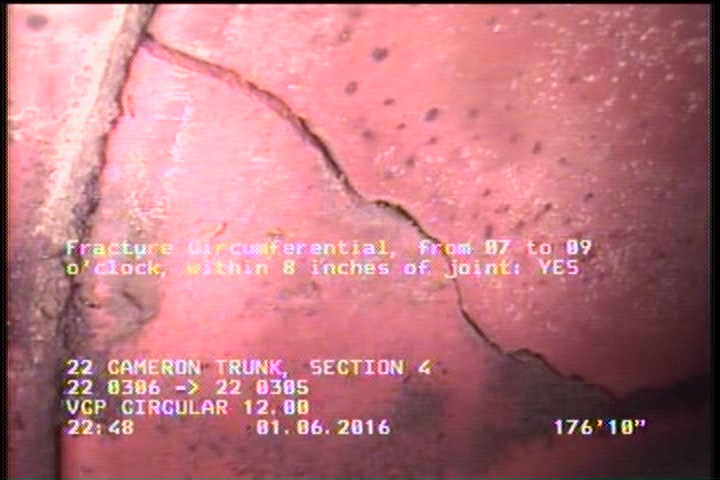

176.8 ft. - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES

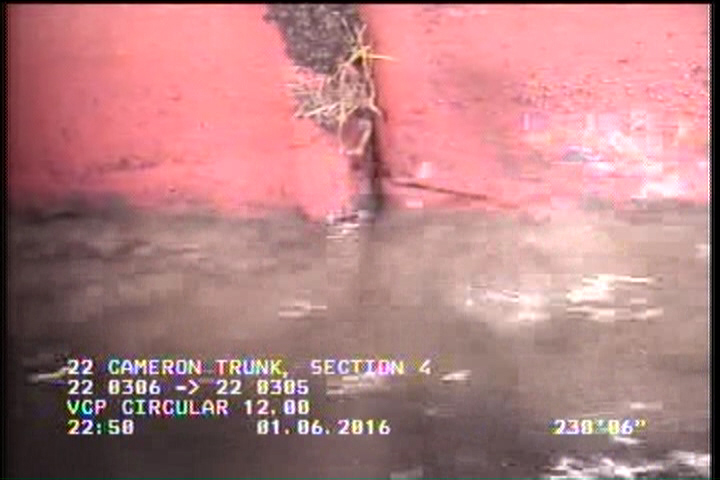

230.5 ft. - Crack Longitudinal, at 05 o'clock, within 8 inches of joint: YES

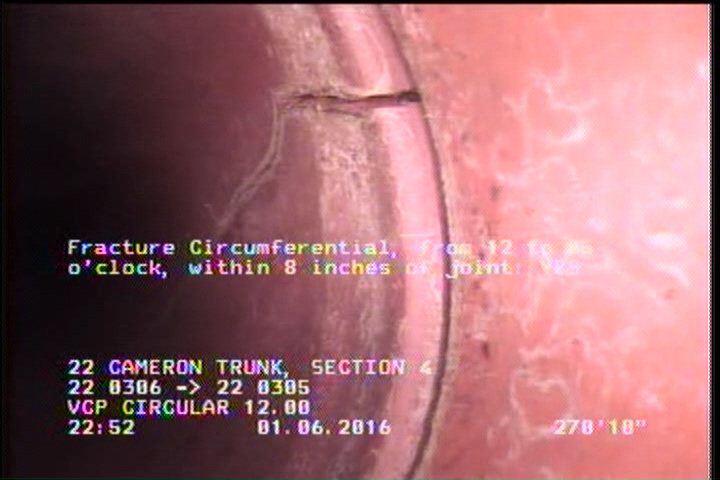

270.8 ft. - Fracture Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES

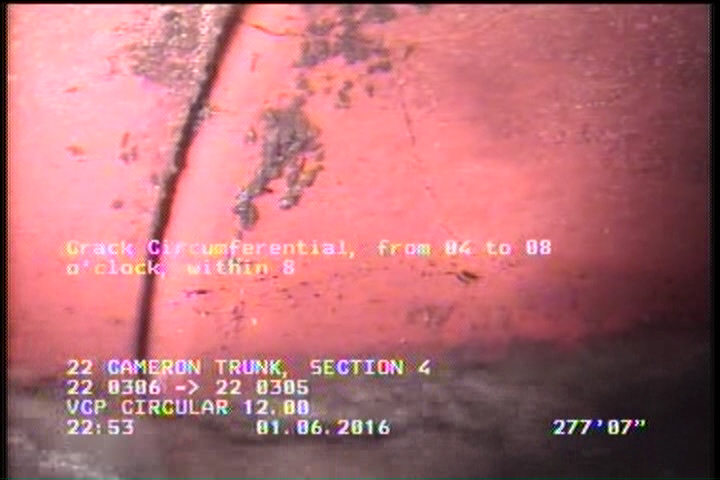

277.6 ft. - Crack Circumferential, from 04 to 08 o'clock, within 8 inches of joint: YES

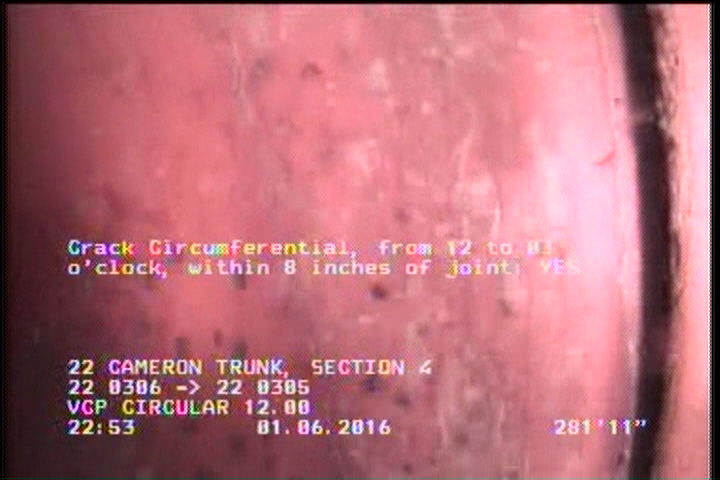

281.9 ft. - Crack Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES

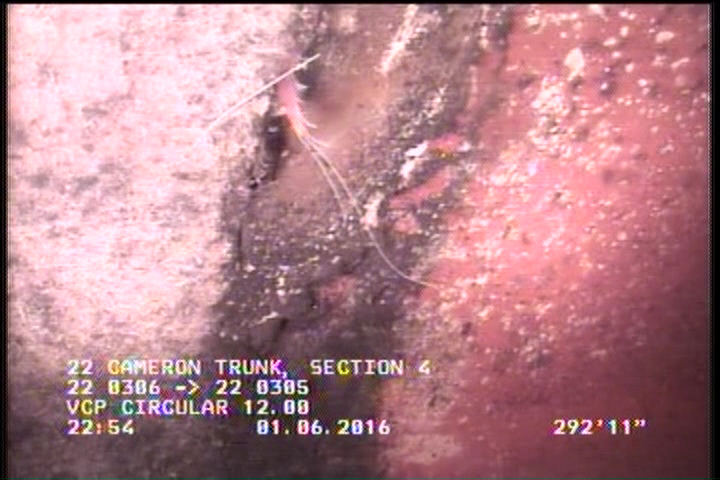

292.9 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES
Observations (34)
| Distance | Code | Observation |
|---|---|---|
| 81.3 | TFC | — |
| 299.3 | MGO | LATERAL AT MH 3 O' CLOCK ACTIVE |
| 128.6 | TFC | — |
| 299.3 | AMH | 22 0305 |
| 152.4 | CM | — |
| 0 | MGO | LATERAL AT MH, 9 O' CLOCK, ACTIVE |
| 277.6 | CC | — |
| 299.3 | VC | — |
| 20.3 | CS | — |
| 281.9 | CC | — |
| 145.8 | CC | — |
| 106.9 | CM | — |
| 230.5 | CL | — |
| 283.4 | TFC | — |
| 270.8 | FC | — |
| 210.6 | TFC | — |
| 147.2 | TFA | — |
| 221 | TFC | — |
| 81.5 | RPP | POINT REPAIR |
| 295.4 | DAGS | — |
| 29.9 | TFC | — |
| 0 | AMH | 22 0306 |
| 0 | MWL | — |
| 276.8 | TFC | — |
| 20.3 | CC | — |
| 55.5 | CL | — |
| 230.5 | RFJ | — |
| 0 | VC | — |
| 292.9 | RFJ | — |
| 176.8 | FC | — |
| 299.3 | MGO | LATERAL AT MH 9 O' CLOCK ACTIVE |
| 160.5 | CM | — |
| 0 | MGO | LATERAL AT MK 3 O' CLOCK ACTIVE |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC224620
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-06T13:34:20-08:00
- sewer_category
- GRAVITY
