Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 6, 2016, 09:34 PM

  • 22 0308_22 0307_20160329_134152.mp4

Date
01/06/2016
W/O
547068
Weather
Dry
Operator/Surveyor
ROMAN VARGAS
Sewer ID
Z00794
PipeID
P16595
Time
1:34 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3027
Sewer Name
22 CAMERON TRUNK, SECTION 4
City
WEST COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_547068_TV22013_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
22 0308
Downstream MH
22 0307
Dir. of Survey
Downstream
Length Surveyed
283.5 ft.
Total Length
283.5 ft.
Structural Index
2
Structural Quick
3226
Structural Rating
19
O&M Index
2
O&M Quick
2J12
O&M Rating
116
Overall Index
2
Overall Quick
—
Overall Rating
135
Pipe schematic from manhole 22 0308 to 22 0307
MH: 22 0308MH: 22 0307downstream0 ft. VC - Vermin Cockroach0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 03082 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start7.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES8.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"59 ft. FC - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES63.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES71.4 ft. CL - Crack Longitudinal, at 05 o'clock, within 8 inches of joint: YES76.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"78 ft. CL - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES82 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES103.4 ft. TFI - Tap Factory Made Intruding, at 10 o'clock, -, -, within 8 inches of joint: YES, 4", 1" - LINER120.8 ft. CC - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES146.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"193.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"200.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"242.1 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES243.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"271 ft. VC - Vermin Cockroach272.9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES280.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish283.4 ft. MGO - General Observation - LATERAL AT MH 9 O' CLOCK ACTIVE283.5 ft. AMH - Downstream Manhole, Survey Ends - 22 0307

Observation photos (9)

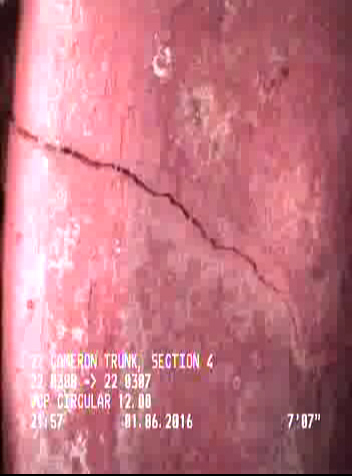

  • Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES

    7.6 ft. - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES

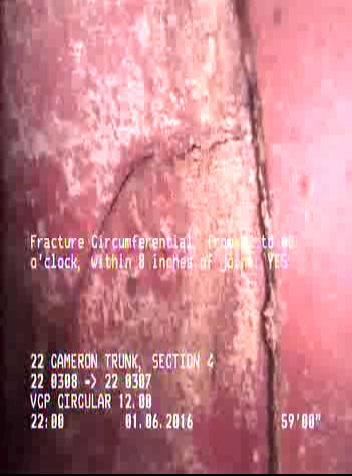

  • Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES

    59 ft. - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES

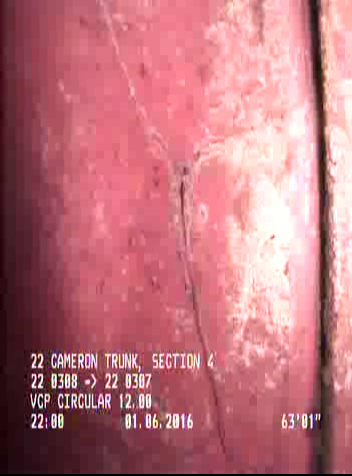

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    63.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

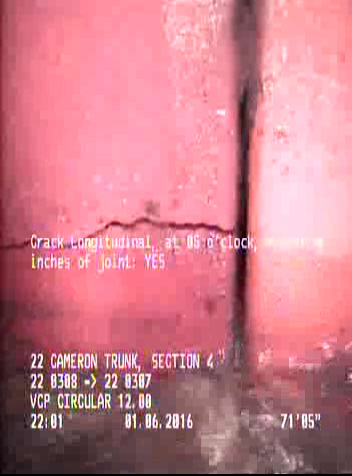

  • Crack Longitudinal, at 05 o'clock, within 8 inches of joint: YES

    71.4 ft. - Crack Longitudinal, at 05 o'clock, within 8 inches of joint: YES

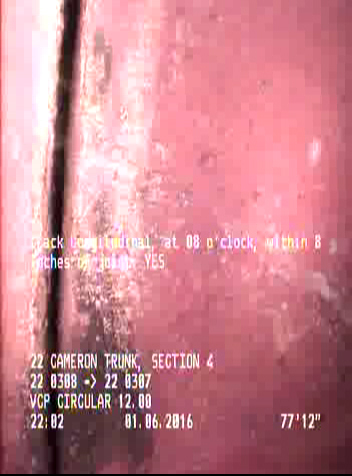

  • Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

    78 ft. - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

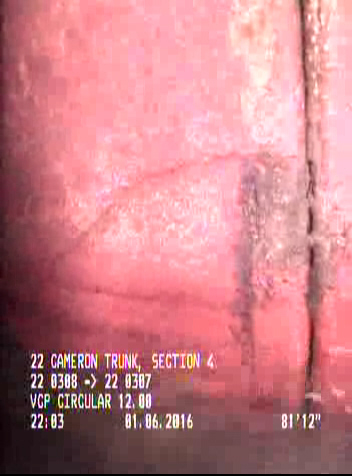

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    82 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

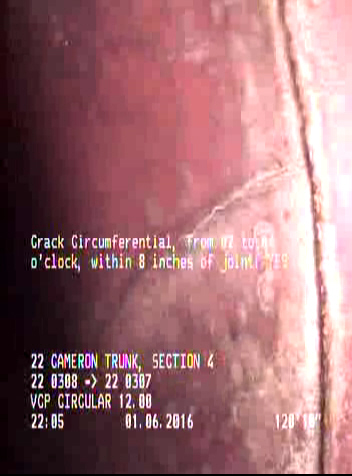

  • Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

    120.8 ft. - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

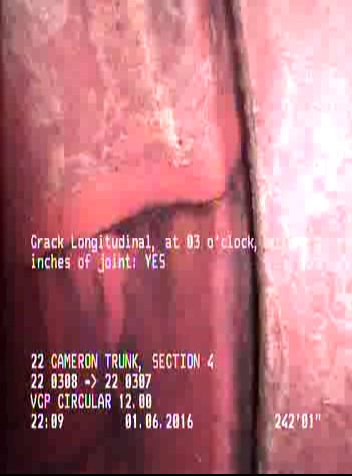

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    242.1 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

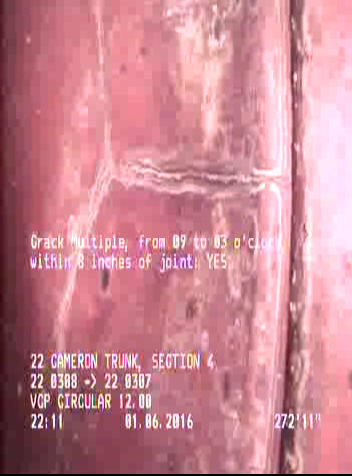

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    272.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P16595Work order 547068

Observations (25)

DistanceCodeObservation
63.1CM—
76.8TFA—
103.4TFILINER
0VC—
0MWL—
242.1CL—
280.3DAGS—
8.8TFA—
120.8CC—
7.6FC—
146.8TFA—
193.7TFA—
243.5TFA—
283.4MGOLATERAL AT MH 9 O' CLOCK ACTIVE
271VC—
78CL—
59FC—
283.5AMH22 0307
272.9CM—
0MWM—
82CL—
71.4CL—
200.3TFC—
2DAGS—
0AMH22 0308

Properties (5)

additional_info
SC224620
custom_field_two
2
customer
LACSD
datetime
2016-01-06T13:34:19-08:00
sewer_category
GRAVITY
