Wastewater/Activity/PacpInspection/1.0Jan 28, 2016, 11:15 AM
14 0239_14 1003_28012016_023932.mp4
- Date
- 01/28/2016
- W/O
- 547058
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00569
- PipeID
- P25747
- Time
- 3:15 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3087
- Sewer Name
- 14 AVENUE "H" TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_547058_TV14038_JAN2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 14 0239
- Downstream MH
- 14 1003
- Dir. of Survey
- Downstream
- Length Surveyed
- 580.3 ft.
- Total Length
- 580.3 ft.
- Structural Index
- 3
- Structural Quick
- 533l
- Structural Rating
- 909
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 909
Observation photos (4)

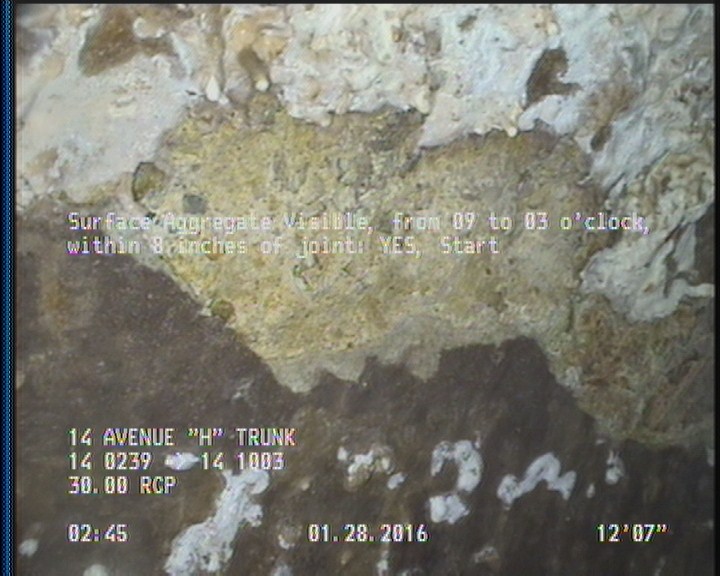

12.6 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

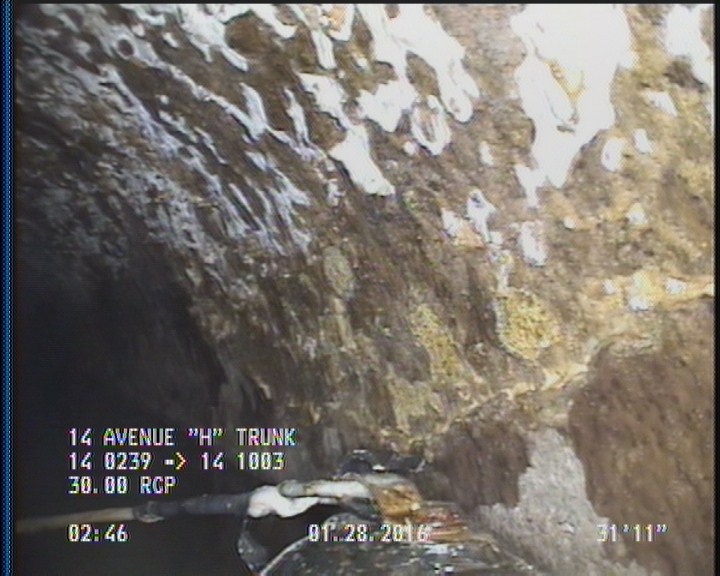

23.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

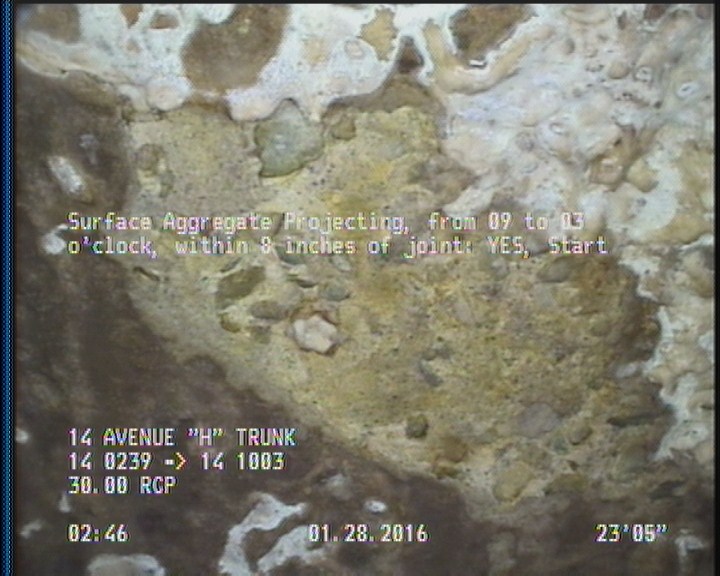

23.4 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

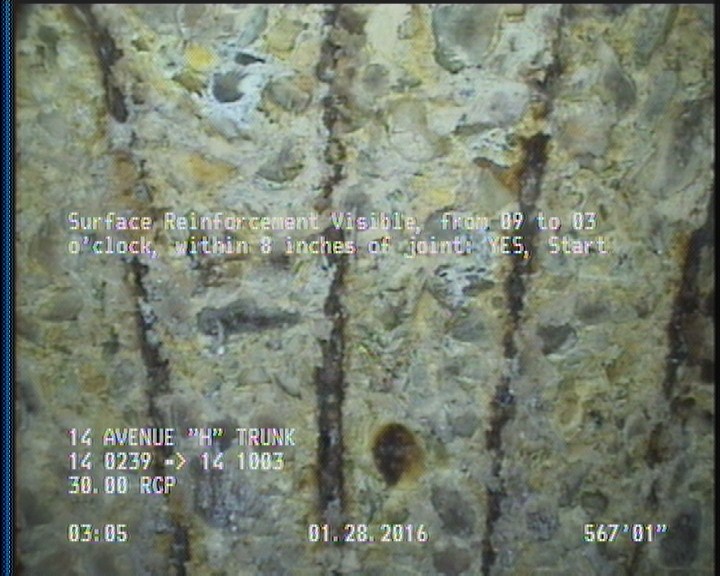

567 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 580 | SAP | — |
| 580 | SRV | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 23.4 | SSS | — |
| 0 | AMH | 14 0239 |
| 580 | SSS | — |
| 580.3 | AMH | 14 1003 |
| 580 | SAV | — |
| 567 | SRV | — |
| 12.6 | SAV | — |
| 23.4 | SAP | — |
Properties (5)
- additional_info
- SC225465
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-01-28T03:15:09-08:00
- sewer_category
- GRAVITY
