Wastewater/Activity/PacpInspection/1.0Mar 21, 2016, 08:21 AM
18 0410_18 0409_20160321_013025.mp4
- Date
- 03/21/2016
- W/O
- 557858
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00699
- PipeID
- P14245
- Time
- 1:21 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3229
- Sewer Name
- 18 SANTA FE STREET RELIEF TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_557858_TV18044_2016MAR
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 18 0410
- Downstream MH
- 18 0409
- Dir. of Survey
- Downstream
- Length Surveyed
- 130.4 ft.
- Total Length
- 130.4 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (3)

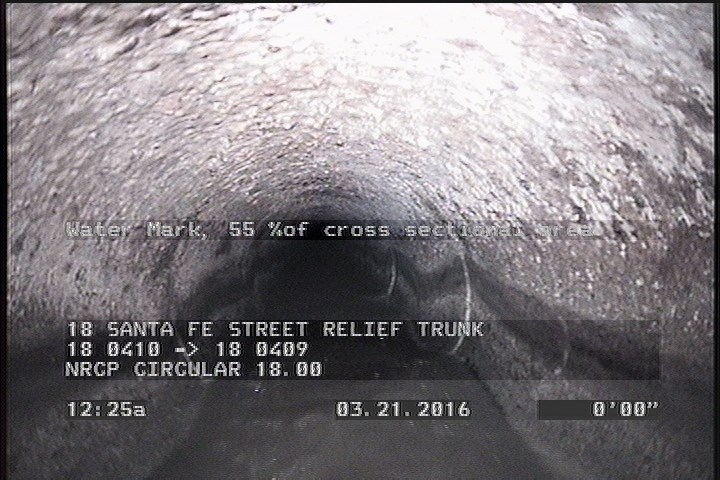

0 ft. - Water Mark, 55 %of cross sectional area

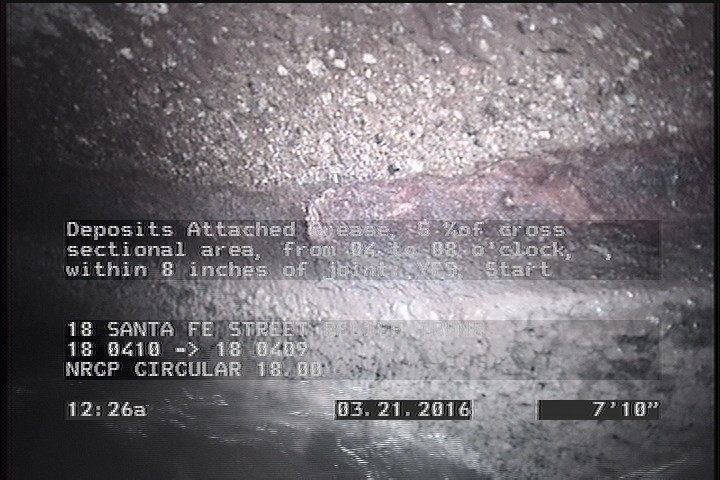

7.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

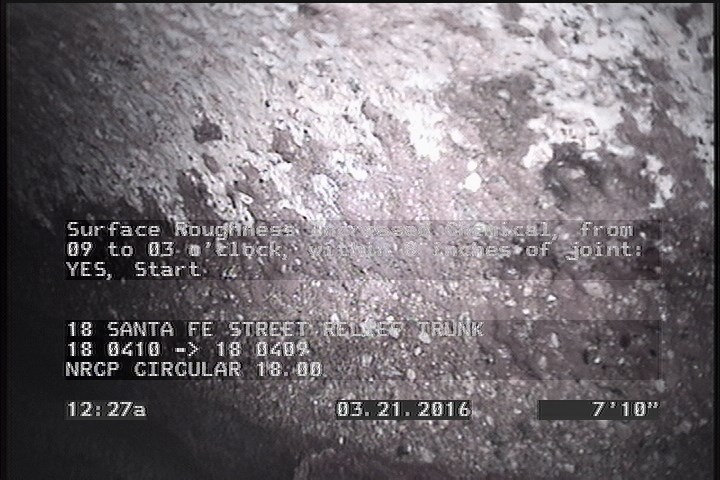

7.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 128 | DAGS | — |
| 0 | MWM | — |
| 130.4 | AMH | 18 0409 |
| 0 | AMH | 18 0410 |
| 2 | MGO | MAGNEZIUM H.O. START |
| 7.9 | SAV | — |
| 7.8 | DAGS | — |
| 127 | SAV | — |
Properties (5)
- additional_info
- SC305320
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-21T01:21:16-07:00
- sewer_category
- GRAVITY
