Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 12, 2016, 09:31 AM

  • 18 0455_18 0454_20160112_020048_.mp4

Date
01/12/2016
W/O
547025
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00691
PipeID
P14307
Time
1:31 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3034
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_547025_TV18099_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
18 0454
Downstream MH
18 0455
Dir. of Survey
Upstream
Length Surveyed
601.7 ft.
Total Length
601.7 ft.
Structural Index
2
Structural Quick
3926
Structural Rating
41
O&M Index
1
O&M Quick
2114
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
47
Pipe schematic from manhole 18 0454 to 18 0455
MH: 18 0454MH: 18 0455upstream0 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK ACTIVE0 ft. VC - Vermin Cockroach0 ft. AMH - Downstream Manhole, Survey Ends - 18 04551 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish3.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES6.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish24.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start48.1 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish57.5 ft. VC - Vermin Cockroach117 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"132.2 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start140 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish210.5 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start226.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish255.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start260.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES276.2 ft. RFJ - Roots Fine Joint, from 11 to 01 o'clock, within 8 inches of joint: YES298.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish335.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"345.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start350.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES373.5 ft. CC - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish383.8 ft. CC - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES, Start391 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish404.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start409.7 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES409.7 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES417.1 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES419.9 ft. CC - Crack Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES422.3 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES590.8 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES594.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES599.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start601.7 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK ACTIVE601.7 ft. MGO - General Observation - UP MH-18 0455 PAVE OVER CANNOT LOCATE601.7 ft. VC - Vermin Cockroach601.7 ft. AMH - Downstream Manhole, Survey Begins - 18 0455601.7 ft. MWL - Water Level, 15 %of cross sectional area601.7 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (18)

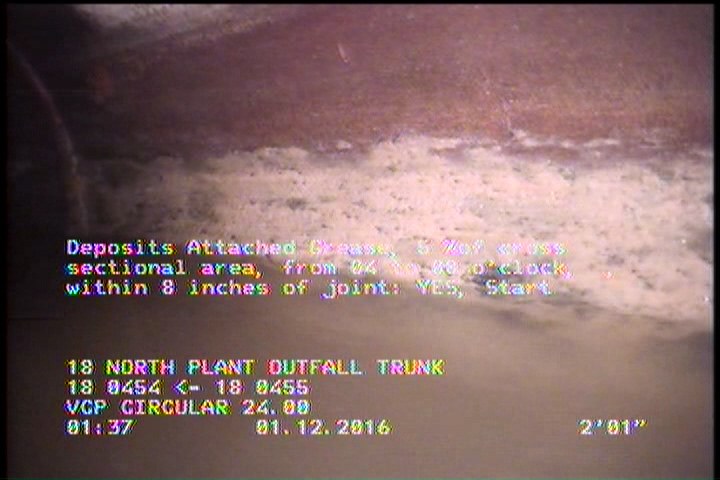

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    7.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    10.9 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    179.4 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

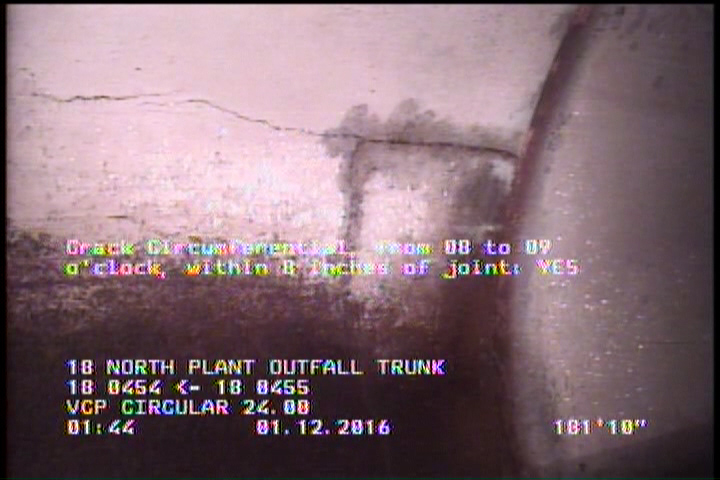

  • Crack Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES

    181.8 ft. - Crack Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES

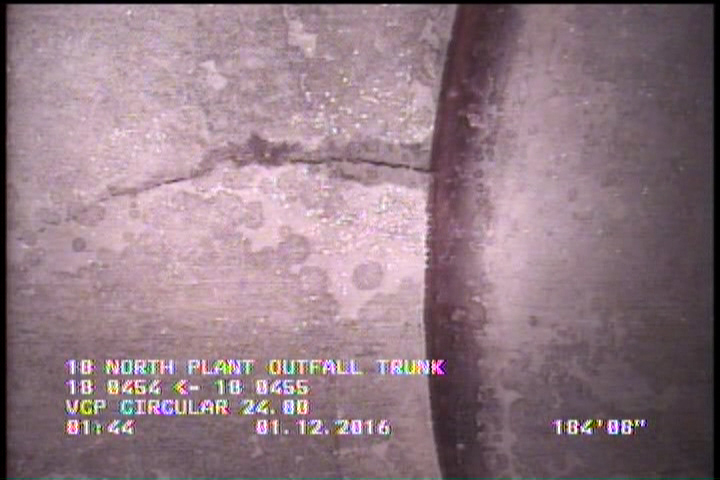

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    184.6 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

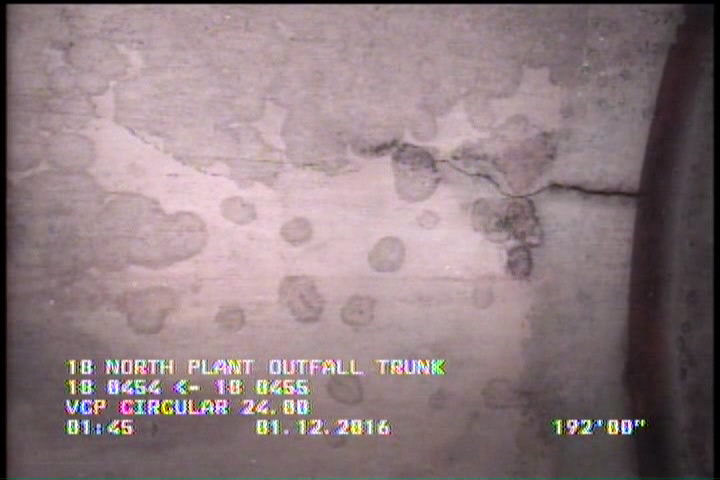

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    192 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

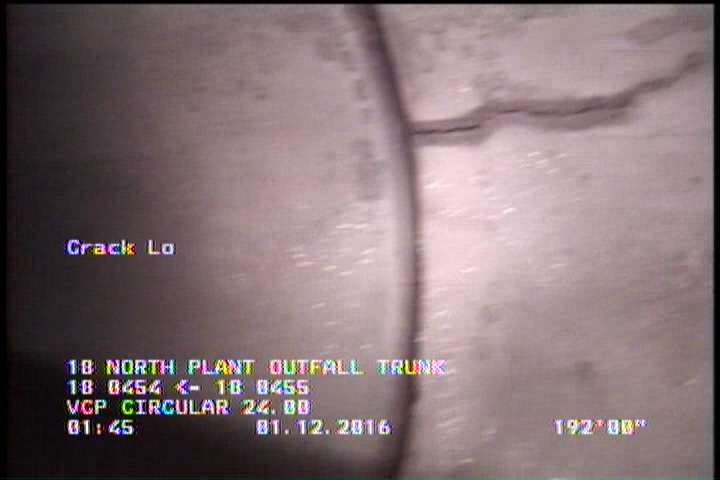

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    192 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    197.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

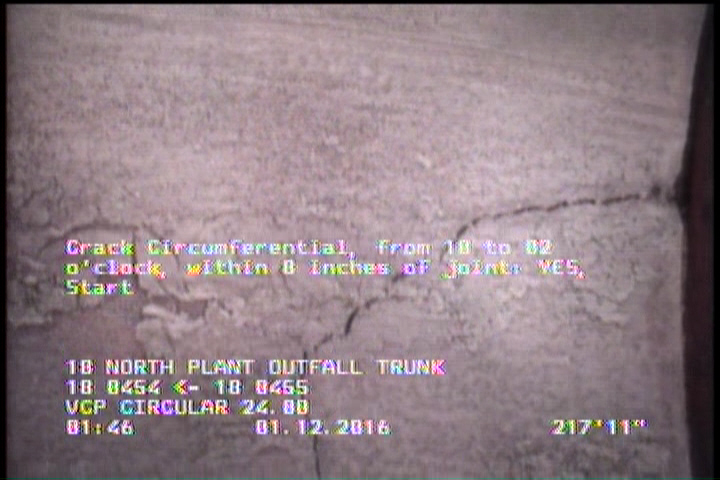

  • Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    217.9 ft. - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

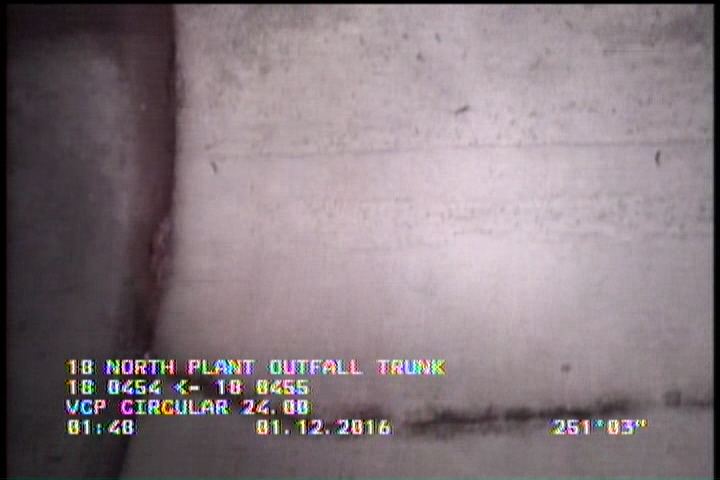

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    251.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

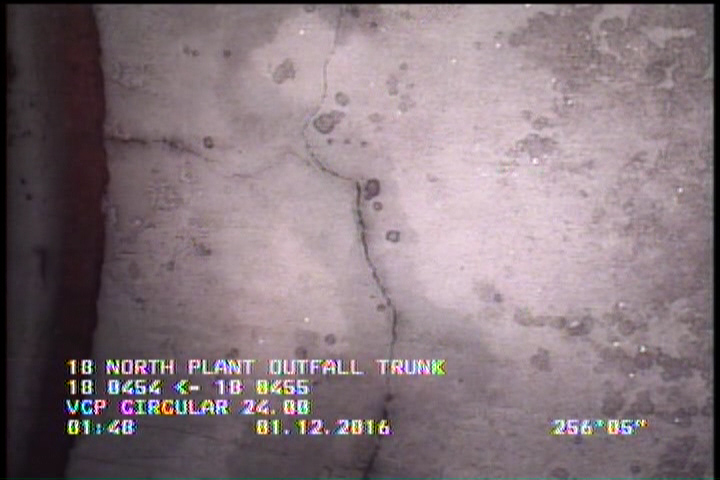

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    256.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

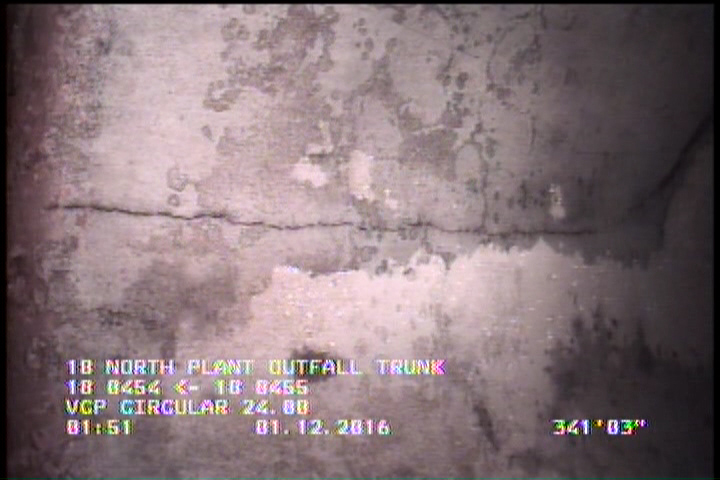

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    341.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

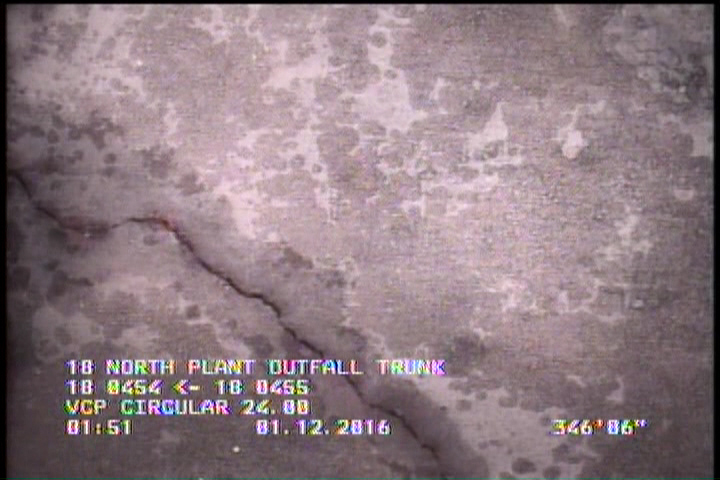

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    346.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

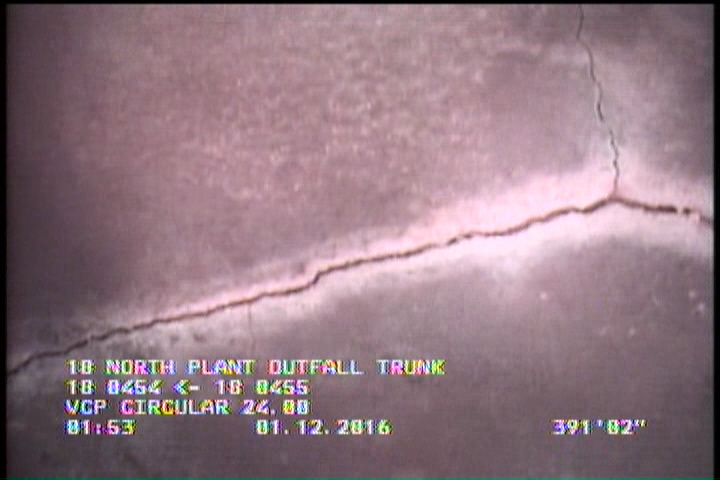

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    391.2 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

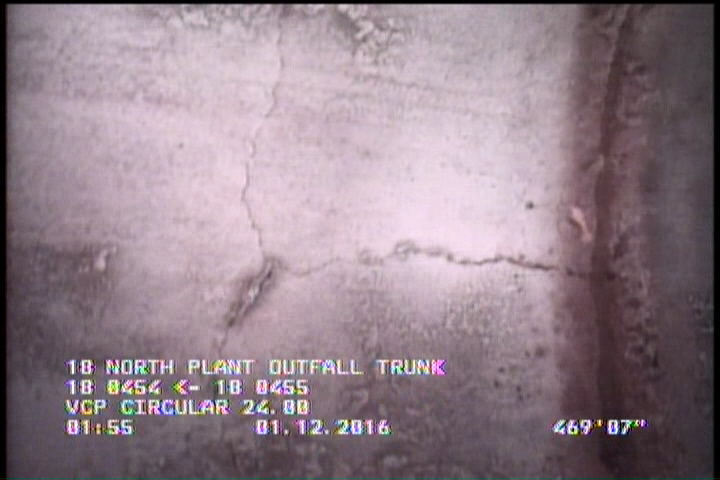

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    469.5 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

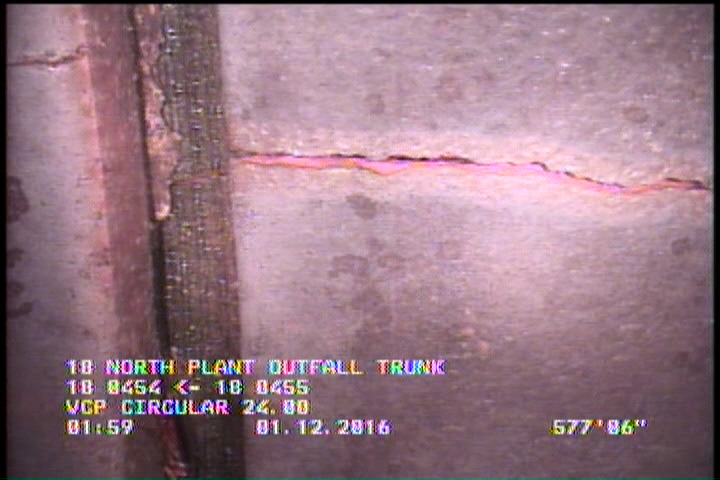

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    577.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

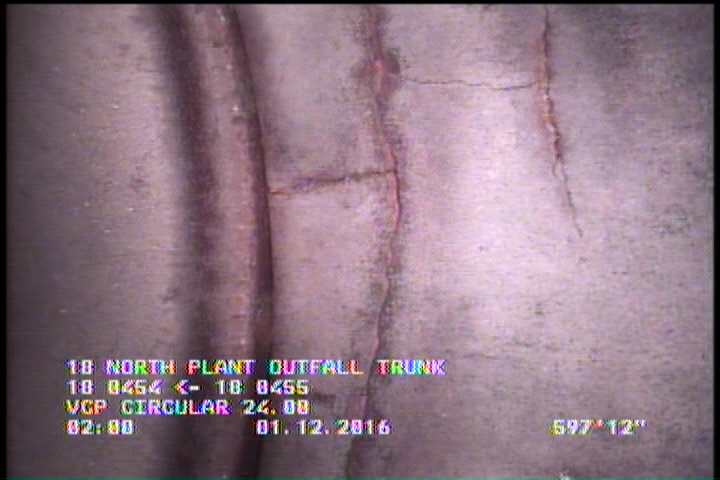

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    598 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P14307Work order 547025

Observations (39)

DistanceCodeObservation
0MGOLATERAL AT MH 3 O'CLOCK ACTIVE
7.6CM—
181.8CC—
598CM—
0MGOUP MH-18 0455 PAVE OVER CANNOT LOCATE
469.5CM—
595.6CL—
553.6CM—
184.6CL—
0VC—
266.6TFA—
210.7CM—
197.3CM—
303.4CM—
325.5RFJ—
346.5CM—
251.2CM—
0AMH18 0455
192CL—
0MWL—
577.5CL—
484.7TFA—
10.9CL—
179.4CM—
228.2CC—
0MWM—
217.9CC—
2.1DAGS—
374.9CM—
544.2VC—
256.4CM—
600.7DAGS—
601.7MGOLATERAL AT MH 3 O'CLOCK ACTIVE
341.2CL—
601.7VC—
461.7CM—
391.2CM—
192CL—
601.7AMH18 0455

Properties (5)

additional_info
SC224628
custom_field_two
3
customer
LACSD
datetime
2016-01-12T01:31:33-08:00
sewer_category
GRAVITY
