Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 28, 2016, 10:22 AM

  • 01 1081_01 0943_20160128_022159.mp4

Date
01/28/2016
W/O
552639
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00210
PipeID
P01930
Time
2:22 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3129
Sewer Name
01 HUNTINGTON PARK TRUNK
City
SOUTH GATE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
RFIR_WO_552639_TV01246_FEB2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 1081
Downstream MH
01 0943
Dir. of Survey
Downstream
Length Surveyed
376.4 ft.
Total Length
376.4 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2N00
O&M Rating
148
Overall Index
2
Overall Quick
—
Overall Rating
153
Pipe schematic from manhole 01 1081 to 01 0943
MH: 01 1081MH: 01 0943downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 10810 ft. MWM - Water Mark, 30 %of cross sectional area3.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start13.5 ft. CM - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES236.5 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES374.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish376.4 ft. AMH - Downstream Manhole, Survey Ends - 01 0943376.4 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK

Observation photos (3)

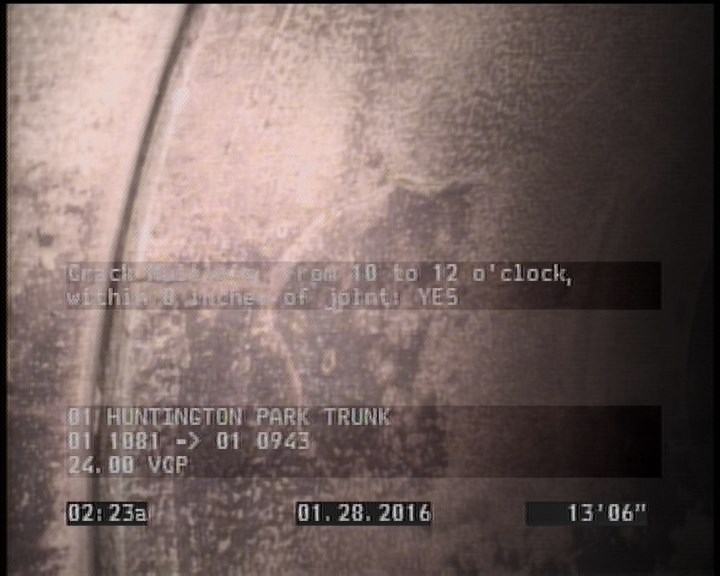

  • Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES

    13.5 ft. - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES

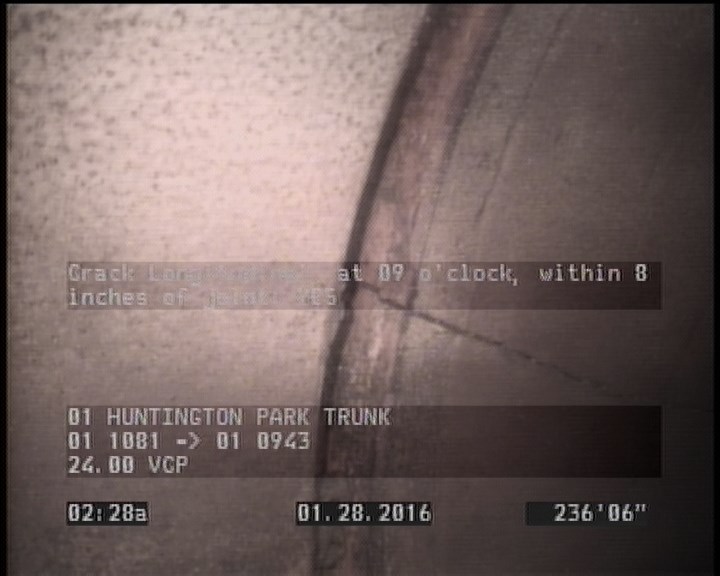

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    236.5 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

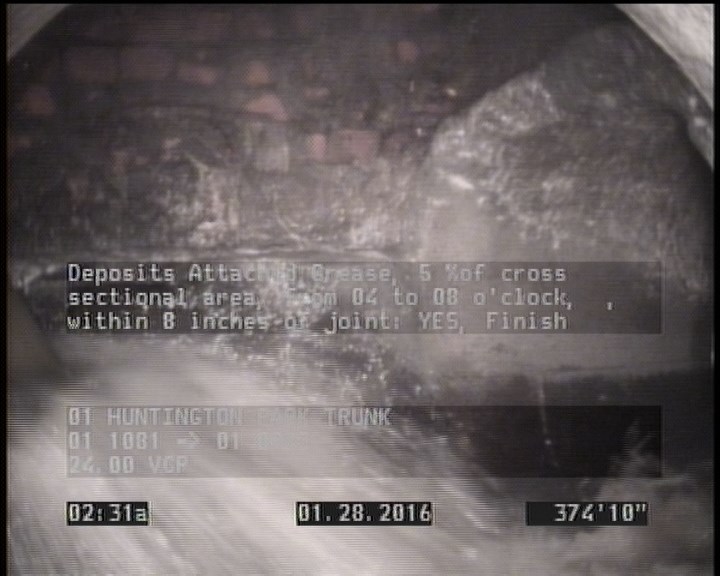

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

    374.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

All inspections of P01930Work order 552639

Observations (9)

DistanceCodeObservation
376.4AMH01 0943
0MWL—
236.5CL—
0AMH01 1081
3.3DAGS—
374.8DAGS—
376.4MGOLATERAL AT MH 9 OCLOCK
0MWM—
13.5CM—

Properties (5)

additional_info
SC225516
custom_field_two
3
customer
LACSD
datetime
2016-01-28T02:22:00-08:00
sewer_category
GRAVITY
