Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 11, 2016, 11:21 AM

  • C 0683_C 0682_11032016_032159.mp4

Date
03/11/2016
W/O
547113
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00126
PipeID
P24966
Time
3:21 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3286
Sewer Name
C JOINT OUTFALL C - UNIT 4A
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
20
Purpose
Routine Assessment
Project
RFIR_WO_547113_TV03150_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
C 0683
Downstream MH
C 0682
Dir. of Survey
Downstream
Length Surveyed
85.5 ft.
Total Length
85.5 ft.
Structural Index
3
Structural Quick
3B00
Structural Rating
48
O&M Index
2
O&M Quick
2B00
O&M Rating
34
Overall Index
2
Overall Quick
—
Overall Rating
82
Pipe schematic from manhole C 0683 to C 0682
MH: C 0683MH: C 0682downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - C 06830 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 4 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4.9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES9.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES13.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start84.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish85.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish85.5 ft. AMH - Downstream Manhole, Survey Ends - C 068285.5 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK85.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (6)

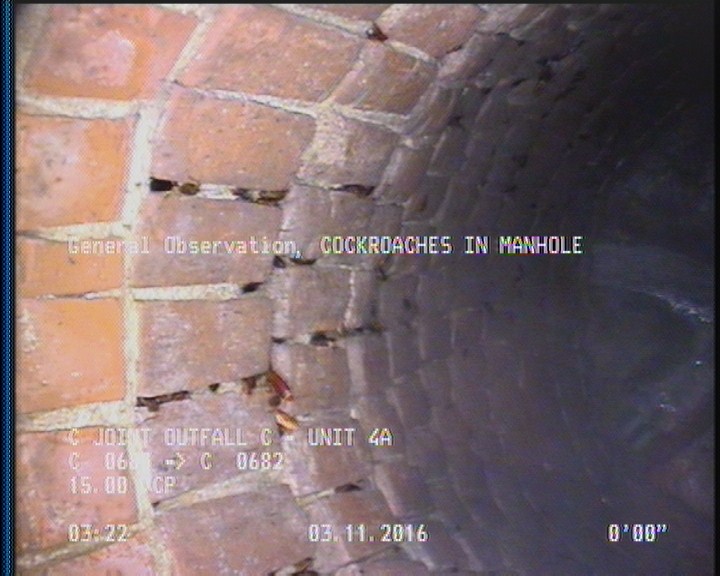

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

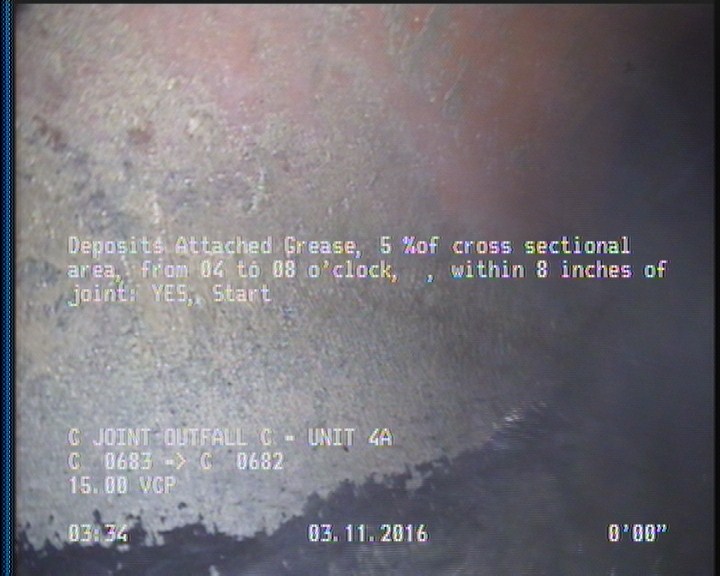

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

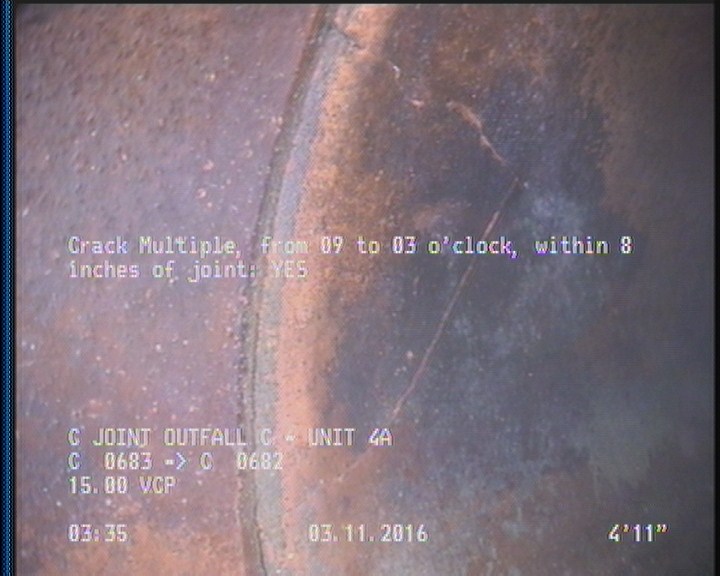

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    4.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    9.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    13.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

    85.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P24966Work order 547113

Observations (14)

DistanceCodeObservation
4.9CM—
0MWM—
85.5AMHC 0682
0AMHC 0683
85.1DAGS—
13.3CM—
85.5MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MGOACTIVE CONNECTION AT MH 4 O'CLOCK
0MWL—
85.5MGOCOCKROACHES IN MANHOLE
84.5CM—
9.4CM—
0MGOCOCKROACHES IN MANHOLE
2DAGS—

Properties (5)

additional_info
SC305410
custom_field_two
3
customer
LACSD
datetime
2016-03-11T03:21:10-08:00
sewer_category
GRAVITY
