Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 12, 2016, 08:19 AM

  • 18 0457_18 0456_20160112_013807_.mp4

Date
01/12/2016
W/O
547052
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00691
PipeID
P14309
Time
12:19 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3033
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_547052_TV18140_JAN2016
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
18 0457
Downstream MH
18 0456
Dir. of Survey
Downstream
Length Surveyed
495.3 ft.
Total Length
495.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
2113
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 18 0457 to 18 0456
MH: 18 0457MH: 18 0456downstream0 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 04570 ft. MGO - General Observation - LATERAL AT MH 9 O'CLOCK ACTIVE0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAGNESIUM H.O. START2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start102.9 ft. VC - Vermin Cockroach492.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish492.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish492.3 ft. MGO - General Observation - MAGNESIUM H.O. FINISH495.3 ft. VC - Vermin Cockroach495.3 ft. AMH - Downstream Manhole, Survey Ends - 18 0456

Observation photos (2)

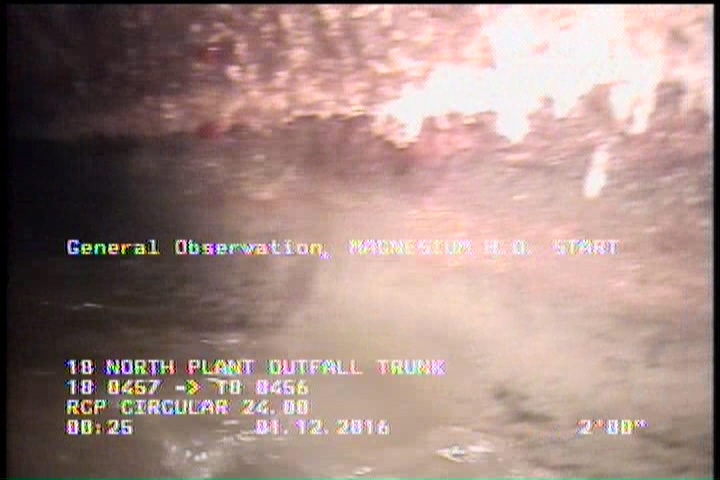

  • General Observation - MAGNESIUM H.O. START

    2 ft. - General Observation - MAGNESIUM H.O. START

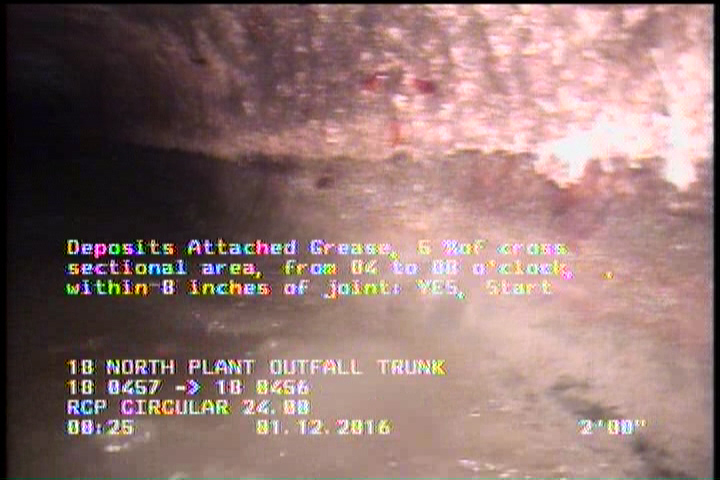

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P14309Work order 547052

Observations (14)

DistanceCodeObservation
0VC—
492.3SAV—
2SAV—
495.3VC—
0MWM—
492.3DAGS—
0AMH18 0457
492.3MGOMAGNESIUM H.O. FINISH
2MGOMAGNESIUM H.O. START
495.3AMH18 0456
0MGOLATERAL AT MH 9 O'CLOCK ACTIVE
0MWL—
2DAGS—
102.9VC—

Properties (5)

additional_info
SC224627
custom_field_two
3
customer
LACSD
datetime
2016-01-12T00:19:58-08:00
sewer_category
GRAVITY
