Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2016, 11:32 AM

  • 18 0469_18 0468_20160111_045130_.mp4

Date
01/11/2016
W/O
547052
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00691
PipeID
P14323
Time
3:32 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3031
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
14
Purpose
Routine Assessment
Project
RFIR_WO_547052_TV18140_JAN2016
Material
NRCP
Shape
Circular
Height
21 in.
Upstream MH
18 0469
Downstream MH
18 0468
Dir. of Survey
Downstream
Length Surveyed
125.7 ft.
Total Length
125.7 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
3
O&M Quick
4131
O&M Rating
10
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 18 0469 to 18 0468
MH: 18 0469MH: 18 0468downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 04690 ft. VC - Vermin Cockroach0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 O'CLOCK ACTIVE2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAGNESIUM H.O. START57.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"119.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"125.6 ft. OBN - Obstacles Construction Debris, 15 %of cross sectional area, from 04 to 08 o'clock - NOT VISIBLE125.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish125.7 ft. MSA - Survey Abandoned - SEVERE DEBRIS PIECE OF PIPE OR PIECE OF MAG125.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish125.7 ft. OBR - Obstacles Rocks, 25 %of cross sectional area, from 04 to 08 o'clock - PIECE OF PIPE OR PIECE OF MAG125.7 ft. MGO - General Observation - MAGNESIUM H.O. FINISH

Observation photos (4)

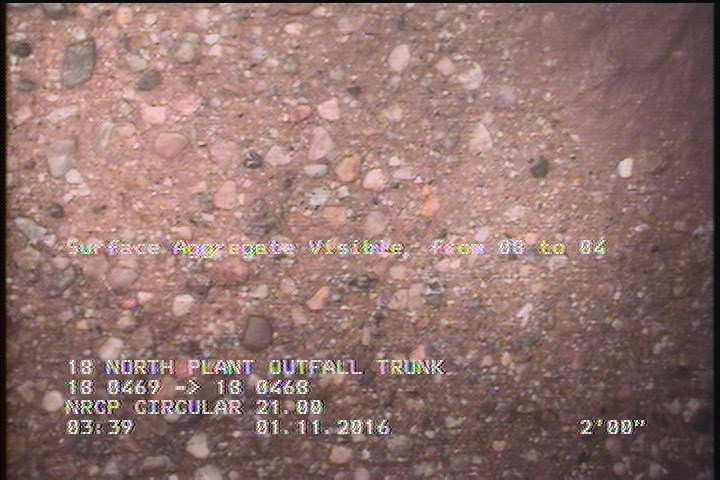

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

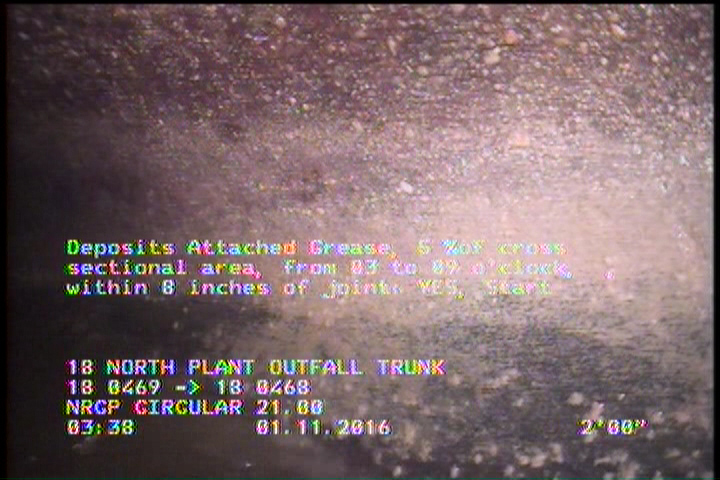

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

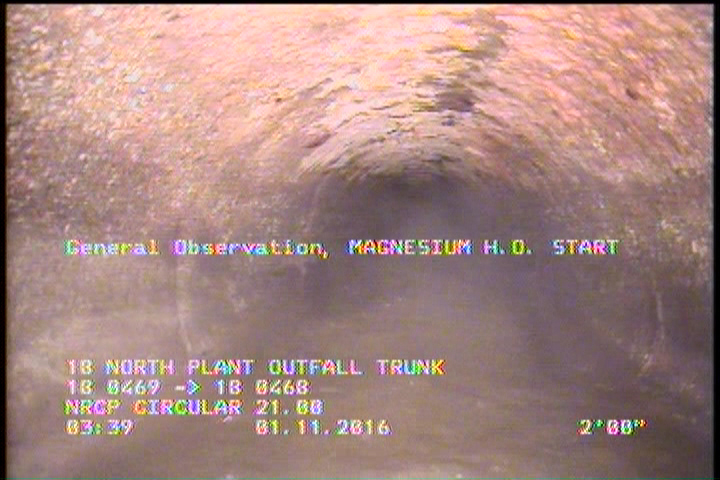

  • General Observation - MAGNESIUM H.O. START

    2 ft. - General Observation - MAGNESIUM H.O. START

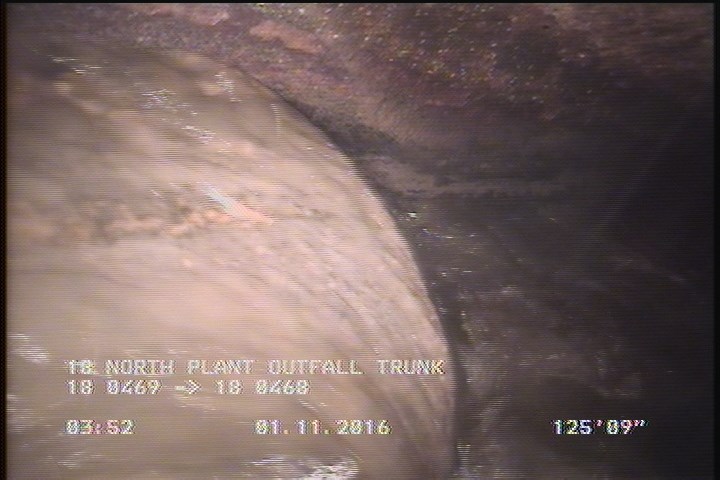

  • Obstacles Rocks, 25 %of cross sectional area, from 04 to 08 o'clock - PIECE OF PIPE OR PIECE OF MAG

    125.7 ft. - Obstacles Rocks, 25 %of cross sectional area, from 04 to 08 o'clock - PIECE OF PIPE OR PIECE OF MAG

All inspections of P14323Work order 547052

Observations (16)

DistanceCodeObservation
0AMH18 0469
0VC—
125.7DAGS—
2SAV—
125.7MSASEVERE DEBRIS PIECE OF PIPE OR PIECE OF MAG
0MWL—
119.4TFA—
2DAGS—
2MGOMAGNESIUM H.O. START
125.7SAV—
0MWM—
125.7OBRPIECE OF PIPE OR PIECE OF MAG
125.7MGOMAGNESIUM H.O. FINISH
125.6OBNNOT VISIBLE
0MGOLATERAL AT MH 9 O'CLOCK ACTIVE
